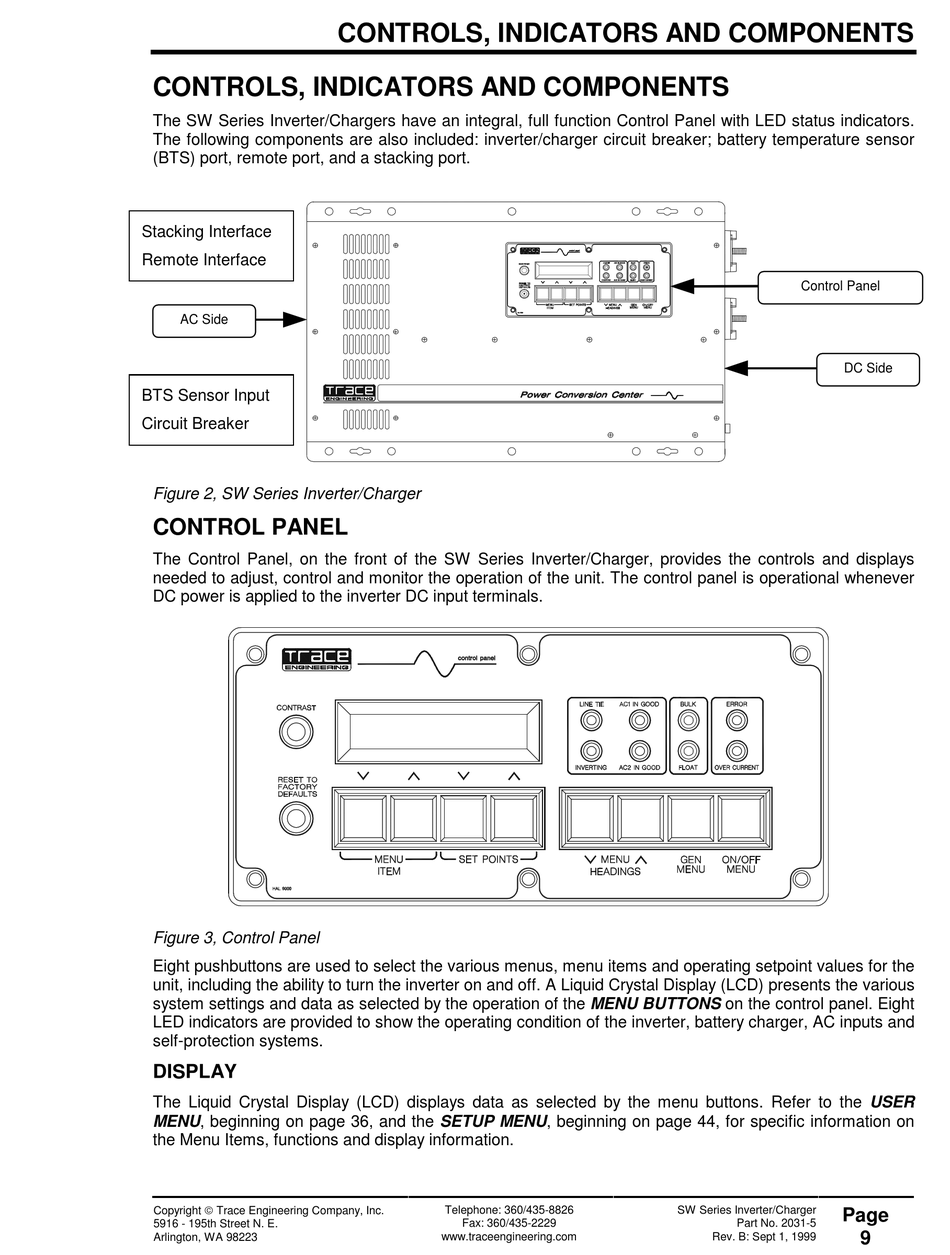

CONTROLS, INDICATORS AND COMPONENTS

The SW Series Inverter/Chargers have an integral, full function Control Panel with LED status indicators.
The following components are also included: inverter/charger circuit breaker; battery temperature sensor
(BTS) port, remote port, and a stacking port.
Stacking Interface
Remote Interface
AC Side
BTS Sensor Input
Circuit Breaker

Figure 2, SW Series Inverter/Charger

CONTROL PANEL

The Control Panel, on the front of the SW Series Inverter/Charger, provides the controls and displays
needed to adjust, control and monitor the operation of the unit. The control panel is operational whenever
DC power is applied to the inverter DC input terminals.

Figure 3, Control Panel

Eight pushbuttons are used to select the various menus, menu items and operating setpoint values for the
unit, including the ability to turn the inverter on and off. A Liquid Crystal Display (LCD) presents the various
system settings and data as selected by the operation of the MENU BUTTONS on the control panel. Eight
LED indicators are provided to show the operating condition of the inverter, battery charger, AC inputs and
self-protection systems.
DISPLAY
The Liquid Crystal Display (LCD) displays data as selected by the menu buttons. Refer to the USER
MENU, beginning on page 36, and the SETUP MENU, beginning on page 44, for specific information on
the Menu Items, functions and display information.
