No AC or DC disconnects are provided as an integral part of this device. Both AC and DC
disconnects must be provided as part of the system installation, if required.
No over-current protection for the battery supply is provided as an integral part of this
device. Over-current protection of the battery cables must be provided as part of the
system installation.
No over-current protection for the AC output wiring is provided as an integral part of this
device. Over-current protection of the AC output wiring must be provided as part of the
system installation.
Caution: To reduce the risk of fire, use only input circuits provided with 20-ampere
branch circuit protection in accordance with the National Electrical Code,
ANSI/NFPA70.
DC GROUNDING INSTRUCTIONS - This device must be connected to a grounded,
permanent wiring system. For most installations, the negative battery conductor must be
bonded to the grounding system at one (and only one) point in the system. All US
installations must comply with national and local codes and ordinances.
AC GROUNDING INSTRUCTIONS The AC system in mobile installations must have the
neutral isolated from the grounding throughout the load distribution circuits.

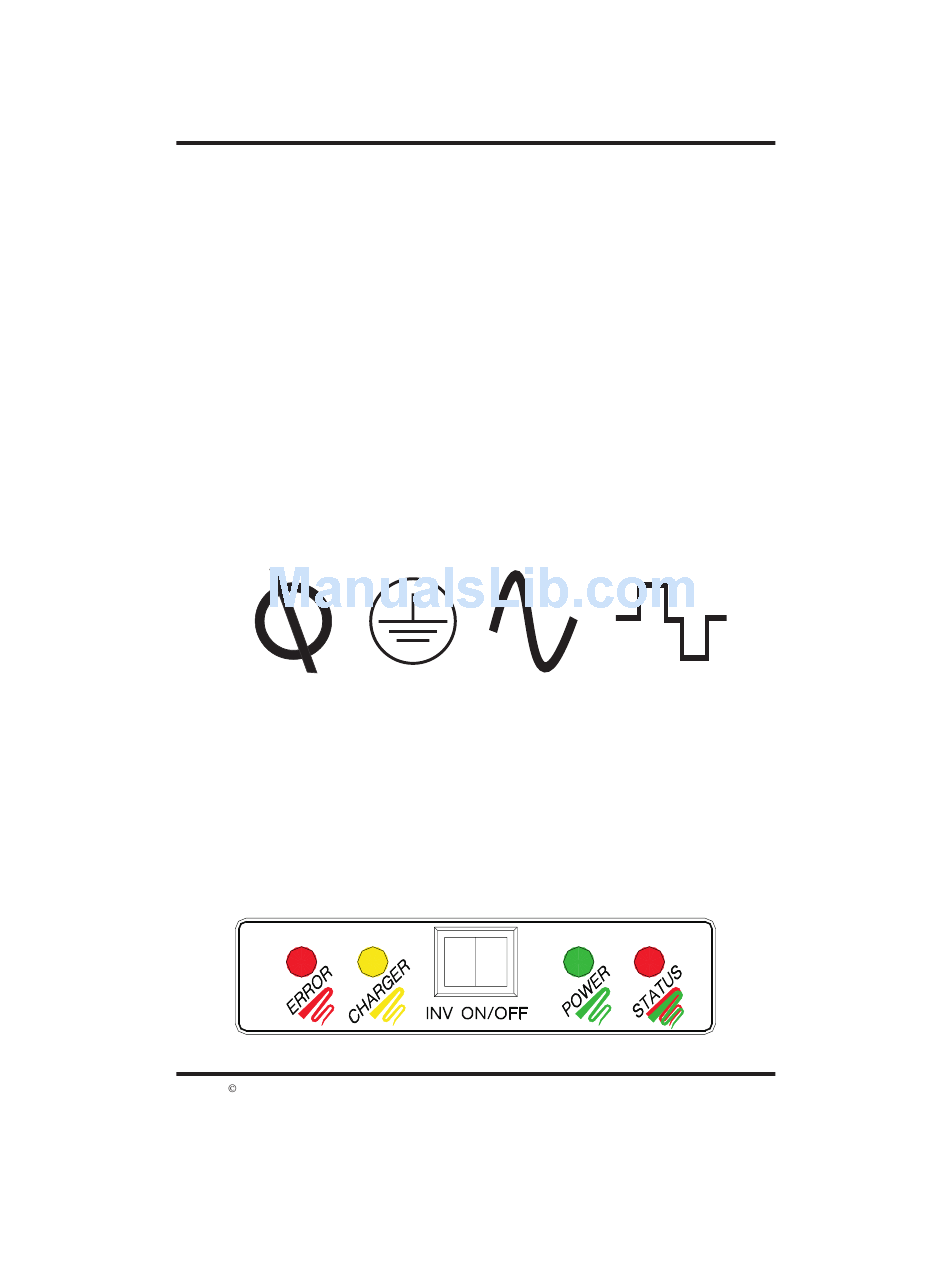

Symbols
Symbols used in this booklet and on the device itself are shown below:
Phase

Controls and Indicators

The TS Series front panel features a power switch, four LEDs, and a fan on some models.
The back panel configuration varies depending upon options.

Front Panel Controls

The TS Series front panel controls and indicators include a momentary push-button Power
switch, a red error status indicator, a yellow charger status indicator, a green power light,
and a white battery status indicator.
Copyright Trace Engineering Co. Inc.
t h
5916 195 Street, NE
Arlington, WA 98223 USA
Chassis Ground AC Input
Tel (360) 435-8826
Fax (360)435-2229
www.traceengineering.com
AC Output
Part Number 3141
Effective Date: July 15, 1998
