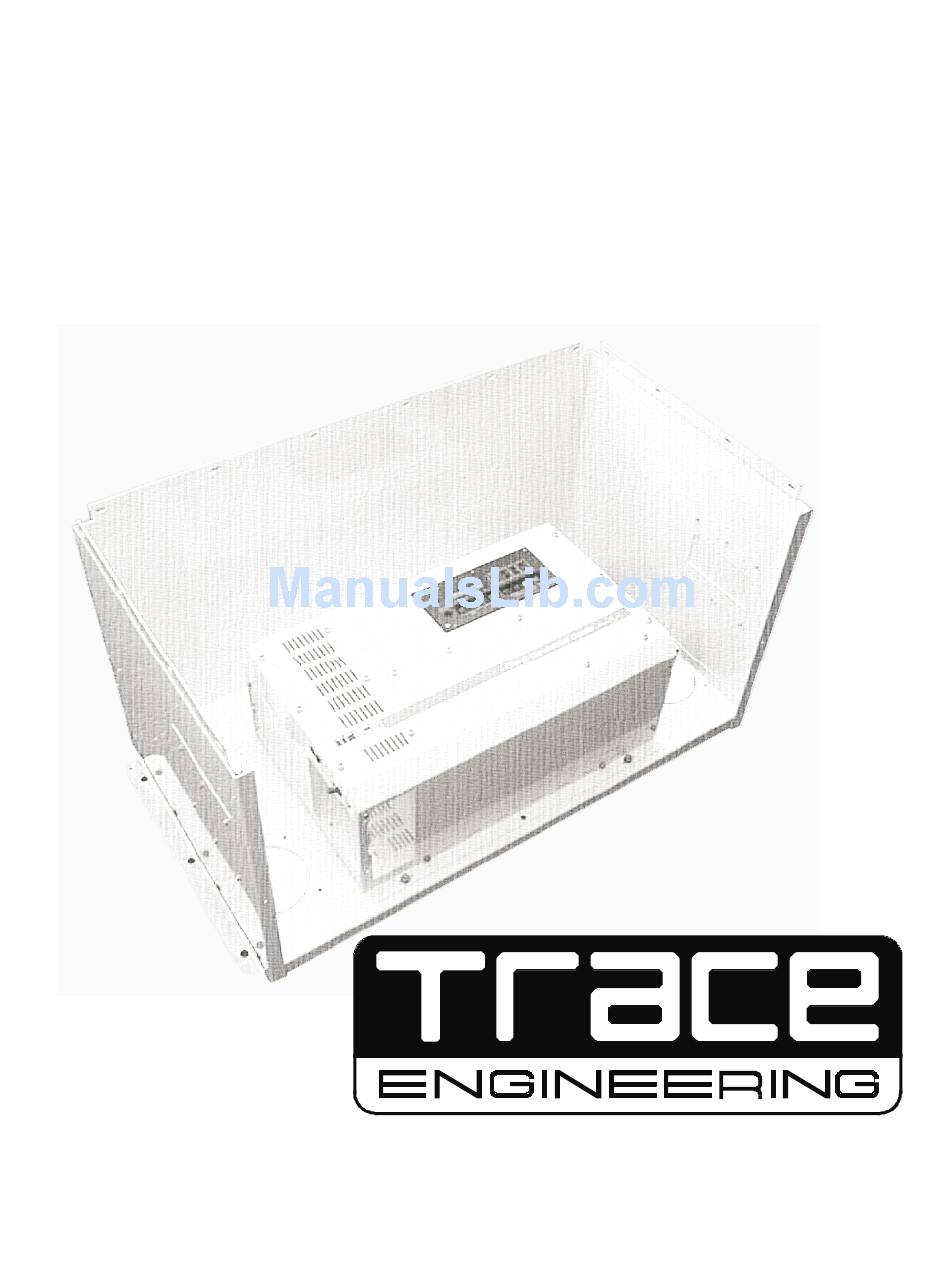

Power Module System
Assembly Instructions
How To Use This Manual (inside cover)
Inverter Systems ...Chapter Four
Electrical Components ... Chapter Five
Cabinet Components ... Chapter Six
5916 195th Street NE, Arlington WA USA 98223 (360) 435-8826
Part Number 3471
