6. Place the assembled fireplace on the middle where it is 30" from the corner and
form a 45 degree angle to each side wall. Move the assembled surround to the
corner, with side panels close to side walls. Move the fireplace to where it can prop-
erly attach the surround.
7. Move the surround away, mark floor or wall behind fireplace for gas line entrance.
Connect inlet gas pipe.
IMPORTANT: Make sure there are no electrical lines where gas piping will
go through floor or wall.
8. Turn up the back of mantel top, the special spring will lock the rear mantel top in
position, then use screws to secure bracket as show in Figure 5 make sure the front
and rear mantel top are in the same level.
9. Move the surround back. Set surround top on top of mounting strips and mantel
front. After properly installing the top, attach surround top to mounting strip using
finishing nails.
10.Push the base to the bottom of surround, close to the right and left sides.
11. Install fireplace per Homeowner's Installation Manual.

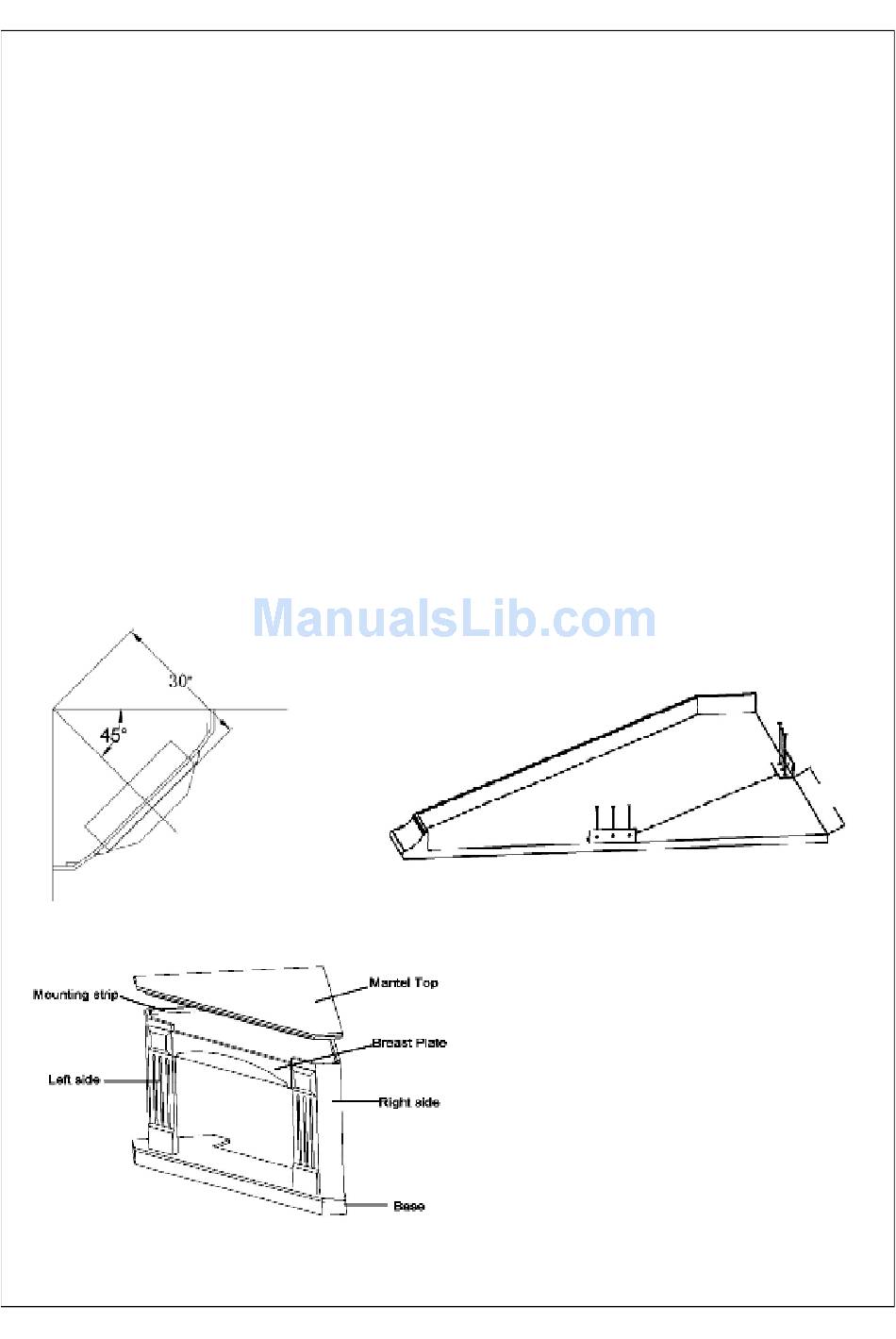

Figure 4
Figure 6
Figure 5
2 3
19 11/16"
