INSTALLATION & WIRING

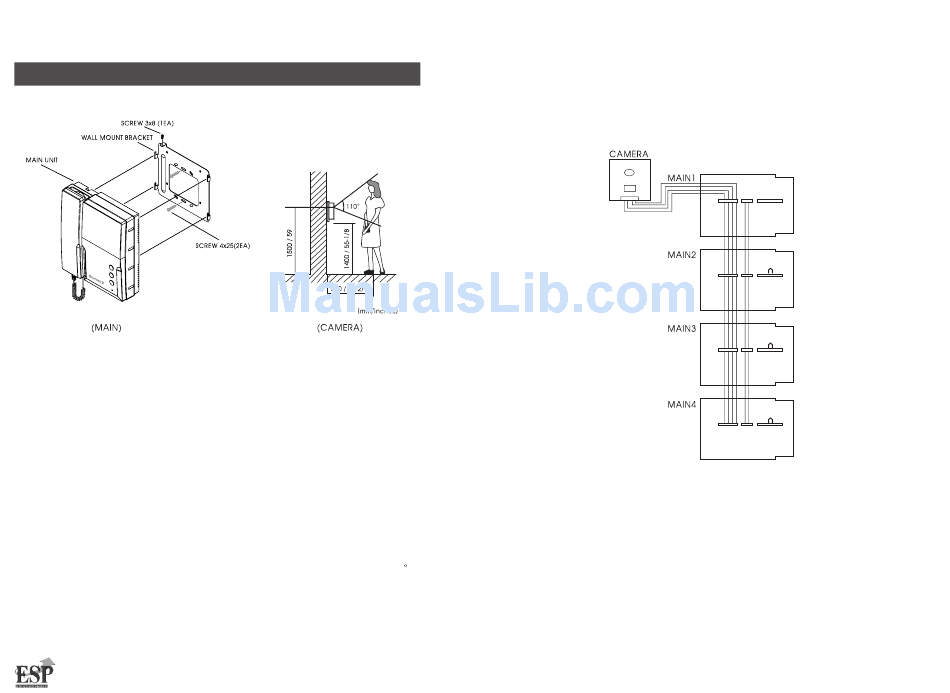

Installation

1. After determining the mounting locations for both the outside camera and
inside monitor
2. At the selected monitor mounting location, attached the mounting bracket
securely to the wall.
Drill a hole in the center area of the bracket just large enough for the electrical
wiring to pull through the hole. Connect the electrical wires from the camera
unit to the monitor wiring terminal
3. Connect the handset cord to the monitor unit.
4. Attach the wired monitor unit to the wall mounting bracket by setting the monitor
over the four bracket hooks and sliding in down, Insert the tiny machine screw into
the hole in the tab at the top of the bracket to hold the monitor in place.
5. Plug the AC power cord into a standard household outlet.
6. Place the Power "On/Off" switch in the "On" position.
Important Mounting Notes:
Do not install the monitor and camera units where they will be exposed to dirt,
direct sunlight(or other strong light), direct moisture, high temperature(over 40 C)
or high humidity conditions. Do not select an installation location subjected to
vibration or pounding.
Select a mounting location close to an AC outlet where it is easy to view the CRT
screen and operate the monitor.
INSTALL & WIRING

Wiring

Connect 3,4 shut pin(Main) when you are not using image memory (not available)
Wiring is not supplied with your Video Doorphone System. Use only AWG #22 wire
(0.65mm) and follow the appropriate wiring diagrams exactly for optimum system
performance and safety.
When planning the initial Enterview 3 System wiring installation, consider future
system expansion. The total wire length for a single camera and monitor system (or
any combination of additional cameras or monitors) must not exceed 50m total
wiring for optimum performance.
