CHASSIS
TO REPLACE FRONT TIRE AND WHEEL
ASSEMBLY
FOR SAFETY: Before Leaving Or
Servicing Machine; Stop On Level
Surface, Set Parking Brake.
1. Raise the seat support and unplug the
battery connectors.
2. Raise the front of the machine and place
jack stands under the frame.

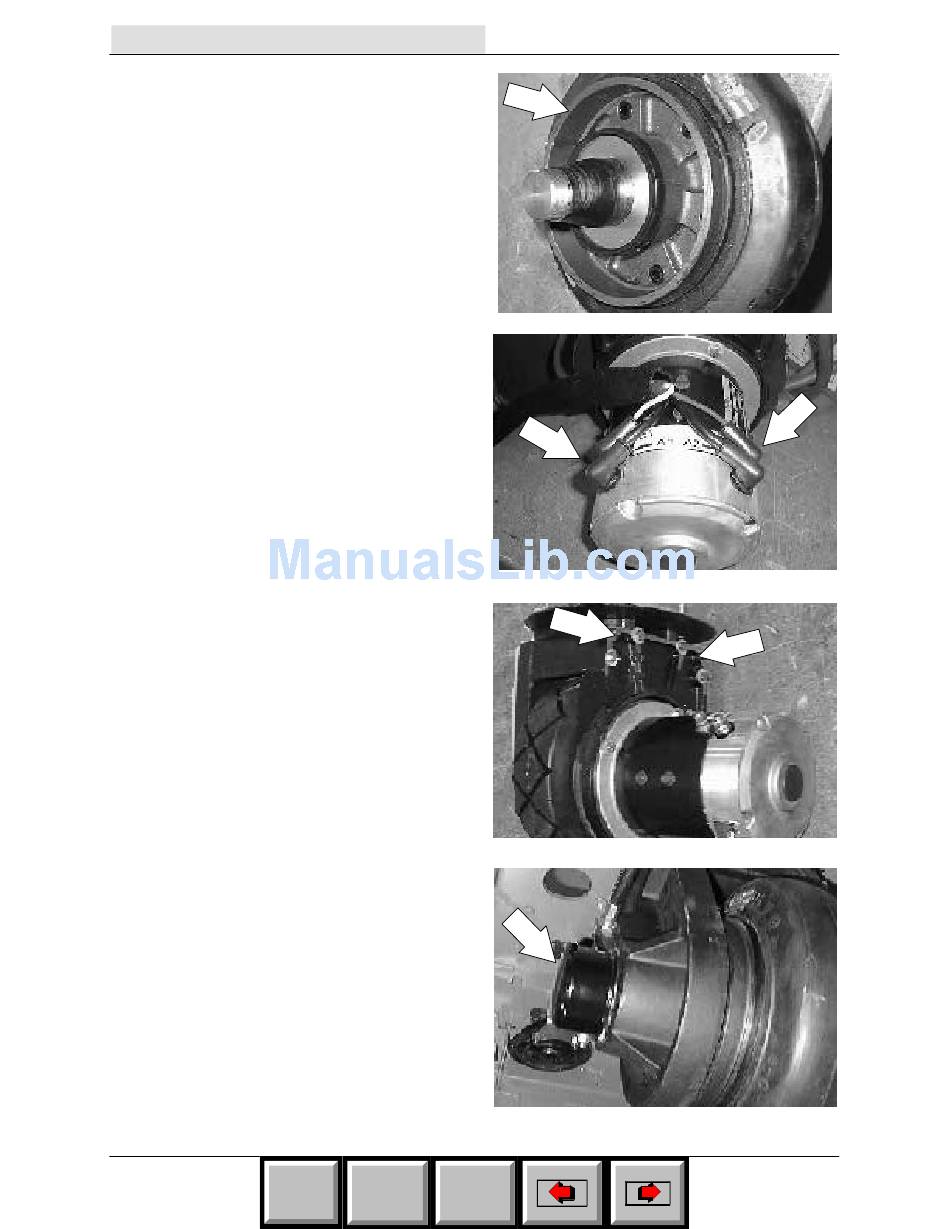

3. Mark and remove the electrical cables
leading to the drive motor.
4. Remove the four hex screws holding the
outer plate, motor, and planetary gear box to
the main drive assembly.
5. Pull the planetary gear box, outer plate, and
motor out of the drive wheel and away from
the drive assembly.
6. Go to the other side of the drive assembly
and remove the hub cap. This will expose
the outer bearing, hex sleeve, and lock bolt.
2-36
