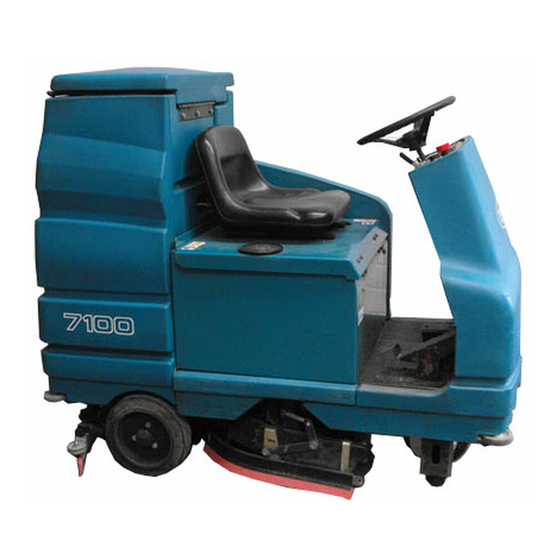

Page 1 7100 Service Manual 330695 Rev. 02 (8−11)
Page 2 This service manual is intended to be an aid for the disassembly and reassembly of your TENNANT Model 7100. The set is organized into Four major groups: General Information, Chassis, Scrubbing, and Electrical. General Information: Safety precautions, machine transport, machine jacking, machine storage, chassis lubrication, machine specifications, and machine maintenance chart.
Page 3: Table Of Contents
BOLT IDENTIFICATION ... . 1−16 THREAD SEALANT AND LOCKING COMPOUNDS ....1−16 7100 330695 (8−11)
Page 4 GENERAL INFORMATION 7100 330695 (8−11)
Page 5: Safety Precautions
This machine is designed solely for scrubbing dirt − Do not allow children to play on or and dust in an indoor environment. Tennant does around machine. not recommend using this machine in any other − Follow mixing and handling environment.
Page 6 380 mm (15 in) or less from the ground. − Set parking brake after machine is loaded. − Block machine tires. − Tie machine down to truck or trailer. 7100 330695 (8−11)
Page 7 BATTERY CHARGING LABEL − LOCATED ON AND ON THE LEFT SIDE OF THE OPERATOR AND UNDERNEATH THE SEAT SUPPORT. COMPARTMENT. FLAMMABLE SPILLS LABEL − LOCATED ON THE SEAT SUPPORT. FOR SAFETY LABEL − LOCATED ON THE SEAT SUPPORT. 353450 7100 330695 (8−11)
Page 8: Specifications
GENERAL MACHINE PERFORMANCE Item Measure Aisle turnaround width 1840 mm Minimum Turning Radius 2527 mm Travel Speed 7.2 Km Maximum rated climb and descent angle with full 4_/7% tanks Maximum rated climb and descent angle with 11_/19% empty tanks 7100 330695 (8−11)
Page 9: Power Type
Location Type Size Front (1) Solid 90 mm wide x 300 mm OD (3.5 in wide x 11.8 in OD) Rear (2) Solid 90 mm wide x 310 mm OD (3.5 in wide x 12.3 in OD) 7100 330695 (8−11)
Page 10: Machine Dimensions
GENERAL INFORMATION 28 in scrub 850 mm (33.5 in) 820 mm (32.25 in) 32 in scrub 1015 mm (40 in) 1370 mm (54 in) 1690 mm 820 mm (66.5 in) (32.25 in) 353475 MACHINE DIMENSIONS 7100 330695 (8−11)
Page 11 GENERAL INFORMATION MAINTENANCE 353450 7100 330695 (10−00)
Page 12: Maintenance Chart
LUBRICANT/FLUID ..Distilled water . . . Special lubricant, Lubriplate EMB grease (TENNANT part no. 01433−1) ..SAE 90 weight gear lubricant NOTE: Also check procedures indicated (H) after the first 50 hours of operation.
Page 13: Pushing, Towing, And Transporting The Machine
FOR SAFETY: When loading machine onto truck or trailer, use winch. Do not drive the machine onto the truck or trailer unless the loading surface is horizontal AND is 380 mm or less from the ground. 7100 330695 (10−00) 1-11...
Page 14 FOR SAFETY: When unloading machine off truck or trailer, use winch. Do not drive the machine off the truck or trailer unless the loading surface is horizontal AND 380 mm or less from the ground. 1-12 7100 330695 (10−00)
Page 15: Machine Jacking
FOR SAFETY: When servicing machine, block machine tires before jacking machine up. FOR SAFETY: When servicing machine, jack machine up at designated locations only. Block machine up with jack stands. 7100 330695 (7−01) 1-13...
Page 16: Storage Information
4. Start the solution flow. Start the power wand solution system and ESt system to circulate the washer solution through the components. 5. The washer solution does not need to be drained from the solution tank. 1-14 7100 330695 (10−00)
Page 17: Hardware Information
They include the following: 0.75 in 215−280 313−407 Locktite 515 sealant − gasket forming (291−380) (424−552) material. TENNANT Part No. 75567,15 oz 1.00 in 500−650 757−984 (440 ml) cartridge. (678−881) (1026−1334) Locktite 242 blue − medium strength thread NOTE: Decrease torque by 20% when using a locking compound.
Page 18 GENERAL INFORMATION 1-16 7100 330695 (10−00)
Page 19 ..... . . 2−44 TO REPLACE FRONT WHEEL HOUSING CONE BEARING ......2−49 7100 330695 (8−11)
Page 20 CHASSIS 7100 330695 (8−11)
Page 21 CHASSIS INTRODUCTION This section includes information on the main chassis related components for example the front drive, steering, brakes and tires. 7100 330695 (8−11)
Page 22: Brakes And Tires 2−4
3. Remove the cotter pin from the brake lever pin. Move the brake arm to the next hole. Reinstall the cotter pin. Test the brake pedal for correct movement (less than an inch) to activate the brake caliper. 7100 330695 (8−11)
Page 23: To Replace Brake Pads
Make sure to reinstall the compression springs. 5. Reinstall the brake caliper assembly onto the drive assembly. Reinstall the two hex screws and tighten to 18 − 24 Nm (15 − 20 ft lb.). 7100 330695 (8−11)
Page 24: To Disassemble Service/Parking
NOTE: Check periodically that the working area of the break is clean from dust and dirt. NOTE: Brake must be changed when it reaches a thickness of 2 mm. 7100 330695 (8−11)
Page 25: Rear Tires And Wheels
NOTE: Do not raise both rear wheels off the floor at the same time. The machine will become unstable because of the single front tire. 2. Remove the rubber boot covering the wheel bearing. 7100 330695 (8−11)
Page 26 4. Remove the three nuts holding the tire and wheel to the hub. Remove the tire and wheel from the hub. 5. Use a hammer and punch to remove the existing hub bearings. 6. Use an arbor press to install the new hub bearings. 7100 330695 (8−11)
Page 27 Reinstall the retaining ring onto the axle shaft. 9. Reinstall the rubber boot onto the wheel hub. 10. Remove the jack stand and lower the machine. Check the new wheel bearings for proper operation. 7100 330695 (8−11)
Page 28: Front Drive Wheel, And Wheel
Surface, place blocks in front and back of the rear tires. 1. Jack up the front of the machine at the jack point. Install jack stands under the machine frame. 2. Raise the seat support and engage the prop rod. 2-10 7100 330695 (8−11)
Page 29 5. Locate the master link on the steering chain. Remove the master link from the steering chain. Remove the steering chain from the machine. 6. Remove the power wire cover from the side of the drive assembly. 7100 330695 (8−11) 2-11...
Page 30 Remove the clevis pin and tension spring from the brake pedal. 10. Pull the brake pedal up and disconnect the clevis end of the short brake rod where it attaches to the brake pedal assembly. 2-12 7100 330695 (8−11)
Page 31 11. Support the front drive assembly with a jack or blocks. Remove the four button head screws holding the front drive assembly in the machine. 12. Lower the drive assembly down and out of the machine. 7100 330695 (8−11) 2-13...
Page 32: To Install Front Drive Assembly 2−14
64 − 83 Nm (47 − 61 ft lb). Make sure the brake assembly is on the right side of the machine. 3. Reinstall the steering chain onto both steering sprockets. Reinstall the master link. 2-14 7100 330695 (8−11)
Page 33 37 − 48 Nm (26 − 34 ft lb). 5. Reconnect the short brake rod to the brake pedal. 6. Reinstall the brake pedal and clevis pin. 7. Route the drive motor wire onto the drive assembly. 7100 330695 (8−11) 2-15...
Page 34 8. Reconnect the wires to the drive motor. 9. Reinstall the wire clamp and position the wires into the plastic sleeve. 10. Reinstall the drive motor wire cover. 11. Reconnect the battery connector to the machine. 2-16 7100 330695 (8−11)
Page 35 CHASSIS 12. Close the seat support. 13. Lower the machine to the floor. 14. Operate the machine. Check the front drive for proper operation. 7100 330695 (8−11) 2-17...
Page 36: To Replace Front Tire
2. Remove the eight hex screws holding the steering weldment to the top of the drive assembly. Remove the steering weldment from the top of the drive assembly. 3. Position the drive assembly (gearbox end facing down) onto a work bench. 2-18 7100 330695 (8−11)
Page 37 This will allow proper re−assembly. 6. Remove the motor armature cap from the drive assembly. You may have to pry the cap off with a screw driver. 7. Set the motor armature cap to the side for now. 7100 330695 (8−11) 2-19...
Page 38 8. Make sure the wavy washer is in position inside the motor brush housing. 9. Remove the eight M6 cap screws holding the wheel to the gear box assembly. 10. Lift up on the wheel. 11. Remove the wheel from the gear box. 2-20 7100 330695 (8−11)
Page 39 8 − 10 Nm (6 − 8 ft lb). 15. Before the motor end cap can be reinstalled, the four motor brushes must be removed. First, remove the black, plastic cap by turning and pulling out. 7100 330695 (8−11) 2-21...
Page 40 18. Position the motor cap housing onto the wheel/armature assembly. Make sure to line up the line marked on the housing. 19. Reinstall the eight M5 cap screws. Tighten to 443 − 575Ncm (40 − 50 inch lbs). 2-22 7100 330695 (8−11)
Page 41 Tighten to 18 − 24 Nm (15 − 20 ft lb). 22. Reinstall the front drive assembly into the machine. See TO INSTALL FRONT DRIVE ASSEMBLY instructions in this section. 7100 330695 (8−11) 2-23...
Page 42: To Adjust Steering Chain
Loosen the two screws. 3. Turn the steering wheel all the way to the left and then to the right. Find the point in the rotation where the steering chain is the most tight. 2-24 7100 330695 (8−11)
Page 43 Tighten the two hex screws to 37 − 48 Nm (26 − 34 ft lb). 5. Remove the jack stands and lower the machine to the floor. Operate the machine and check the steering chain for proper operation. 7100 330695 (8−11) 2-25...
Page 44: To Replace Steering Chain
2. Turn the steering wheel all the way to the left. 3. Go to the operators compartment and locate the two hex screws holding the steering bearing housing to the machine frame. Loosen the two screws and push the bearing housing back in the slots. 2-26 7100 330695 (8−11)
Page 45 Install a new master link in the new chain. 7. Turn the steering wheel all the way to the left and then to the right. Find the point in the rotation where the steering chain is the most tight. 7100 330695 (8−11) 2-27...
Page 46 Tighten the two hex screws to 37 − 48 Nm (26 − 34 ft lb). 9. Remove the jack stands and lower the machine to the floor. Operate the machine and check the steering chain for proper operation. 2-28 7100 330695 (8−11)
Page 47: To Replace Steering Housing Bearings
Install jack stands under the machine frame. 2. Turn the steering wheel all the way to the left. 3. Go to the operators compartment and locate the steering U−joint. Loosen the two set screws on the top of the steering U−joint. 7100 330695 (8−11) 2-29...
Page 48 Push the bearing housing back in the slots. 6. Go under the machine and locate the small steering chain sprocket. 7. Locate the master link on the steering chain. Remove the master link and steering chain from the small steering sprocket. 2-30 7100 330695 (8−11)
Page 49 11. Use an arbor press to press the short steering shaft and two bearings out of the housing. Discard the bearings. Retain the short shaft. Note the orientation of the shaft in the housing. 7100 330695 (8−11) 2-31...
Page 50 14. Reinstall the small steering sprocket and woodruff key on the bottom of the steering housing. Tighten the set screws tight. 15. Reinstall the U−joint and square key on the top of the steering housing. Tighten the set screws tight. 2-32 7100 330695 (8−11)
Page 51 Reinstall the master link. 19. Turn the steering wheel all the way to the left and then to the right. Find the point in the rotation where the steering chain is the most tight. 7100 330695 (8−11) 2-33...
Page 52 Tighten the two hex screws to 37 − 48 Nm (26 − 34 ft lb). 21. Remove the jack stands and lower the machine to the floor. Operate the machine and check the steering chain for proper operation. 2-34 7100 330695 (8−11)
Page 53: To Replace Steering U−Joint
2. Go to the operators compartment and locate the steering U−joint. Loosen the two set screws on the top of the steering U−joint. 3. Pull the steering wheel and long steering shaft up and out of the top of the steering U−joint. 7100 330695 (8−11) 2-35...
Page 54 6. Position the long steering shaft and steering wheel into the top of the steering U−joint. Tighten the set screws tight. 7. Operate the machine and check the steering U−joint for proper operation. 2-36 7100 330695 (8−11)
Page 55: To Replace Small Steering Sprocket
3. Go to the operators compartment and locate the two hex screws holding the steering bearing housing to the machine frame. Loosen the two screws and push the bearing housing back in the slots. This will loosen the steering chain. 7100 330695 (8−11) 2-37...
Page 56 7. Install the new small sprocket and woodruff key onto the steering shaft. The teeth of the new sprocket face down. Position the sprocket in the same location as the old one. Tighten the two set screws tight. 2-38 7100 330695 (8−11)
Page 57 Tighten the two hex screws to 37 − 48 Nm (26 − 34 ft lb). 11. Remove the jack stands and lower the machine to the floor. Operate the machine and check the steering for proper operation. 7100 330695 (8−11) 2-39...
Page 58: To Replace Large Steering Sprocket
3. Go to the operators compartment and locate the two hex screws holding the steering bearing housing to the machine frame. Loosen the two screws and push the bearing housing back in the slots. This will loosen the steering chain. 2-40 7100 330695 (8−11)
Page 59 6. Remove the four hex screws holding the front drive pivot assembly to the upper drive casting. Note the location of the spacers. 7. Remove the pivot assembly and large sprocket from the upper casting. 7100 330695 (8−11) 2-41...
Page 60 Tighten to 37 − 48 Nm (26 − 34 ft lb). 10. Reinstall the front drive assembly. See TO INSTALL FRONT DRIVE ASSEMBLY instructions in this section. 11. Reinstall the steering chain onto both steering sprockets. Reinstall the master link. 2-42 7100 330695 (8−11)
Page 61 Tighten the two hex screws to 37 − 48 Nm (26 − 34 ft lb). 14. Remove the jack stands and lower the machine to the floor. Operate the machine and check the steering for proper operation. 7100 330695 (8−11) 2-43...
Page 62: To Replace Front Wheel Pivot
3. Go to the operators compartment and locate the two hex screws holding the steering bearing housing to the machine frame. Loosen the two screws and push the bearing housing back in the slots. This will loosen the steering chain. 2-44 7100 330695 (8−11)
Page 63 Note the location of the spacers. 7. Remove the small thread roller screw holding the castle nut to the pivot shaft. Remove the castle nut and flat washer. 7100 330695 (8−11) 2-45...
Page 64 Install the second thrust washer on top of the needle bearing. 13. Reinstall the swivel plate onto the swivel plate weldment. Make sure the rubber seal ring is in place on the swivel plate before installing. 2-46 7100 330695 (8−11)
Page 65 Use blue loctite 242 on the threads. Tighten to 37 − 48 Nm (26 − 34 ft lb). 17. Reinstall the front drive assembly. See TO INSTALL FRONT DRIVE ASSEMBLY instructions in this section. 7100 330695 (8−11) 2-47...
Page 66 Tighten the two hex screws to 37 − 48 Nm (26 − 34 ft lb). 21. Remove the jack stands and lower the machine to the floor. Operate the machine and check the steering for proper operation. 2-48 7100 330695 (8−11)
Page 67 3. Go to the operators compartment and locate the two hex screws holding the steering bearing housing to the machine frame. Loosen the two screws and push the bearing housing back in the slots. This will loosen the steering chain. 7100 330695 (8−11) 2-49...
Page 68 Note the location of the spacers. 7. Remove the small thread roller screw holding the castle nut to the pivot shaft. Remove the castle nut and flat washer. 2-50 7100 330695 (8−11)
Page 69 10. Reinstall the swivel plate onto the swivel plate weldment. Make sure the rubber seal ring is in place on the swivel plate before installing. 11. Reinstall the cone bearing in the swivel plate. Grease the bearing if needed. 7100 330695 (8−11) 2-51...
Page 70 Tighten to 37 − 48 Nm (26 − 34 ft lb). 14. Reinstall the front drive assembly. See TO INSTALL FRONT DRIVE ASSEMBLY instructions in this section. 15. Reinstall the steering chain onto both steering sprockets. Reinstall the master link. 2-52 7100 330695 (8−11)
Page 71 Tighten the two hex screws to 37 − 48 Nm (26 − 34 ft lb). 18. Remove the jack stands and lower the machine to the floor. Operate the machine and check the steering for proper operation. 7100 330695 (8−11) 2-53...
Page 72 CHASSIS 2-54 7100 330695 (8−11)
Page 73 ......3−74 SQUEEGEE WHEEL CAMS ..3−74 SQUEEGEE LEVELING KNOB ..3−74 7100 330695 (7−01)
Page 74 SCRUBBING 7100 330695 (7−01)
Page 75: Introduction
The brushes scrub the floor. As the machine moves forward the rear squeegee wipes the dirty solution off the floor, which is then picked up and drawn into the recovery tank by the vacuum fan. 7100 330695 (10−00)
Page 76: Solution Tank
F (54_ C) or use steam to clean the tank because damage may occur. A tank drain hose has been provided to allow the tank to be drained for cleaning. The solution tanks with ESt should be drained and cleaned after every work shift. 7100 330695 (10−00)
Page 77: To Drain And Clean Solution Tank With Est
2. Raise the scrub head and rear squeegee. 3. Stop the machine next to a floor drain. 4. Shut off the machine and set the parking brake. FOR SAFETY: Before Leaving Or Servicing Machine; Stop On Level Surface, Set Parking Brake. 7100 330695 (10−00)
Page 78 8. Spray the inside of the solution and recovery tanks with a strong blast of warm water. Do not use water hotter than 130_ F (54_ C) or use steam to clean the tank because damage may occur. Remove the ESt outlet filter, clean, reinstall. 7100 330695 (10−00)
Page 79 SCRUBBING 9. Check the vacuum fan filter on top of the recovery tank. Clean or replace if necessary. 10. Close the tank cover. 11. Replace the drain hose in the tank. 7100 330695 (10−00)
Page 80: To Remove Solution Tank
2. Raise the seat support and engage the prop rod. 3. Disconnect the battery connector from the machine. 4. Remove the battery cables leading to the middle battery on the left side of the machine. Remove the middle, left battery from the machine. 7100 330695 (10−00)
Page 81 8. Remove the three hex screws holding the vacuum fan assembly to the solution and recovery tanks. Lift the vacuum fan up and disconnect the electrical plug from the main harness. remove the vacuum fan from the machine. 7100 330695 (10−00)
Page 82 10. Remove the clamp holding the wire harness to the side of the solution tank. 11. If the machine is equipped with the ES option−−disconnect the float switch. 12. Remove the hex screws holding the “L” bracket to the solution and recovery tanks. 3-10 7100 330695 (10−00)
Page 83 Loosen this clamp and remove the hose from the solution tank. 16. The solution tank can now be removed from the machine. 7100 330695 (10−00) 3-11...
Page 84: To Install Solution Tank
Tighten the screws to 18 − 24 Nm (15 − 20 ft lb). 3. Connect the hose coming from the solution tank to the hose leading to the water valve. Tighten the worm drive clamp. 3-12 7100 330695 (10−00)
Page 85 5. Reinstall the check valve and hose in the solution tank. If the machine is equipped with the ES option−−reconnect the float switch. Reinstall the clamp holding the wire harness to the side of the solution tank. 7100 330695 (10−00) 3-13...
Page 86 9. Close the tank cover and engage the cover latches. 10. Push the front, left battery forward in the battery tray. 11. Reinstall the battery in the left, middle space in the battery tray. Reconnect the two battery cables. 3-14 7100 330695 (10−00)
Page 87 12. Reconnect the battery connector. 13. Close the seat support. 14. Reinstall the drip tray. Tighten the two hex screws to 18 − 24 Nm (15 − 20 ft lb). 15. Replace both drain hoses in the tanks. 7100 330695 (10−00) 3-15...
Page 88 SCRUBBING 16. Start the machine. Fill the solution tank with water and check the hose connections for leaks. 3-16 7100 330695 (10−00)
Page 89: Recovery Tank
The recovery tank should be drained and cleaned after the solution tank is empty and whenever the float switch stops the vacuum fan or the recovery full light comes on. 7100 330695 (10−00) 3-17...
Page 90: To Drain And Clean Recovery Tank
4. Shut off the machine and set the parking brake. FOR SAFETY: Before Leaving Or Servicing Machine; Stop On Level Surface, Set Parking Brake. 5. Remove the drain hose cap from the access caps at the rear of the solution tank. 3-18 7100 330695 (10−00)
Page 91 130_ F (54_ C) or use steam to clean the tank because damage may occur. Remove the ESt outlet filter, clean, reinstall. 9. Check the vacuum fan filter on top of the recovery tank. Clean or replace if necessary. 7100 330695 (10−00) 3-19...
Page 92 SCRUBBING 10. Close the tank cover. 11. Reinstall the drain hose in the tank. 3-20 7100 330695 (10−00)
Page 93: To Remove Recovery Tank
2. Raise the seat support and engage the prop rod. 3. Disconnect the battery connector from the machine. 4. Remove the battery cables leading to the middle battery on the right side of the machine. Remove the middle, right battery from the machine. 7100 330695 (10−00) 3-21...
Page 94 6. Remove the three hex screws holding the recovery tank to the machine frame. 7. Open the tank cover. 8. Remove the hex screw from the end of the cover cable where it attaches at the vacuum fan mount plate. 3-22 7100 330695 (10−00)
Page 95 11. Remove the squeegee vacuum hose from the recovery tank. 12. Disconnect the recovery tank level switch from the main harness. 7100 330695 (10−00) 3-23...
Page 96 15. Remove both drain hoses from the tanks. 16. Remove the hardware holding the drip tray to the back of the tanks. Remove the drip tray from the machine. 3-24 7100 330695 (10−00)
Page 97 SCRUBBING 17. Pull the recovery tank up and out of the machine frame. 7100 330695 (10−00) 3-25...
Page 98: To Install Recovery Tank
Tighten the screws to 18 − 24 Nm (15 − 20 ft lb). 3. Reinstall the “L” bracket to the solution and recovery tanks. Tighten the screws to 18 − 24 Nm (15 − 20 ft lb). 3-26 7100 330695 (10−00)
Page 99 7. Reinstall the vacuum fan assembly. Connect the vacuum fan to the main harness before installing the hardware. Tighten the three hex screws to 18 − 24 Nm (15 − 20 ft lb). 7100 330695 (10−00) 3-27...
Page 100 Reinstall the hex screw and tighten to 18 − 24 Nm (15 − 20 ft lb). 10. Close the tank cover and engage the cover latches. 11. Push the right, rear battery backward in the battery tray. 3-28 7100 330695 (10−00)
Page 101 Reconnect the two battery cables. 13. Reconnect the battery connector. 14. Close the seat support. 15. Reinstall the drip tray. Tighten the two hex screws to 18 − 24 Nm (15 − 20 ft lb). 7100 330695 (10−00) 3-29...
Page 102 SCRUBBING 16. Replace both drain hoses in the tanks. 17. Start the machine. Fill the recovery tank with water and check the hose connections for leaks. 3-30 7100 330695 (10−00)
Page 103 SCRUBBING SCRUB HEAD The model 7100 can be equipped with either a cylindrical or a disc style scrub head. The scrub head houses the scrub brushes and their drive mechanisms. The scrub head adjustments are factory set and should not be changed unless scrub head parts are damaged or replaced.
Page 104: Scrub Head Links
The two scrub head links allow the scrub head to follow the contour of the floor. The links have a pivot point on each end. The links need no regular lubrication. 3-32 7100 330695 (10−00)
Page 105: To Replace Scrub Head Links 3−33
NOTE: Use the front frame hole for the cylindrical scrub head and the rear frame mount hole for the disc scrub head. 5. Start the machine and raise the scrub head. Check the scrub head links for proper operation. 7100 330695 (10−00) 3-33...
Page 106: To Remove Disc Scrub Head
Surface, Set Parking Brake. 2. Disconnect the water line leading from the shut−off valve to the scrub head. 3. Disconnect the scrub brush motors shunt from the main electrical harness. Mark the connectors for proper re−assembly. 3-34 7100 330695 (10−00)
Page 107 6. Jack up the front of the machine far enough to slide the scrub head out. Install jack stands under the machine frame. 7. The scrub head can now be pulled out from under the machine frame. 7100 330695 (10−00) 3-35...
Page 108: To Install Disc Scrub Head
3. Position the scrub head as close as possible to the center. Remove the jack stands and lower the machine until the clevis pins can be reinstalled in the front of the scrub head lift bracket and the bottom of the lift actuator. 3-36 7100 330695 (10−00)
Page 109 7. Start the machine and raise the scrub head. Operate the machine and check the scrub head for proper operation. Check the scrub brushes for proper rotation (the brushes should rotate toward each other at the front of the scrub head). 7100 330695 (10−00) 3-37...
Page 110: To Remove Cylindrical Scrub Head
Surface, Set Parking Brake. 2. Disconnect the water line leading from the shut off valve to the scrub head. 3. Disconnect the two scrub brush motors from the main electrical harness. Mark the connectors for proper re−assembly. 3-38 7100 330695 (10−00)
Page 111 6. Jack up the front of the machine far enough to slide the scrub head out. Install jack stands under the machine frame. 7. The scrub head can now be pulled out from under the machine frame. 7100 330695 (10−00) 3-39...
Page 112: To Install Cylindrical Scrub Head
Remove the jack stands and lower the machine until the clevis pins can be reinstalled in the front of the scrub head lift bracket and the bottom of the lift actuator. ReInstall the clevis pin and cotter pin. 3-40 7100 330695 (10−00)
Page 113 Check the scrub brushes for pattern and proper rotation (the brushes should rotate away from each other at the top of the scrub head). See TO CHECK AND ADJUST CYLINDRICAL BRUSH PATTERN instructions. 7100 330695 (10−00) 3-41...
Page 114: Disc Scrub Head Skirts
1. Start the machine and lower the scrub head to the floor. Shut off the key. FOR SAFETY: Before Leaving Or Servicing Machine; Stop On Level Surface, Set Parking Brake. 2. Loosen the screws holding the retainer and skirt to the scrub head frame. 3-42 7100 330695 (10−00)
Page 115 3. Position the up or down as needed to achieve 1/8 to 1/4 inch clearance from the bottom of the skirt to the floor. 4. Re−tighten the retainer screws. Operate the machine and check the scrub head skirts for proper water spray control. 7100 330695 (10−00) 3-43...
Page 116: To Replace Disc Scrub Head Skirts
3. Position the new skirt and existing retainer on the scrub head. Adjust the skirt and tighten the retainer screws. See TO ADJUST DISC SCRUB HEAD SKIRTS instructions. 4. Operate the machine and check the scrub head skirts for proper water spray control. 3-44 7100 330695 (10−00)
Page 117: Cylindrical Brush Head Debris Tray
FOR SAFETY: Before Leaving Or Servicing Machine; Stop On Level Surface, Set Parking Brake. 2. Go to the right side of the machine. Locate the scrub head side squeegee. Pull the hair pin out of the squeegee lock pin. 7100 330695 (10−00) 3-45...
Page 118 Pivot the debris tray far enough to allow the rubber skirt to clear the scrub head. 5. Pull the debris tray straight out to the right until it is free of the scrub head lip. Empty the debris tray. 3-46 7100 330695 (10−00)
Page 119: To Install Debris Tray
3. Swing the right hand side squeegee back to the side of the scrub head. Make sure the lock pin is positioned in the mount hole. Reinstall the hair pin. 4. Start the machine and raise the scrub head. 7100 330695 (10−00) 3-47...
Page 120: To Replace Debris Tray Skirt 3−48
3. Position the new debris tray skirt and existing retainer on the top lip of the tray. 4. Reinstall the hardware and hand tighten lightly. 5. Reinstall the debris tray in the machine. See TO INSTALL DEBRIS TRAY instructions. 3-48 7100 330695 (10−00)
Page 121: Disc Scrub Brushes
1. Make sure the scrub head is in the raised position. FOR SAFETY: Before Leaving Or Servicing Machine; Stop On Level Surface, Set Parking Brake. 2. Turn the brush until you can see the brush spring clip. 7100 330695 (10−00) 3-49...
Page 122 6. While pressing the brush spring clip together with your thumb and index finger, lift the scrub brush onto the drive plug. 7. Check to make sure the brush is securely mounted on the brush drive hub. 8. Repeat for the other brush. 3-50 7100 330695 (10−00)
Page 123: Cylindrical Scrub Brushes
FOR SAFETY: Before Leaving Or Servicing Machine; Stop On Level Surface, Set Parking Brake. 2. Remove the cotter pin that holds the side squeegee in place. Swing the squeegee away from the scrub head. 7100 330695 (10−00) 3-51...
Page 124 4. Pull the old brush out of the scrub head. 5. Position the brush with the double row end towards you. Guide the new brush onto the drive hub. 6. Insert the Idler plug (on the inside of the idler door), into the brush. 3-52 7100 330695 (10−00)
Page 125 The idler door of that side of the scrub head is stamped with the same letter. Make sure the letter on the door matches the letter on the scrub head when replacing the doors. 7100 330695 (10−00) 3-53...
Page 126: To Check And Adjust Cylindrical Brush Pattern
A polish mark will remain on the floor. 4. Raise the scrub head and move the machine away from the chalked area. Turn the machine power off. 3-54 7100 330695 (10−00)
Page 127 2. While holding the flat end of the idler shaft with a wrench, loosen the mounting screw on the outside of the idler door. 7100 330695 (10−00) 3-55...
Page 128 Level the scrub head by turning the scrub head links. Both scrub head links should be adjusted equally. Check the brush patterns again and readjust as necessary until both patterns are the same. 3-56 7100 330695 (10−00)
Page 129: Cylindrical Brush Drive Belt
1. Start the machine and lower the scrub head near the floor. Shut off the key. FOR SAFETY: Before Leaving Or Servicing Machine; Stop On Level Surface, Set Parking Brake. 2. Remove the scrub brushes. See TO REPLACE CYLINDRICAL SCRUB BRUSHES instructions. 7100 330695 (10−00) 3-57...
Page 130 6. Remove the drive plug from the scrub head. Use a wrench on the flats of the hub shaft. Turn the shaft counter−clockwise. NOTE: Make sure the scrub head is slightly off the floor before attempting to remove the drive plug rubber seal. 3-58 7100 330695 (10−00)
Page 131 10. Position the brush drive plug and shaft into the belt area. Install the drive belt over the drive plug. Turn the shaft clockwise to tighten. Use loctite blue 242 on the threads of the shaft before installing. 7100 330695 (10−00) 3-59...
Page 132 Tighten the two motor pivot screws to 18 − 24 Nm (15 − 20 ft lb). Re−check the belt tension. 14. Reinstall the belt cover. Tighten the screws to 11 − 14 Nm (7 − 10 ft lb). 3-60 7100 330695 (10−00)
Page 133 SCRUBBING 15. Reinstall the scrub brushes. See TO REPLACE CYLINDRICAL SCRUB BRUSHES instructions. 16. Operate the machine and check the scrub brushes for proper operation. 7100 330695 (10−00) 3-61...
Page 134: To Replace Brush Drive Plug
1. Remove the scrub brush drive plug. See TO REPLACE BRUSH DRIVE BELT instructions in this section. 2. Remove the retainer ring from the drive plug shaft. 3. Use an arbor press to remove the shaft from the drive plug. 3-62 7100 330695 (10−00)
Page 135 7. Reinstall the retainer ring onto the end of the drive plug shaft. 8. Reinstall the scrub brush drive plug. See TO REPLACE BRUSH DRIVE BELT instructions in this section. 7100 330695 (10−00) 3-63...
Page 136: To Replace Brush Idler Plug
REPLACE CYLINDRICAL SCRUB BRUSHES instructions in this section. 2. Remove the idler plate from the scrub head. 3. Remove the flat screw from the back of the brush idler plate. Remove the idler plug from the plate. 3-64 7100 330695 (10−00)
Page 137 5. Use an arbor press to remove the shaft from the idler plug. Discard the existing idler plug. 6. Use an arbor press to install the idler shaft into the new idler plug. 7. Reinstall the retaining ring onto the idler shaft. 7100 330695 (10−00) 3-65...
Page 138 .06 inch to .09 inch from the bottom edge of the door plate. Tighten the flat screw to 37 − 48 Nm (26 − 34 ft lb). 9. Reinstall the scrub brush and idler plate. See TO REPLACE CYLINDRICAL SCRUB BRUSHES instructions in this section. 3-66 7100 330695 (10−00)
Page 139: To Replace Scrub Head Lift Arm
3. Remove the four hex screws holding the two left arm bearings to the machine frame. Remove the scrub head lift arm from the machine. 7100 330695 (10−00) 3-67...
Page 140 Use a hammer to reinstall the roll pin. 7. Go to the other end of the lift arm. Remove the outside retainer ring from the end of the lift arm. 3-68 7100 330695 (10−00)
Page 141 Reinstall the clevis pin and cotter pin. 12. Reinstall the scrub head. See TO INSTALL CYLINDRICAL/DISC SCRUB HEAD instructions in this section. 13. Operate the machine. Check the scrub head lift for proper operation. 7100 330695 (10−00) 3-69...
Page 142: Manual Solution Valve
TO REPLACE SOLUTION VALVE 1. Drain the solution tank. 2. Lower the scrub head to the floor. FOR SAFETY: Before Leaving Or Servicing Machine; Stop On Level Surface, Set Parking Brake. 3-70 7100 330695 (10−00)
Page 143 Pop the rod out of the mount hole. 6. Loosen the worm drive clamps holding the two solution hoses to the valve fittings. Pull the hoses off the fittings. 7100 330695 (10−00) 3-71...
Page 144 9. Remove the lever from the old valve and install it on the new valve in the same orientation. 10. Install the new valve on the machine. Hand tighten the screws. 3-72 7100 330695 (10−00)
Page 145 11. Reconnect the two solution hoses. Hand tighten the worm drive clamps. 12. Place the control lever rod in the mount hole and install the cotter pin. 13. Operator the machine and check the water valve for proper operation. 7100 330695 (10−00) 3-73...
Page 146: Squeegee Wheel Cams
Increase end deflection: Turn the squeegee leveling knob counterclockwise to increase the deflection at the end of the squeegees. Decrease end deflection: Turn the squeegee leveling knob clockwise to decrease the deflection at the end of the squeegees. 3-74 7100 330695 (10−00)
Page 147: To Remove Rear Squeegee Assembly
25 mm (1 in.) from the floor. 2. Turn the machine power off and set the parking brake. FOR SAFETY: Before Leaving Or Servicing Machine; Stop On Level Surface, Set Parking Brake. 3. Remove the squeegee suction hose from the squeegee. 7100 330695 (10−00) 3-75...
Page 148 SCRUBBING 4. Remove both squeegee mounting knobs. 5. Pull the squeegee assembly off the machine. 3-76 7100 330695 (10−00)
Page 149: To Install Rear Squeegee Assembly
1. Make sure the squeegee pivot is lowered. FOR SAFETY: Before Leaving Or Servicing Machine; Stop On Level Surface, Set Parking Brake. 2. Place the squeegee under the squeegee pivot. 3. Push the squeegee frame onto the squeegee pivot. 7100 330695 (10−00) 3-77...
Page 150 NOTE: Make sure the rear squeegee upper and lower links are adjusted to the proper length. 10.5 inches) from the center lines of the rod ends. UPPER LINK LOWER LINK 3-78 7100 330695 (10−00)
Page 151: To Level Rear Squeegee
1. Turn the machine power on. 2. Lower the squeegee. 3. Drive the machine forward a few feet, then set the parking brake. Shut off the machine. FOR SAFETY: Before Leaving Or Servicing Machine; Stop On Level Surface, Set Parking Brake. 7100 330695 (10−00) 3-79...
Page 152 −Turn the squeegee leveling knob clockwise to decrease the deflection at the ends of the squeegee blade. 6. Drive the machine forward with the squeegee down to check the squeegee blade deflection. 7. Readjust the squeegee blade deflection if necessary. 3-80 7100 330695 (10−00)
Page 153: To Adjust Rear Squeegee Blade Deflection
The best deflection is when the squeegee wipes the floor just dry with a minimum amount of deflection. 1. Turn the machine power on. 2. Lower the squeegee. 7100 330695 (10−00) 3-81...
Page 154 Turn the squeegee deflection cams counter−clockwise to increase blade deflection. 5. Drive the machine forward again to check the squeegee blade deflection. 12 mm (0.50 in) 6. Readjust the squeegee blade deflection if necessary. 03719 3-82 7100 330695 (10−00)
Page 155: Rear Squeegee Casters
REAR SQUEEGEE CASTERS The rear squeegee casters each have two grease fittings. Lubricate the pivot point and caster bearing on each squeegee caster with Lubriplate EMB grease (TENNANT part no. 01433−1) every 50 hours TO ADJUST REAR SQUEEGEE GUIDE ROLLER On the left end of the squeegee is a guide roller that guides the squeegee blade end along a wall.
Page 156: Rear Squeegee Blades
(REAR) BLADE 1. Make sure the squeegee is in the raised position. 2. Turn the machine power off and set the parking brake. FOR SAFETY: Before Leaving Or Servicing Machine; Stop On Level Surface, Set Parking Brake. 3-84 7100 330695 (10−00)
Page 157 5. Pull off the rear squeegee blade. 6. Insert the rotated or new squeegee blade and then insert the retainer band. 7. Tighten the two retainer knobs until the ends of the front and rear squeegee blades touch. Do not over−tighten. 7100 330695 (10−00) 3-85...
Page 158: To Replace Or Rotate Rear Squeegee (Front) Blade
2. Turn the machine power off and set the parking brake. FOR SAFETY: Before Leaving Or Servicing Machine; Stop On Level Surface, Set Parking Brake. 3. Remove the squeegee from the machine. See TO REMOVE SQUEEGEE ASSEMBLY instructions. 3-86 7100 330695 (10−00)
Page 159 6. Pull the retainer plate back and pull the front squeegee blade out of the squeegee frame. 7. Insert the rotated or new squeegee blade in the squeegee frame, lining up the slots in the blade with the tabs on the retainer plate. 7100 330695 (10−00) 3-87...
Page 160 10. Install the squeegee assembly on the squeegee pivot. See TO INSTALL SQUEEGEE ASSEMBLY instructions. 11. Adjust the squeegee blade leveling and deflection as stated in TO LEVEL 12 mm SQUEEGEE and ADJUST SQUEEGEE (0.50 in) BLADE DEFLECTION instructions. 03719 3-88 7100 330695 (10−00)
Page 161: Side Squeegee Blades
Check the side squeegees for damage and wear daily. Replace the side squeegee blades if they become damaged or lose their shape. Replace the squeegee deflectors if they become worn. 7100 330695 (10−00) 3-89...
Page 162: To Replace Side Squeegee Blades
2. Turn the machine power off and set the parking brake. FOR SAFETY: Before Leaving Or Servicing Machine; Stop On Level Surface, Set Parking Brake. 3. Remove the cotter pin, clevis pin, deflector and the retainer bracket from the side squeegee. 3-90 7100 330695 (10−00)
Page 163 4. Pull the squeegee out of the squeegee frame. 5. Slide a new squeegee blade into the frame. 6. Replace the retainer bracket, deflector, clevis pin, and cotter pin. 7. Repeat for the side squeegee on the other side of the scrub head. 7100 330695 (10−00) 3-91...
Page 164 TO REMOVE VACUUM FAN ASSEMBLY FOR SAFETY: Before Leaving Or Servicing Machine; Stop On Level Surface, Set Parking Brake. 1. Open the recovery/solution tank cover. 2. Locate the vacuum fan between the solution and recovery tanks. 3-92 7100 330695 (10−00)
Page 165 5. Disconnect the vacuum fan motor from the main electrical harness. 6. Remove the vacuum fan assembly from the machine. Be careful not to loose the rubber seal on the outlet of the vacuum housing. 7100 330695 (10−00) 3-93...
Page 166: To Install Vacuum Fan Assembly
2. Reconnect the vacuum fan exhaust hose to the bottom of the fan outlet port. 3. Reconnect the plug from the vacuum fan motor into the main electrical harness. See schematic in the ELECTRICAL section. 3-94 7100 330695 (10−00)
Page 167 18 − 24 Nm (15 − 20 ft lb). 6. Close the tank cover and operate the machine. Make sure the top of the vacuum fan seal contacts the bottom of the tank cover. Check the vacuum fan for proper operation. 7100 330695 (10−00) 3-95...
Page 168: Machine Troubleshooting
Reduce scrub brush down pressure Uneven brush pressure, level scrub head Broken brush drive belts on cylindrical scrub head, replace belt Check with TENNANT representative for advice Low battery charge Charge batteries until the charger automatically turns off 3-96 7100 330695 (10−00)
Page 169 CIRCUIT BOARD PIN FUNCTIONS 4−108 ELECTRICAL SCHEMATIC SCRUB BRUSH MOTOR CURRENT DRAW (S/N 7100xxx00001−02699) ..4−79 SPECIFICATIONS: ....4−108 7100 330695 (8−11)
Page 170 ....4−133 VACUUM FAN ....4−135 VACUUM FAN ....4−136 7100 330695 (8−11)
Page 171: Introduction
ELECTRICAL INTRODUCTION The 7100 electrical system consists of the batteries, instrument panel, drive motor, switches, relays, and circuit breakers. 7100 330695 (8−11)
Page 172: Electrical System
ELECTRICAL ELECTRICAL SYSTEM The model 7100 is a battery powered, all electric machine. The batteries are used to power the front drive motor, vacuum fan motor, scrub brush motors, and lift actuators. BATTERIES The batteries are unique in that they hold their power for long periods of time.
Page 173: To Charge Batteries
DO NOT OVERFILL. The batteries can overflow during charging due to expansion. NOTE: Make sure the battery caps are in place while charging. FOR SAFETY: When maintaining or servicing machine, avoid contact with battery acid. 7100 330695 (8−11)
Page 174 TENNANT charger, this indicates that something is wrong with the battery. The charger can not charge the battery when this happens. 6. The Tennant charger will start automatically. When the batteries are fully charged, the Tennant charger will automatically turn off.
Page 175: To Replace Batteries
Surface, Set Parking Brake. 1. Open the seat support and engage the prop rod. 2. Disconnect the machine batteries. FOR SAFETY: Disconnect Battery Connections Before Working On machine. 3. Remove the five small battery cables from the batteries. 7100 330695 (8−11)
Page 176 6. Install the new batteries into the battery tray. Note the orientation of the battery neg and pos. 7. Reinstall the five small battery cables onto the new batteries. 7100 330695 (8−11)
Page 177 8. Reinstall the connector assembly onto the batteries. 9. Reconnect the battery connect to the machine connector. 10. Disengage the prop rod and lower the seat support. 11. Start the machine and check the new batteries for proper operation. 7100 330695 (8−11)
Page 178: Instrument Panel
1. Open the control panel. See TO ACCESS CONTROL PANEL instructions. Make sure to disconnect the machine batteries. FOR SAFETY: Disconnect Battery Connections Before Working On machine. 2. Locate the circuit board cover on the inside, front wall of the control panel. 4-10 7100 330695 (8−11)
Page 179 4. Pull the circuit board cover back to access the circuit board. 5. Un−plug the ribbon cable from the circuit board. 6. Locate the six touch panel lock clips on the under side of the dash panel. Remove the lock clips. 4-11 7100 330695 (8−11)
Page 180 10. Place the touch panel bezel over the touch panel. Line up the posts on the bezel with the mount holes in the dash panel. 11. Install the six lock clips on the bezel posts. 4-12 7100 330695 (8−11)
Page 181 14. Reinstall the six nuts on the circuit breaker cover. Hand tighten lightly. 15. Pivot the control panel back in position. Reinstall the four screws and tighten to 18 − 24 Nm (15 − 20 ft lb). 4-13 7100 330695 (8−11)
Page 182 ELECTRICAL 16. Open the operator seat and reconnect the battery connector at the front of the solution tank. 17. Close the seat support. Start the machine and check for proper operation. 4-14 7100 330695 (8−11)
Page 183: Control Panel
1. Lift the operator seat to access the batteries. The support arm automatically engages when the seat is lifted all the way up. 2. Disconnect the battery connector from the machine. FOR SAFETY: Disconnect Battery Connections Before Working On machine. 4-15 7100 330695 (8−11)
Page 184 6. Make any necessary repairs to the electrical components. 7. Pivot the control panel plate and steering wheel up until it is positioned into the front shroud. 4-16 7100 330695 (8−11)
Page 185 9. Open the operator seat and reconnect the battery connector at the front of the solution tank. 10. Close the seat support. Start the machine and check for proper operation. 4-17 7100 330695 (8−11)
Page 186: To Replace Circuit Board
FOR SAFETY: Disconnect Battery Connections Before Working On machine. 2. Locate the circuit board cover on the inside, front wall of the control panel. 3. Remove the six nuts holding the circuit board cover onto the frame. 4-18 7100 330695 (8−11)
Page 187 5. Un−plug the ribbon cable from the circuit board. 6. Un−plug the three wire connectors from the circuit board. 7. Pop the circuit board off the six plastic stand−offs. Remove the circuit board from the machine. Note the orientation of the circuit board. 4-19 7100 330695 (8−11)
Page 188 See schematic in this section. 10. Reconnect the ribbon cable to the new circuit board. 11. Position the circuit board cover back to the inside, front wall of the control panel. 4-20 7100 330695 (8−11)
Page 189 Reinstall the six screws and tighten. See TO ACCESS CONTROL/INSTRUMENT PANEL instructions. 14. Open the operator seat and reconnect the battery connector at the front of the solution tank. 15. Close the seat support. Start the machine and check for proper operation. 4-21 7100 330695 (8−11)
Page 190: Resetable Circuit Breakers
Vacuum Fan (single) 40 A Vacuum Fan (dual) 10 A ES System (option) FaST System (option) 25 A Left Brush Motor 25 A Right Brush Motor CB10 2.5 A ec−H2O (option) CB11 2.5 A ec−H2O (option) 4-22 7100 330695 (8−11)
Page 191: To Replace Circuit Breaker
2. Disconnect the battery connector from the machine. FOR SAFETY: Disconnect Battery Connections Before Working On machine. 3. Locate the circuit breakers on the lower, left corner of the control panel. 4-23 7100 330695 (8−11)
Page 192 5. Disconnect the wires from the back of circuit breaker. 6. Remove the nut/boot from the front of the circuit breaker. 7. Push the circuit breaker out of the mount hole from the back of panel. 4-24 7100 330695 (8−11)
Page 193 See the schematic in this section. 11. Lift the operator seat and reconnect the battery connector at the front of the solution tank. 12. Close the seat support. Start the machine and check for proper operation. 4-25 7100 330695 (8−11)
Page 194: To Replace Fuse
1. Open the control panel. See TO ACCESS CONTROL/INSTRUMENT PANEL instructions in this section. FOR SAFETY: Disconnect Battery Connections Before Working On machine. 2. Locate the electrical fuse on the bottom, left side of the control panel. 4-26 7100 330695 (8−11)
Page 195 Reinstall the six screws and tighten to 18 − 24 Nm (15 − 20 ft lb). 7. Lift the operator seat and reconnect the battery connector at the front of the solution tank. 8. Start the machine and check for proper operation. 4-27 7100 330695 (8−11)
Page 196: Directional Pedal
Neutral position when you take your foot off of the directional pedal. When the directional pedal returns to the neutral position the scrub head will stop. After a short delay, the scrub head will also raise. 4-28 7100 330695 (8−11)
Page 197: To Remove Directional Pedal Assembly
1. Open the seat support and engage the prop rod. 2. Disconnect the machine batteries. 3. Go under the machine in the area of the right hand side brush. Locate the wires and connector leading from the directional pedal. 4-29 7100 330695 (8−11)
Page 198 5. Go the the operators compartment and locate the directional pedal assembly. Remove the four thread rolling screws holding the directional pedal to the floor plate. 6. Remove the pedal assembly from the machine. 4-30 7100 330695 (8−11)
Page 199: To Install Directional Pedal Assembly
3. Line up the mount holes in the pedal assembly plate with the mount holes in the machines floor plate. Reinstall the four thread rolling screws and tighten to 8 − 10 Nm (6 − 7 ft lb). 4-31 7100 330695 (8−11)
Page 200 6. Reconnect the batteries. 7. Disengage the prop rod and lower the seat support. 8. Start the machine and check for proper operation. Set the pedal neutral if needed. See TO SET POTENTIOMETER NEUTRAL instructions in this section. 4-32 7100 330695 (8−11)
Page 201: To Replace Directional Pedal
2. Loosen the hex screw and nut holding the accelerator lever to the potentiometer. Remove the accelerator lever from the potentiometer shaft. 3. Remove the thin hex nut from the potentiometer shaft. 4-33 7100 330695 (8−11)
Page 202 If an adjustment needs to be made, loosen the upper jam nut and turn the rod. Re−tighten the jam nut. 8. Reinstall the directional pedal assembly into the machine. See TO INSTALL DIRECTIONAL PEDAL ASSEMBLY instructions in this section. 4-34 7100 330695 (8−11)
Page 203 ELECTRICAL 9. Check the new potentiometer for neutral. See TO SET POTENTIOMETER NEUTRAL instructions in this section. 10. Operate the machine. Check the new potentiometer for proper operation. 4-35 7100 330695 (8−11)
Page 204: To Set Potentiometer Neutral
1. Open the seat support and engage the prop rod. 2. Disconnect the machine batteries. 3. Go under the machine in the area of the right hand side brush. Locate the wires and connector leading from the directional pedal. 4-36 7100 330695 (8−11)
Page 205 6. The meter reading should be 2500 OHMS (=/− 50 OHMS). 7. Loosen the upper jam nut on the threaded rod. Turn the rod to achieve the proper OHM reading. Tighten the jam nut. 8. Reconnect the batteries. 4-37 7100 330695 (8−11)
Page 206 ELECTRICAL 9. Disengage the prop rod and lower the seat support. 10. Operate the machine. Check the machine for proper neutral operation. 4-38 7100 330695 (8−11)
Page 207: To Replace Motor Controller
1. Open the control panel. See TO ACCESS CONTROL PANEL instructions. FOR SAFETY: Disconnect Battery Connections Before Working On machine. 2. Locate the controller box in the center of the control panel. 3. Disconnect the wires and power cables leading to the controller. 4-39 7100 330695 (8−11)
Page 208 5. Position the new controller on the panel. Reinstall the screws and nuts. Hand tighten. 6. Reconnect the power cables and electrical wires to the controller. See the schematic in this section. 4-40 7100 330695 (8−11)
Page 209 18 − 24 Nm (15 − 20 ft lb). 8. Lift the operator seat and reconnect the battery connector at the front of the solution tank. 9. Start the machine and check for proper operation of the propelling. 4-41 7100 330695 (8−11)
Page 210: Electric Motors
Servicing Machine; Stop On Level Surface, Set Parking Brake. The front drive motor is part of the front drive assembly. See TO REMOVE FRONT DRIVE ASSEMBLY instructions in the CHASSIS section if the front drive motor needs repair. 4-42 7100 330695 (8−11)
Page 211: To Replace Disc Scrub Head Brush Motor
3. Go in under the scrub head and remove the screw and washer from the center of the brush drive plug. 4. Drop the drive plug down off the motor shaft. Make sure to retain the square key. 4-43 7100 330695 (8−11)
Page 212 8. Lift the brush motor off the deck of the scrub head and remove it from the machine. Note the orientation of the brush motor power cable. The new motor must be orientated the same direction. 4-44 7100 330695 (8−11)
Page 213 12. Rotate the brush motor until it is orientated properly and the mount holes line up with the holes in the deck of the scrub head. Install the four screws and tighten to 11 − 14 Nm (7 − 10 ft lb). 4-45 7100 330695 (8−11)
Page 214 15. Reinstall the side squeegees. See TO REPLACE SIDE SQUEEGEE BLADES instructions in the SCRUBBING section. 16. Start the machine and operate the scrubbing function. Check for proper operation and rotation of the new motor. FRONT OF MACHINE SCRUB BRUSH ROTATION 4-46 7100 330695 (8−11)
Page 215: To Replace Cylindrical Scrub Head Brush Motor
REPLACE SIDE SQUEEGEE BLADES instructions in the SCRUBBING section. 2. Remove the scrub brushes. See TO REPLACE DISC SCRUB BRUSHES instructions in the SCRUBBING section. 3. Start the machine and lower the scrub head. Shut off the key. 4-47 7100 330695 (8−11)
Page 216 Remove the belt cover from the scrub head. 7. Loosen the jam nut on the belt tension bolt under the brush motor. Turn the tension bolt down far enough to slip the the belt off the cogged pulley. 4-48 7100 330695 (8−11)
Page 217 11. Position the new brush motor on the scrub head. Align the mounting holes on the motor with the holes in the pivot mount bracket. Install the two screws. Snug the hardware for now. 12. Slip the brush belt over the cogged pulley. 4-49 7100 330695 (8−11)
Page 218 15. Tighten the two motor pivot screws to 18 − 24 Nm (15 − 20 ft lb). Re−check the belt tension. 16. Reconnect the brush motor into the main harness. See schematic in this section. 4-50 7100 330695 (8−11)
Page 219 18. Reinstall the scrub brushes. See TO REPLACE CYLINDRICAL SCRUB BRUSHES instructions in the SCRUBBING section. 19. Operate the machine and check the scrub brush motor for proper operation. 4-51 7100 330695 (8−11)
Page 220: Lift Actuators
Servicing Machine; Stop On Level Surface, Set Parking Brake. 2. Go in on top of the scrub head and remove the cotter pin and clevis pin from the bottom of the scrub head lift actuator tube. 4-52 7100 330695 (8−11)
Page 221 5. Lift the actuator and spring mount bracket up far enough to disconnect the actuator from the main harness. 6. Lift the actuator and spring mount bracket out of the assembly and remove from the machine. 4-53 7100 330695 (8−11)
Page 222 Install the mount plate onto the new actuator. 10. Position the new actuator and spring mount bracket in the machine. Slide the assembly down the into the mount tower. Route the actuator wire and plug the connector into the main harness. 4-54 7100 330695 (8−11)
Page 223 13. Plug in the battery connector. Lower the seat assembly. 14. Operate the machine and check the scrub head lift actuator for proper operation. 4-55 7100 330695 (8−11)
Page 224: To Replace Rear Squeegee Lift Actuator
3. Remove the hardware holding the drip tray to the back of the tanks. Remove the drip tray from the machine. 4. Remove the rear squeegee assembly. See TO REMOVE REAR SQUEEGEE ASSEMBLY instructions in the SCRUBBING section. 4-56 7100 330695 (8−11)
Page 225 7. Remove the two remaining screws (located in front of the rear tires). 8. Let the squeegee mount channel and squeegee assembly drop down to access the lift actuator. 4-57 7100 330695 (8−11)
Page 226 11. Install the new actuator into the squeegee frame in the same orientation as the old one was removed. Reinstall the two clevis pins and cotter pins. 12. Position the squeegee frame assembly back onto the rear of the machine frame. 4-58 7100 330695 (8−11)
Page 227 15. Reconnect the squeegee lift actuator to the main electrical harness. See schematic in this section. 16. Reinstall the drip tray. Tighten the two hex screws to 18 − 24 Nm (15 − 20 ft lb). 4-59 7100 330695 (8−11)
Page 228 ELECTRICAL 17. Reinstall the squeegee assembly. See TO INSTALL REAR SQUEEGEE ASSEMBLY instructions in the SCRUBBING section. 18. Start the machine and check the rear squeegee actuator for proper operation. 4-60 7100 330695 (8−11)
Page 229: Est Pump
FOR SAFETY: Before Leaving Or Servicing Machine; Stop On Level Surface, Set Parking Brake. 1. Make sure the solution and recovery tanks are empty. 2. Remove the solution tank. See TO REMOVE SOLUTION TANK instructions in the scrubbing section. 4-61 7100 330695 (8−11)
Page 230 5. Loosen the worm drive clamps holding the solution hoses to the ESt pump. Pull the hoses off the pump fittings. 6. Loosen the worm drive clamp holding the ESt pump to the mount bracket. 4-62 7100 330695 (8−11)
Page 231 9. Install the new ESt pump on the mount plate. Hand tighten the worm drive clamp. 10. Reinstall the hoses onto the inlet and outlet ports on the new pump. 4-63 7100 330695 (8−11)
Page 232 11. Reconnect the pump to the main electrical harness. See schematic in this section. 12. Reinstall the solution tank. See TO INSTALL SOLUTION TANK instructions in the scrubbing section. 13. Operate the machine and check the ESt pump for proper operation. 4-64 7100 330695 (8−11)
Page 233: Solution Solenoid Valve
TO REPLACE SOLUTION SOLENOID VALVE 1. Drain the solution tank. 2. Lower the scrub head to the floor. FOR SAFETY: Before Leaving Or Servicing Machine; Stop On Level Surface, Set Parking Brake. 4-65 7100 330695 (8−11)
Page 234 5. Mark and disconnect the wires leading to the solenoid valve. 6. Loosen the two worm drive clamps holding the water hoses to the valve. Mark the hoses and pull them off the fittings. 4-66 7100 330695 (8−11)
Page 235 9. Re−connect the two water hoses to the new valve. Hand tighten the two worm drive clamps. 10. Re−connect the wires to the new solenoid valve. See schematic in the section. 11. Start the machine and operate. Check the new valve for proper operation. 4-67 7100 330695 (8−11)
Page 236: Vacuum Fan
2. Remove the three screws and sleeves holding the vacuum fan to the mount bracket. Remove the vacuum fan. NOTE: Make sure to install a gasket on the bottom of the new fan. 4-68 7100 330695 (8−11)
Page 237 Tighten to 8 − 10 Nm (6 − 7 ft lb). NOTE: On a machine equipped with the HD vacuum fan option, there are two fans. 5. Reinstall the vacuum fan assembly in the machine. See TO INSTALL VACUUM FAN ASSEMBLY instructions in the SCRUBBING section. 4-69 7100 330695 (8−11)
Page 238: To Remove Rollout Battery
4. Unplug the machine connector from the batteries. 5. Push the battery cart to the right hand side of the machine. Line up the battery cart locks and the tabs on the machine. Push the battery cart forward. 4-70 7100 330695 (8−11)
Page 239 Lower battery cart rollers: With a wrench, loosen the jam nut and turn the bolt counter−clockwise. Then tighten the jam nuts. 9. Turn the knob on the machine’s battery latch plate counter−clockwise until the latch plate is free to move. 4-71 7100 330695 (8−11)
Page 240 12. Grab the battery case slot and pull the battery case onto the battery cart. 13. Lower the cart’s battery stop bar by pulling up on the handle. This will keep the batteries from rolling off the cart when moving. 4-72 7100 330695 (8−11)
Page 241 15. Release the battery cart floor lock. To release floor lock, step down on the right side of floor lock. 16. Pull the battery cart away from the machine. 17. Reverse the previous steps to re−install batteries in the machine. 4-73 7100 330695 (8−11)
Page 242: Electrical Schematic
ELECTRICAL Fig. 1 − Electrical Schematic (S/N 7100xxx02700− 4-74 7100 330695 (8−11)
Page 243: Electrical Schematic (S/N 7100Xxx00001−02699)
ELECTRICAL Fig. 1 − Electrical Schematic (S/N 7100xxx02700− 4-75 7100 330695 (8−11)
Page 244: Electrical Schematic (S/N 7100Xxx00001−02699)
ELECTRICAL Fig. 1 − Electrical Schematic (S/N 7100xxx02700− 4-76 7100 330695 (8−11)
Page 245 ELECTRICAL Fig. 2 − Electrical Schematic (S/N 7100xxx00001−02699) PWRCON1A CON N−PWR B− P1−6 P1−15 12A/BRN POT? 19/WHT P1−3 P1−2 21/PNK 18/GRY P1−1 PROPEL POT. DIODE−HRNSS DIODE−HRNSS CHARGER SW. 4-77 7100 330695 (8−11)
Page 246 ELECTRICAL Fig. 2 − Electrical Schematic (S/N 7100xxx00001−02699) MEMBRANE TOUCH PANEL P3−1 PANEL SWITCH PANEL LED S PULL−UP RESISTOR DOWN BATT. SCRUB PULL−DN ELECTRONIC CONTROL CIRCUIT BOARD LEDS PRESS. RESISTOR CTRL? LEDS P4−6 4-78 7100 330695 (8−11)
Page 247 ELECTRICAL Fig. 2 − Electrical Schematic (S/N 7100xxx00001−02699) 4-79 7100 330695 (8−11)
Page 248: Wire Harness Group (S/N 7100Xxx02700− )
ELECTRICAL Fig. 3 − Wire Harness Group (S/N 7100xxx02700− 4-80 7100 330695 (8−11)
Page 249: Wire Harness Group (S/N 7100Xxx02700− )
ELECTRICAL Fig. 3 − Wire Harness Group (S/N 7100xxx02700− 4-81 7100 330695 (8−11)
Page 250: Wire Harness Group (S/N 7100Xxx02700− )
ELECTRICAL Fig. 3 − Wire Harness Group (S/N 7100xxx02700− 4-82 7100 330695 (8−11)
Page 251: Wire Harness Group (S/N 7100Xxx02700− )
ELECTRICAL Fig. 3 − Wire Harness Group (S/N 7100xxx02700− 4-83 7100 330695 (8−11)
Page 252: Wire Harness Group (S/N 7100Xxx00001−02699)
ELECTRICAL Fig. 4 − Wire Harness Group (S/N 7100xxx00001−02699) 4-84 7100 330695 (8−11)
Page 253: Wire Harness Group (S/N 7100Xxx00001−02699)
ELECTRICAL Fig. 4 − Wire Harness Group (S/N 7100xxx00001−02699) 4-85 7100 330695 (8−11)
Page 254: Wire Harness Group (S/N 7100Xxx00001−02699)
ELECTRICAL Fig. 4 − Wire Harness Group (S/N 7100xxx00001−02699) 4-86 7100 330695 (8−11)
Page 255: Wire Harness Group (S/N 7100Xxx00001−02699)
ELECTRICAL Fig. 4 − Wire Harness Group (S/N 7100xxx00001−02699) 4-87 7100 330695 (8−11)
Page 256: Fast Electrical Schematic
ELECTRICAL Fig. 5 − FaST Electrical Schematic (S/N 7100xxx01709− 4-88 7100 330695 (8−11)
Page 257: Operating Modes
The common operating modes are detailed in the following charts. The 7100 can be powered up in two different modes: normal mode (default), and maintenance mode. The normal mode is used for primary operation of the machine.
Page 258: Normal Mode
2. The machine will delay a few seconds and the squeegee will start to raise. 3. The vacuum fan will turn off after a slight delay. 4-90 7100 330695 (8−11)
Page 259: Scrub Pressure Downshift Feature
Pressing the squeegee button while the squeegee LED is on will cause the following actions: 1. The squeegee LED will turn off. 2. The squeegee will raise. 3. The vacuum fan will turn off after a slight delay. 4-91 7100 330695 (8−11)
Page 260: Overflow Float Switch
LED, the key switch must be cycled or the scrub function can be toggled on or off. At this point, if the solution low float switch remains ungrounded for more than three seconds, the solution low indicator will turn on again. 4-92 7100 330695 (8−11)
Page 261: Battery Gauge
HOUR METER The hour meter logs hours if the machine is in one of the following modes. 1. Propelling 2. Vacuum fans running. 4-93 7100 330695 (8−11)
Page 262 ELECTRICAL INTERLOCKS The 7100 has several interlocks which can inhibit or cancel machine functions. D REVERSE − If the board does not sense an active forward sense (P4−6) or neutral sense (P4−12), the controller board will assume reverse. When this happens the following function will become inhibited: −SQUEEGEE will rise.
Page 263 ELECTRICAL D FULL RECOVERY TANK − The 7100 will cancel the following functions if the recovery tank float switch is turned on: THE CONTROLLER will cancel scrub and squeegee operations, as if someone toggled the scrub or squeegee buttons. THE TANK FULL LED will start to blink. This message will not turn off by simply emptying the recovery tank.
Page 264: Self Test Mode
The Self Test Mode tests each of the following controller board functions: 1. Squeegee actuator. 2. Scrub head actuator. 3. Scrub brush motor current. 4. Hour meter output. 5. Water valve output. 6. ESt pump output. 7. Scrub brush contactor output. 4-96 7100 330695 (8−11)
Page 265 14. Cycle and test the Hour meter output. 15. Cycle and test the water valve output. 16. The ES/FaST and squeegee LEDs will flash green for system passed, turn on the overflow light (red) or solution empty LED (red) for system failed. 4-97 7100 330695 (8−11)
Page 266: Self Test Error Codes
− − Hour meter output − On steady − − Water valve output − − On steady − Fan contactor output − − − On steady Brush contactor output − Blinking − − Backup alarm output 4-98 7100 330695 (8−11)
Page 267: No Buttons Pressed
ESt self test passed − − Blinking − Self test failed − − − Blinking ESt self test failed ESt OUTPUT GROUP, ESt BUTTON PRESSED PRESSURE 2 PRESSURE 3 PRESSURE 1 ERROR On steady − − ESt pump output 4-99 7100 330695 (8−11)
Page 268: Manual Mode
Once the scrub system is turned off, pressing and holding the scrub button will again move the head actuator downward as described above. 4-100 7100 330695 (8−11)
Page 269: Squeegee Button
ESt BUTTON (Tennant machines only) Pressing the ESt button will toggle the ESt pump on or off. In the on position, the ESt pump will run regardless of the state of the floats.
Page 270: Scrub Brush Operation
ELECTRICAL INTERLOCKS The operator can start and stop the various functions of the 7100 scrubber using a variety of closures and interlocks. What follows are two tables for each of the three basic scrubbing functions (Scrub brushes, Squeegee/vacuum fan, and ESt pump). One table lists the actions required for the basic function to be running.
Page 271: Est Pump Operation
ESt PUMP INHIBITED BY: INDICATOR D ESt button D ESt LED off D More than 30 seconds has passed since the ESt float has become uncovered D Solution tank full float covered for more than 5 seconds 4-103 7100 330695 (8−11)
Page 272: Input Display Mode
Battery 3.−When the battery 3 LED is on, the controller senses neutral. (P4−12 low) Battery 4.−When the battery 4 LED is on, there is power sensed on the outputs of both brush motor circuit breakers. (P4−10 high) 4-104 7100 330695 (8−11)
Page 273 (P4−2 low) Solution − When the solution empty LED is on, the solution tank empty float is active. (P4−8 high) (Tennant only) Pressure 1.−When the pressure 1 LED is on, the scrub is active, and the brush current detected is below the minimum level for the selected pressure setting.
Page 274: Restricted Down Pressure Mode
2. Keep holding the squeegee button until scrub pressure LED#3 is lit and then release 3. Press and release the scrub button until scrub pressure LED#1 is on. 4. Press and release the squeegee key. 4-106 7100 330695 (8−11)
Page 275: Software Date Display Mode
(i.e. − if it flashes 0 times, the year is 2000 and if it flashes 1 time, the year is 2001) 4. This sequence of 2 or 3 LEDs will continue flashing until the key switch is turned off. 4-107 7100 330695 (8−11)
Page 276: Circuit Board Pin Functions
During normal operation, with no faults present, the Status LED is steadily on. If the controller detects a fault, the status LED flashes a 2−digit fault identification code continuously until the fault is corrected (see table below). 4-108 7100 330695 (8−11)
Page 277 (36V models), or >60V (48V models). 2. Vehicle operating with charger attached. 1. Temperature > 95C or < −25C over−/under−temp. 2. Excessive load on vehicle. Thermal Cutback cutback 3. Improper mounting of controller. 4. Operation in extreme environments. 4-109 7100 330695 (8−11)
Page 278 ELECTRICAL TROUBLESHOOTING The following troublshooting section should be used to diagnos and repair the electrical system on the model 7100. 4-110 7100 330695 (8−11)
Page 279 DOES THE ES LED TURN ON WHEN THE RECOVERY TANK 1/2 FULL SWITCH (S6) IS CLOSED ? IF CONNECTIONS TO SWITCH S2 ARE GOOD AND 35/GRN IS NOT SYSTEM OKAY 35/GRN, 13Y/BLK OR SHORTED TO GND, REPLACE S2 SWITCH S2 HAS FAILED OPEN 4-111 7100 330695 (8−11)
Page 280 P2−7 PROPEL) SQ/VAC LED SQ/VFAN P2−10 P2−8 LED #1 SCRUB1 P3−6 P2−11 P2−9 BACK−UP LED #2 SCRUB2 ALARM P2−12 P2−10 LED #3 SCRUB3 P2−13 P2−11 ES LED SOL. LOW P2−14 P2−12 SOL LOW P2−15 P2−16 43/ORA 4-112 7100 330695 (8−11)
Page 281 FIND WHERE 37/PUR, 38/ BATTERY 13J/BLK IS OPEN GRY, D5 OR THE HORN IS VOLTAGE ON REPAIR/REPLACE INTERMITTANTLY 13J/BLK @ THE 13J/BLK SHORTING TO GND AND HORN ? REPLACE/REPAIR iF CONNECTION TO THE HORN IS GOOD − REPLACE HORN 4-113 7100 330695 (8−11)
Page 282 6 VDC 6 VDC 6 VDC 6 VDC 6 VDC −− −− −− −− −− −− PWRCON1B CONN−PWR 5 & 5A/GRN 5 & 5B/GRN LINE 6/BLU 6A/BLU HORN HORN BUTTON 6B/BLU 37/PUR 38A/GRY 38/GRY 13J/BLK 13H/BLK 6C/BLU 4-114 7100 330695 (8−11)
Page 283 TO SWITCH (S12) WHEN SWITCH ARE GOOD (S12) IS ON ? − REPLACE IT 13/BLK CIRCUIT IS 13/BLK CIRCUIT @ NOT CONNECTED BATT. VOLTAGE ? TO MACHINE GND − REPAIR/REPLACE IF CONNECTION TO LIGHT ARE GOOD, REPLACE/REPAIR LIGHT 4-115 7100 330695 (8−11)
Page 284 −− −− −− −− CONN−PWR PWRCON1B 5 & 5A/GRN 5 & 5B/GRN LINE 6/BLU 6A/BLU 6B/BLU 6C/BLU SHROUD 42/BRN LIGHT SW 81D/GRN 81L/GRN 13LL/BLK 13P/BLK LEFT HEAD L IGHT 81A/GRN 13N/BLK RIGHT HEAD LIGHT 81/GRN 13M/BLK 4-116 7100 330695 (8−11)
Page 285 B AND A OR C SHOULD CHANGE FROM 0 OHMS TO 5000 OHMS WHEN THE REPLACE THE MOTOR. POTENTIOMETER IS TURNED. 3. WHEN THE POTENTIOMETER IS CENTERED, THE RESISTANCE BETWEEN CONNECTOR POSITION B AND A OR C SHOULD BE HALF OF THE TOTAL RESISTANCE (ABOUT 2500 OHMS). 4-117 7100 330695 (8−11)
Page 286 HOUR METER LED #4 ENABLE P2−8 REC. TANK (VAC OR FULL LED P2−9 PROPEL) SQ/VAC LED P2−10 LED #1 P3−6 P2−11 LED #2 BACK−UP P2−12 ALARM LED #3 P2−13 ES LED P2−14 SOL. LOW P2−15 P2−16 4-118 7100 330695 (8−11)
Page 287 REPLACE S9 IF ARE GOOD CONNECTIONS TO IT ARE GOOD M7 OR THE HORN IS BAD OR CIRCUIT 40/ CIRCUIT 39/WHT ORA IS SHORTED TO BETWEEN CB3 & S9 IS OPEN − REPAIR/REPLACE AS − REPAIR/REPLACE NEEDED 4-119 7100 330695 (8−11)
Page 288 17AMPS EA. 5 & 5A/GRN 7/PUR 5B/GRN 5 & 5B/GRN 8/GRY LINE 9/WHT DIODE−HRNSS START 12B/BRN 13C/BLK 11/PNK LINE EMERGENCY SW. 10/TAN 11A/PNK 12 & 12A/BRN 12 & 12B/BRN 13A/BLK aux. LINE x = CLOSED CONTACT KEYSW 4-120 7100 330695 (8−11)
Page 289 BATT. VOLTAGE NOT REPLACE GETTING TO CIRCUIT KEYSWITCH 11/PNK THRU M2 AUX. CHECK FOR VOLTAGE FROM TERMINAL CONTACTS #50, THRU THE EMERGENCY SWITCH & − REPLACE M2 OVER TO M2 COIL − REPAIR/ REPLACE BAD WIRE OR COMPONENT 4-121 7100 330695 (8−11)
Page 290 17AMPS EA. 5 & 5A/GRN 7/PUR 5B/GRN 5 & 5B/GRN 8/GRY LINE 9/WHT DIODE−HRNSS START 12B/BRN 13C/BLK 11/PNK LINE EMERGENCY SW. 10/TAN 11A/PNK 12 & 12A/BRN 12 & 12B/BRN 13A/BLK aux. LINE x = CLOSED CONTACT KEYSW 4-122 7100 330695 (8−11)
Page 291: Scrub System
OR @ M1 CONTACTS CAUSING 64/ FULL SWITCH (S1) IS 17/PUR CIRCUIT PUR OR 62/BLU CIRCUITS TO BE SHORTED CLOSED OR STILL LOW ? PULLED LOW (< 1V) OR 17/PUR 20/TAN IS SHORTED CIRCUIT TO SHORT TO GND. TO GND 4-123 7100 330695 (8−11)
Page 292 − REPLACE MOTOR(S) WITH EXCESSIVE AMP DRAW − IF NONE OF THESE ERRORS ARE FOUND: THE SCRUB SYSTEM IS PASSING SELFTEST DIAGNOSTICS − DETERMINE WHAT OTHER ERROR IS CAUSING THE SELFTEST FAILURE AND TROUBLESHOOT THAT SECTION 4-124 7100 330695 (8−11)
Page 293 P2−7 PROPEL) SQ/VAC LED SQ/VFAN P2−10 P2−8 LED #1 SCRUB1 P3−6 P2−11 P2−9 BACK−UP LED #2 SCRUB2 ALARM P2−12 P2−10 LED #3 SCRUB3 P2−13 P2−11 ES LED SOL. LOW P2−14 P2−12 SOL LOW P2−15 P2−16 43/ORA 4-125 7100 330695 (8−11)
Page 294 ELECTRICAL 4-126 7100 330695 (8−11)
Page 295 JUMPER PLUG ASSEMBLY SECTION IN WIRE HARNESS @ 36/ BLU & 13Z/BLK 7100 MACHINE WITH ES OPTION ? GO TO INPUT DISPLAY MODE 1. WHILE HOLDING THE SQUEEGEE BUTTON, TURN THE KEY TO THE START POSITION AND THEN RELEASE IT.
Page 296 P2−7 PROPEL) SQ/VAC LED SQ/VFAN P2−10 P2−8 LED #1 SCRUB1 P3−6 P2−11 P2−9 LED #2 BACK−UP SCRUB2 P2−12 P2−10 ALARM LED #3 SCRUB3 P2−13 P2−11 ES LED P2−14 P2−12 SOL. LOW SOL LOW P2−15 P2−16 43/ORA 4-128 7100 330695 (8−11)
Page 297 SCRUB SYSTEM OFF. IS OPEN − PRESS BUTTON AGAIN TO TURN REPLACE − REPAIR/REPLACE SYSTEM BACK ON. SOLUTION VALVE − WHEN THE BRUSHES TURN ON, BATT. VOLTAGE ON 26/BLU @ CONTROL BOARD ? REPLACE CONTROL BOARD 4-129 7100 330695 (8−11)
Page 298 P2−7 PROPEL) SQ/VAC LED SQ/VFAN P2−10 P2−8 LED #1 SCRUB1 P3−6 P2−11 P2−9 LED #2 BACK−UP SCRUB2 P2−12 P2−10 ALARM LED #3 SCRUB3 P2−13 P2−11 ES LED P2−14 P2−12 SOL. LOW SOL LOW P2−15 P2−16 43/ORA 4-130 7100 330695 (8−11)
Page 299: Squeegee System
MACHINE TESTS ACTUATOR OR THE CONTROL 16/BLU (P4−12) IS BEING HELD @ GOOD BOARD ARE BAD GND & 14/YEL (P4−6) IS < 0.5V −− THIS SHOULD ONLY HAPPEN IN REVERSE −− GO TO PROPEL SYSTEM TESTING 4-131 7100 330695 (8−11)
Page 300 P2−7 PROPEL) SQ/VAC LED SQ/VFAN P2−10 P2−8 LED #1 SCRUB1 P3−6 P2−11 P2−9 LED #2 BACK−UP SCRUB2 P2−12 P2−10 ALARM LED #3 SCRUB3 P2−13 P2−11 ES LED P2−14 P2−12 SOL. LOW SOL LOW P2−15 P2−16 43/ORA 4-132 7100 330695 (8−11)
Page 301: Touch Panel
SHOULD GO FROM +5V TO 0V WHEN ASSOCIATED BUTTON IS PUSHED − ANY VOLTAGES LOW WHEN ITS BUTTON IS NOT PUSHED ? DISCONNECT 6 PIN RIBBON CABLE AND RECHECK PINS THAT FAILED − +5V @ THOSE PINS NOW ? 4-133 7100 330695 (8−11)
Page 302 BATT4 LED #1 P2−6 P3−6 P2−11 REC FULL LED #2 P2−7 BACK−UP P2−12 ALARM SQ/VFAN LED #3 P2−8 P2−13 SCRUB1 P2−9 ES LED P2−14 SOL. LOW SCRUB2 P2−10 P2−15 SCRUB3 P2−11 P2−16 P2−12 SOL LOW 43/ORA 4-134 7100 330695 (8−11)
Page 303 IS < 0.5V TO M3 CONNECTION(S) IF CONNECTIONS TO − SHOULD ONLY CONTACTOR BETWEEN FAN FAN MOTOR ARE HAPPEN IN REVERSE OKAY, REPLACE MOTOR(S) & CB6 GOOD, REPLACE − GOTO PROPEL M3 CONTACTOR REPAIR/REPLACE FAN MOTOR CONTROLLER TESTING 4-135 7100 330695 (8−11)
Page 304 P2−7 PROPEL) SQ/VAC LED SQ/VFAN P2−10 P2−8 LED #1 SCRUB1 P3−6 P2−11 P2−9 LED #2 BACK−UP SCRUB2 P2−12 P2−10 ALARM LED #3 SCRUB3 P2−13 P2−11 ES LED P2−14 P2−12 SOL. LOW SOL LOW P2−15 P2−16 43/ORA 4-136 7100 330695 (8−11)
Page 305 ELECTRICAL 4-137 7100 330695 (8−11)

Tennant 7100 Service Manual

Section 1

Section 2

Chassis

Introduction

Quick Links

Chapters

Need help?

Questions and answers

Related Manuals for Tennant 7100

Summary of Contents for Tennant 7100

Table of Contents
