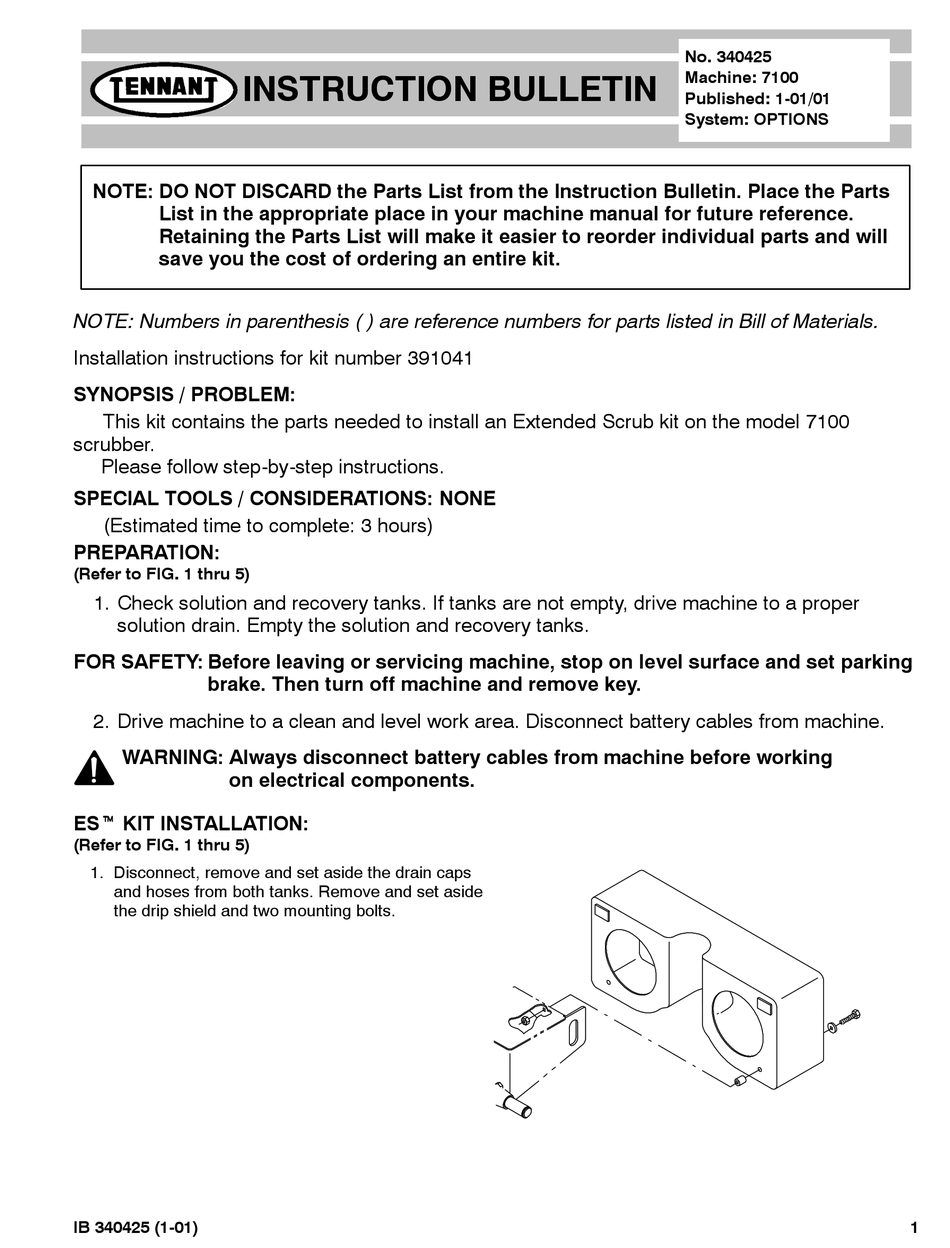

INSTRUCTION BULLETIN
NOTE: DO NOT DISCARD the Parts List from the Instruction Bulletin. Place the Parts
List in the appropriate place in your machine manual for future reference.
Retaining the Parts List will make it easier to reorder individual parts and will
save you the cost of ordering an entire kit.
NOTE: Numbers in parenthesis ( ) are reference numbers for parts listed in Bill of Materials.
Installation instructions for kit number 391041
SYNOPSIS / PROBLEM:

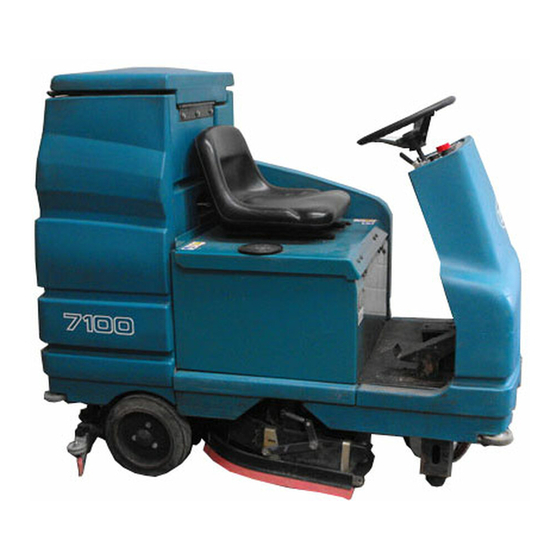

This kit contains the parts needed to install an Extended Scrub kit on the model 7100
scrubber.
Please follow step-by-step instructions.
SPECIAL TOOLS / CONSIDERATIONS: NONE
(Estimated time to complete: 3 hours)
PREPARATION:
(Refer to FIG. 1 thru 5)
1. Check solution and recovery tanks. If tanks are not empty, drive machine to a proper
solution drain. Empty the solution and recovery tanks.
FOR SAFETY: Before leaving or servicing machine, stop on level surface and set parking
brake. Then turn off machine and remove key.
2. Drive machine to a clean and level work area. Disconnect battery cables from machine.
WARNING: Always disconnect battery cables from machine before working
on electrical components.
ESt t t t KIT INSTALLATION:
(Refer to FIG. 1 thru 5)
1. Disconnect, remove and set aside the drain caps
and hoses from both tanks. Remove and set aside
the drip shield and two mounting bolts.
IB 340425 (1-01)
No. 340425
Machine: 7100
Published: 1-01/01
System: OPTIONS
1
