Tennant 7200 Operator's Manual

Rider scrubber
Hide thumbs Also See for 7200:
Table of Contents

Advertisement

Quick Links

See also: Service Manual

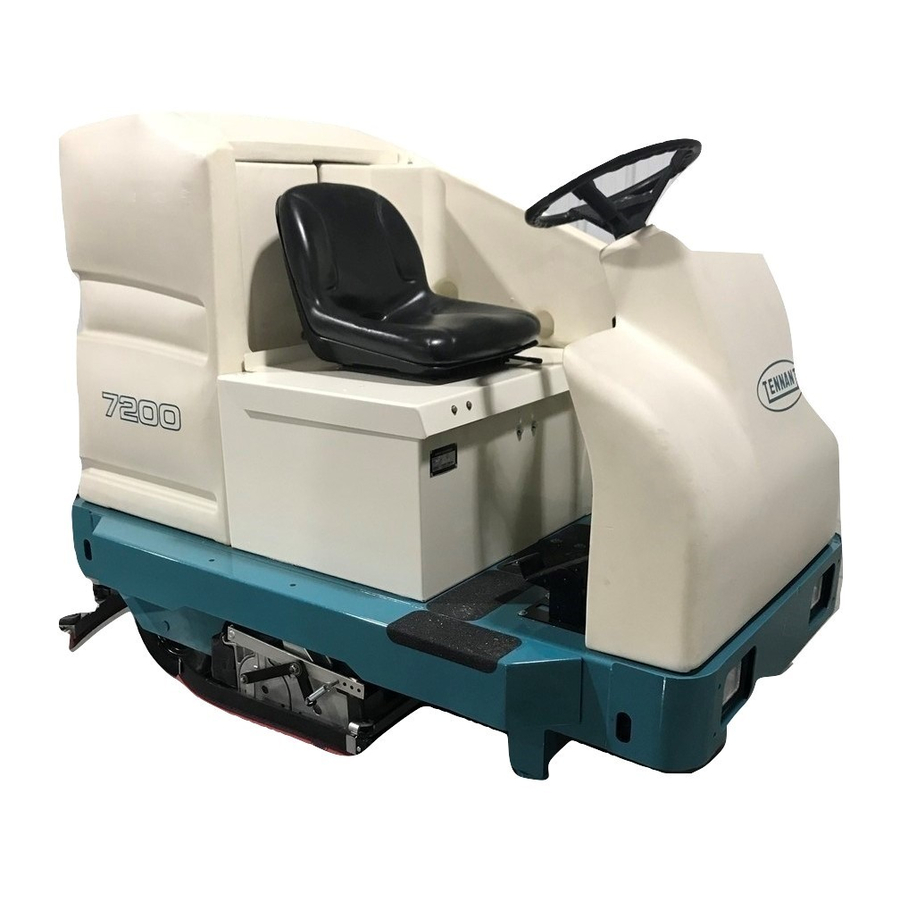

7200
Rider Scrubber
Operator Manual
The Safe Scrubbing Alternative
R
330040
North America / International
Rev. 12 (4-2007)
*330040*
www.tennantco.com
Home
Find... Go To..

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 7200 and is the answer not in the manual?

Questions and answers

Related Manuals for Tennant 7200

Summary of Contents for Tennant 7200

  • Page 1 7200 Rider Scrubber Operator Manual The Safe Scrubbing Alternative 330040 North America / International Rev. 12 (4-2007) *330040* www.tennantco.com Home Find... Go To..
  • Page 2 ES is a United States registered trademark of the Tennant Company Pre--Sweep, FaST and “The safe scrubbing alternative” are United States trademarks of Tennant Company. Specifications and parts are subject to change without notice. Copyright E 1997--2002, 2004--2007 TENNANT, Printed in U.S.A.

  • Page 3: Table Of Contents

    FaST SYSTEM AIR PUMP FILTER STOP THE MACHINE ....POST-OPERATION CHECKLIST ..7200 330040 (3- -06) Home Find... Go To..
  • Page 4 INDEX ....... . . 7200 330040 (9- -05) Home Find... Go To..

  • Page 5: Safety Precautions

    - - Turn off machine and remove key. This machine is designed solely for scrubbing dirt 5. When servicing machine: and dust in an indoor environment. Tennant does - - Avoid moving parts. Do not wear loose not recommend using this machine in any other jackets, shirts, or sleeves when environment.
  • Page 6 ON THE UNDERSIDE OF THE TANK COVER AND ON THE LEFT SIDE OF THE OPERATOR COMPARTMENT. FLAMMABLE SPILLS LABEL - - LOCATED ON THE SEAT SUPPORT. FOR SAFETY LABEL - - LOCATED ON THE SEAT SUPPORT. 350656 7200 330040 (2- -04) Home Find... Go To..

  • Page 7: Operation

    We recommend taking advantage 07324 of a regularly scheduled service contract from your TENNANT representative. - Order parts and supplies directly from your authorized TENNANT representative. Use the parts manual provided when ordering parts. 7200 330040 (6- -98) Home Find... Go To..

  • Page 8: Machine Components

    D. Vacuum fan inlet screen E. Rear squeegee F. Side squeegee G. Scrub head H. Pre- -Sweep assembly (option) Pre- -Sweep side brush (es) (option) J. Batteries K. FaST PAK L. FaST solution system 7200 330040 (9- -05) Home Find... Go To..

  • Page 9: Control Panel Symbols

    Circuit breaker #7 FaST Circuit breaker #8 Recovery tank full Circuit breaker #9 Solution flow Circuit breaker #10 Pre--Sweep (option) Circuit breaker #11 Dust control (option) Circuit breaker #12 Circuit breaker #1 7200 330040 (9- -05) Home Find... Go To..

  • Page 10: Controls And Instruments

    U. Brake pedal V. Circuit breakers W. Horn button X. Dust control switch (option) Y. Pre- -Sweep switch (option) Z. Side brush pedals (option) AA.Parking brake light (For machines serial number 010515 and above) 7200 330040 (3- -06) Home Find... Go To..

  • Page 11: Operation Of Controls

    Neutral position when you take your foot off the directional pedal. When the directional pedal returns to the neutral position, the scrub brushes will stop and after a short delay, the scrub head will raise. 7200 330040 (12- -01) Home Find... Go To..

  • Page 12: Brake Pedal

    PARKING BRAKE LIGHT (For machines serial number 010515 and above) The parking brake light comes on when the parking brake is set. The light will go out when the parking brake is released. 7200 330040 (3- -06) Home Find... Go To..

  • Page 13: Key Switch

    Off: Press the bottom of the operating lights switch. HOURMETER The hourmeter records the number of hours the machine has been operated. Check the hourmeter regularly; this information is used to determine when to perform routine machine maintenance. 7200 330040 (12- -01) Home Find... Go To..

  • Page 14: Operator Seat

    NOTE: When using the FaST system, the solution flow lever is nonfunctional. The FaST system flow rate is pre- -set. 7200 330040 (9- -05) Home Find... Go To..

  • Page 15: Scrubbing Switch

    The indicator light will illuminate when the squeegee is lowered. Raise squeegee and turn vacuum fan off: Press the switch. The indicator light will go out when the squeegee is raised. 7200 330040 (12- -01) Home Find... Go To..

  • Page 16: Es Switch (Option)

    Drain, rinse and refill the solution tank with clear cool water only before operating the FaST system. Conventional cleaning detergents/ restorers may cause failure to the FaST solution system. 7200 330040 (4- -07) Home Find... Go To..

  • Page 17: Recovery Tank Full Indicator

    NOTE: The reading on the battery discharge indicator may not be accurate when the machine is first powered on. Operate the machine for a few minutes before reading the charge level of the batteries. 7200 330040 (2- -04) Home Find... Go To..

  • Page 18: (For Machines Serial Number 008300 And Above)

    Raise brush: Press the top pedal all the way down with the toe of your foot. The side brush will raise to the off position and stop sweeping. Release the pedal and the pedal will lock automatically. 7200 330040 (9- -05) Home Find... Go To..

  • Page 19: Circuit Breakers

    Heavy duty vacuum fan 25 A RH Scrub brush motor 25 A LH Scrub brush motor CB10 25 A Pre--Sweep (option) CB11 10 A FaST System CB12 10 A Pre--Sweep Side brush motors (option) 7200 330040 (9- -05) Home Find... Go To..

  • Page 20: Fuse

    Circuit Protected FU-1 80 A Propelling STEERING WHEEL The steering wheel controls the machine’s direction of travel. Left: Turn the steering wheel to the left. Right: Turn the steering wheel to the right. 7200 330040 (12- -01) Home Find... Go To..

  • Page 21: Squeegee Wheel Cams

    Decrease down pressure: Remove spring from pin and move the pin toward the front of the machine into a new setting. Re--attach spring to pin. NOTE: Adjust the side squeegee down pressure controls equally. 7200 330040 (12- -01) Home Find... Go To..

  • Page 22: How The Machine Works

    The two available scrub head types use disk or cylindrical brushes. NOTE: The amount and type of soilage play an important role in determining the type of brushes to be used. For specific recommendations, contact your Tennant representative. 7200 330040 (9- -05) Home Find... Go To..

  • Page 23: Fast Scrubbing System

    Conventional cleaning detergents/ restorers may cause failure to the FaST solution system. NOTE: Storage or transporting machines equipped with FaST in freezing temperatures requires special procedures. Check with a TENNANT representative for advice. 7200 330040 (4- -07) Home Find... Go To..

  • Page 24: Pre-Operation Checklist

    - FaST Scrubbing: Check that solution tank is filled with clear cool water only. - Pre--Sweep machines: Empty the Pre--Sweep debris hopper. Check the dust control water reservoir. 7200 330040 (9- -05) Home Find... Go To..

  • Page 25: Installing Fast Pak Agent

    FaST PAK bag. NOTE: If any dried concentrate is visible on the supply hose connector or the on the FaST PAK connector, soak and clean with warm water. 7200 330040 (9- -05) Home Find... Go To..

  • Page 26: Starting The Machine

    2. Turn the machine power on. 3. Release the machine parking brake. 4. Drive the machine to the area to be cleaned. NOTE: The machine will not travel unless the operator is sitting in the operator’s seat. 7200 330040 (2- -04) Home Find... Go To..

  • Page 27: Filling The Tanks

    Tennant representative. WARNING: Flammable materials can cause an explosion or fire. Do not use flammable materials in tank(s). FOR SAFETY: When using machine, follow mixing and handling instructions on chemical containers. 7200 330040 (2- -04) Home Find... Go To..
  • Page 28 NOTE: When cleaning using FaST USE CLEAR COOL WATER ONLY. DO NOT add cleaning detergents in solution tank. Conventional cleaning detergents/restorers may cause failure to the FaST solution system. 9. Lower the tank cover. 7200 330040 (9- -05) Home Find... Go To..

  • Page 29: Scrubbing

    1. Start the machine. 2. Drive the machine to the area to be scrubbed. 3. Pre--sweep machines: Press the top of the Pre--sweep switch to lower the Pre--sweep assembly. 7200 330040 (9- -05) Home Find... Go To..
  • Page 30 5. Press the ES switch (option) if extended scrubbing is necessary. 6. FaST SCRUBBING: Press the FaST switch to enable the FaST system. See the FaST SWITCH section of the manual. 7. Press the scrubbing switch. 7200 330040 (9- -05) Home Find... Go To..
  • Page 31 9. Press the lower side brush pedal to lower the side brush (option). 10.Drive the machine forward and scrub as required. WARNING: Flammable materials or reactive metals can cause an explosion or fire. Do not pickup. 7200 330040 (9- -05) Home Find... Go To..

  • Page 32: Double Scrubbing

    Drive the machine slowly on inclines. FOR SAFETY: When using machine, go slow on inclines and slippery surfaces. The maximum rated climb and descent incline with empty tanks is 8_, with full tanks is 4_. 7200 330040 (9- -05) Home Find... Go To..

  • Page 33: Stop Scrubbing

    2. Pre--sweep machines: Press the bottom of the dust control switch to stop the dust control (option). 3. Pre--sweep machines: Press the bottom of the Pre--sweep switch to stop the Pre--sweep assembly. 7200 330040 (9- -05) Home Find... Go To..
  • Page 34 4. Press the top side brush pedal to raise the side brush (option). 5. When the squeegee raises, take your foot off the directional pedal. 6. Press the brake to stop the machine. 7200 330040 (12- -01) Home Find... Go To..

  • Page 35: Draining And Cleaning The Tanks

    4. Set the parking brake. FOR SAFETY: Before leaving or servicing machine, stop on level surface, set parking brake, turn off machine, and remove key. 7200 330040 (9- -05) Home Find... Go To..
  • Page 36 Slide the hose assembly back into the machine and secure by tightening the retaining ring. 7200 330040 (9- -05) Home Find... Go To..
  • Page 37 WARNING: Flammable materials can cause an explosion or fire. Do not use flammable materials in tank(s). 7200 330040 (9- -05) Home Find... Go To..
  • Page 38 NOTE: The scrub head must be lowered approximately 25 mm (1 in) to remove debris trough. NOTE: The debris trough can be removed from the right hand side of the machine only. 7200 330040 (12- -01) Home Find... Go To..

  • Page 39: Stop The Machine

    2. Press the brake to stop the machine. 3. Turn the machine power off. 4. Set the parking brake. FOR SAFETY: Before leaving or servicing machine, stop on level surface, set parking brake, turn off machine, and remove key. 7200 330040 (12- -01) Home Find... Go To..

  • Page 40: Post-Operation Checklist

    - Check the service records to determine maintenance requirements. - FaST scrubbing: If FaST PAK is empty after scrubbing, install the new FaST PAK or connect the supply hose to the storage plug. 7200 330040 (9- -05) Home Find... Go To..

  • Page 41: Options

    4. Press the top side brush pedal all the way down with the toe of your foot to raise the side brush, engage the pedal lock and stop sweeping. 7200 330040 (12- -01) Home Find... Go To..

  • Page 42: Pre--Sweep (For Machines Serial Number 008300 And Above)

    3. Press the top of the dust control switch to start the dust control system. NOTE: The dust control system will only operate if the Pre- -Sweep option is on. 7200 330040 (9- -05) Home Find... Go To..

  • Page 43: To Empty The Pre--Sweep

    2. Press the top of the Pre--Sweep switch to lower the Pre--Sweep assembly. 3. Turn the machine power off. FOR SAFETY: Before leaving or servicing machine, stop on level surface, set parking brake, turn off machine, and remove key. 7200 330040 (9- -05) Home Find... Go To..
  • Page 44 5. Pivot the side brush arms out away from the machine. 6. Lift the Pre--Sweep debris hopper and remove it from the Pre--Sweep assembly. 7. Empty the debris hopper. Replace the debris hopper in the Pre--Sweep assembly. 7200 330040 (9- -05) Home Find... Go To..

  • Page 45: To Remove The Pre--Sweep

    4. Disconnect the Pre--Sweep harness from the main harness. 5. Open the front access cover and remove the hardware mounting the Pre--Sweep to the machine frame. 6. Move the machine away from the Pre--Sweep assembly. 7200 330040 (9- -05) Home Find... Go To..

  • Page 46: To Mount The Pre--Sweep

    4. Set the Pre--Sweep assembly in place with the plate clamps. Shift the assembly right or left so the mounting holes line up in front of the machine. 5. Insert and tighten the mounting hardware. 7200 330040 (9- -05) Home Find... Go To..
  • Page 47 7. Turn the machine power on. Check the Pre--Sweep assembly for proper operation. 8. Check the main brush and side brush pattern. Refer to the Pre--Sweep section in the MAINTENANCE section of the manual 7200 330040 (9- -05) Home Find... Go To..

  • Page 48: Power Wand

    2. Set the parking brake. FOR SAFETY: Before leaving or servicing machine, stop on level surface, set parking brake, turn off machine, and remove key. 7200 330040 (12- -01) Home Find... Go To..
  • Page 49 5. Push the power wand solution line into the quick-- connect fitting on the machine. Pull on the hose to make sure it is connected. 7200 330040 (12- -01) Home Find... Go To..
  • Page 50 Scrub the floor with the brush side of the cleaning tool. 10. Vacuum up the solution by turning over the cleaning tool so the squeegee side is down. 06202 7200 330040 (12- -01) Home Find... Go To..
  • Page 51 13. Turn the machine power off. 14. Disconnect the solution hose from the machine. 15. Disconnect the power wand from the squeegee suction hose. 16. Reconnect the squeegee suction hose to the squeegee. 7200 330040 (12- -01) Home Find... Go To..

  • Page 52: Vacuum Wand

    2. Set the parking brake. FOR SAFETY: Before leaving or servicing machine, stop on level surface, set parking brake, turn off machine, and remove key. 7200 330040 (12- -01) Home Find... Go To..
  • Page 53 3. Remove the squeegee suction hose from the top of the squeegee. 4. Put together the wand and the wand hose. 10080 5. Attach the squeegee suction hose to the end of the vacuum hose. 7200 330040 (12- -01) Home Find... Go To..
  • Page 54 7. Press the squeegee switch. 8. Vacuum the floor. 9. Turn the machine power off. 10. Disconnect the vacuum hose from the squeegee suction hose. 06599 11. Reconnect the squeegee suction hose to the squeegee. 7200 330040 (12- -01) Home Find... Go To..

  • Page 55: Rollout Battery

    4. Unplug the machine connector from the batteries. 5. Push the battery cart to the operators side of the machine. Line up the battery cart locks and the slots on the machine. Push the battery cart forward. 7200 330040 (12- -01) Home Find... Go To..
  • Page 56 Then tighten the jam nuts. Lower battery cart rollers: With a wrench, loosen the jam nut and turn the bolt counter--clockwise. Then tighten the jam nuts. 7200 330040 (12- -01) Home Find... Go To..
  • Page 57 10. Raise the machine’s battery stop arm all the way to the vertical position. 11. Raise the cart’s battery stop bar by pushing down on the handle. 7200 330040 (12- -01) Home Find... Go To..
  • Page 58 This will keep the batteries from rolling off the cart when moving. 14. Release the battery cart from the machine by pushing the battery cart locks towards the inside of the battery cart. 7200 330040 (12- -01) Home Find... Go To..
  • Page 59 16. Pull the battery cart away from the machine. 17. Reverse the previous steps to re--install batteries in the machine. 7200 330040 (12- -01) Home Find... Go To..

  • Page 60: Machine Troubleshooting

    Uneven brush pressure, level scrub head Broken brush drive belts on cylindrical scrub head, replace belt Check with TENNANT representative for advice Low battery charge Charge batteries until the charger automatically turns off 7200 330040 (9- -05) Home Find... Go To..
  • Page 61 Clogged flow control Remove and clean orifice/screen orifice/screen Faulty pump or air compressor Contact Tennant representative Clogged filter screen Drain solution tank, remove and clean filter screen Faulty detergent timer module Contact Tennant representative 7200 330040 (9- -05) Home Find... Go To..

  • Page 62: Maintenance

    MAINTENANCE MAINTENANCE 350790 7200 330040 (2- -04) Home Find... Go To..

  • Page 63: Maintenance Chart

    ..Distilled water . . . Special lubricant, Lubriplate EMB grease (TENNANT part no. 01433--1) ..SAE 90 weight gear lubricant NOTE: Also check procedures indicated (H) after the first 50 hours of operation.

  • Page 64: Lubrication

    STEERING CASTER PIVOT BEARING The steering caster bearing is located on the floorplate. Lubricate with Lubriplate EMB grease (TENNANT part no. 01433--1) every 100 hours. REAR SQUEEGEE CASTERS The rear squeegee casters are located on the back side of the rear squeegee. The rear squeegee casters each have two grease fittings.

  • Page 65: Batteries

    If needed, add just enough distilled water to cover the plates. Never add acid to the batteries. Do not overfill. Always keep the battery caps on, except when adding water or taking hydrometer readings. 7200 330040 (12- -01) Home Find... Go To..

  • Page 66: Charging The Batteries

    3. Lift the operator seat to access the batteries. The support arm automatically engages when the seat is lifted all the way up. 4. Check the water level in all battery cells. 7200 330040 (12- -01) Home Find... Go To..
  • Page 67 5. Unplug the machine connector from the batteries. 6. Plug the charger connector into the battery connector. WARNING: Batteries emit hydrogen gas. Explosion or fire can result. Keep sparks and open flame away. Keep covers open when charging. 7200 330040 (12- -01) Home Find... Go To..
  • Page 68 7. Plug the battery charger into the wall outlet. NOTE: If the red “ABNORMAL CYCLE” lamp lights when the TENNANT charger is plugged into a wall outlet, the charger cannot charge the battery and there is something wrong with the battery.

  • Page 69: Self--Diagnostic Test

    ES pump turns on and off. D If the machine has FaST, the FaST system turns on and off. D The vacuum fan starts and shuts off. D The brushes turn on and off. 7200 330040 (9- -05) Home Find... Go To..
  • Page 70 Be sure to record which pressure indicators illuminate when each switch is held down. Contact service personnel with the error code data. 5. Turn off the self--diagnostic test by turning off the machine power. 7200 330040 (9- -05) Home Find... Go To..

  • Page 71: Electric Motors

    3. Turn the machine power off and set the parking brake. FOR SAFETY: Before leaving or servicing machine, stop on level surface, set parking brake, turn off machine, and remove key. 7200 330040 (9- -05) Home Find... Go To..
  • Page 72 6. Slide the new side brush onto the side brush drive shaft. 7. Insert the side brush retaining pin through the side brush hub and shaft. Replace the cotter pin in the end of the retaining pin. 7200 330040 (12- -01) Home Find... Go To..

  • Page 73: Pre--Sweep Cylindrical Brush

    A polish mark will remain on the floor. 5. Raise the Pre--Sweep assembly and move the machine away from the chalked area. Turn the machine power off. 7200 330040 (9- -05) Home Find... Go To..
  • Page 74 B. Turn the machine power on and lower the Pre--Sweep assembly. Allow the brush to float in place for 15 to 20 seconds. C. Tighten the two lock nuts on the left hand brush arm. 7200 330040 (9- -05) Home Find... Go To..

  • Page 75: Replacing The Pre--Sweept

    FOR SAFETY: Before leaving or servicing machine, stop on level surface, set parking brake, turn off machine, and remove key. 4. Loosen and remove the brush idler hex screw from the front of the idler plate. 7200 330040 (9- -05) Home Find... Go To..
  • Page 76 8. Replace the brush idler plate, and secure with the four brush housing door knobs and hex screw on the front of the idler plate. 9. Check the new brush for proper adjustment. Readjust if necessary. 7200 330040 (12- -01) Home Find... Go To..

  • Page 77: Scrub Brushes

    3. Raise the side squeegee and lock in the up position using the side squeegee lock arm. 7200 330040 (12- -01) Home Find... Go To..
  • Page 78 8. While pressing the brush spring clip together with your thumb and index finger, lift the scrub brush onto the drive plug. 9. Check to make sure the brush is securely mounted on the brush drive hub. 7200 330040 (12- -01) Home Find... Go To..
  • Page 79 MAINTENANCE 10. Unlock the side squeegee lock plate and the side squeegee will return to the down position. 11. Repeat for the other brush. 7200 330040 (12- -01) Home Find... Go To..

  • Page 80: Cylindrical Scrub Brushes

    A polish mark will remain on the floor. 4. Raise the scrub head and move the machine away from the chalked area. Turn the machine power off. 7200 330040 (12- -01) Home Find... Go To..
  • Page 81 B. While holding the flat end of the idler shaft with a wrench, loosen the mounting screw on the outside of the idler door. 7200 330040 (12- -01) Home Find... Go To..
  • Page 82 Level the scrub head by turning the scrub head links. Both scrub head links should be adjusted equally. Check the brush patterns again and readjust as necessary until both patterns are the same. 7200 330040 (12- -01) Home Find... Go To..

  • Page 83: Replacing The Cylindrical Scrub Brushes

    Pull the bottom of the door outward, then pull the idler door and idler plug off the brush. 5. Pull the old brush out of the scrub head. 7200 330040 (12- -01) Home Find... Go To..
  • Page 84 The idler door of that side of the scrub head is stamped with the same letter. Make sure the letter on the door matches the letter on the scrub head when replacing the doors. 7200 330040 (12- -01) Home Find... Go To..

  • Page 85: Solution System

    NOTE: DO NOT use steam to clean the tanks. Excessive heat can damage the tanks and components. Thoroughly rinse the sensor floats inside the recovery tank after each use. 7200 330040 (12- -01) Home Find... Go To..

  • Page 86: Solution Tank

    If the filter becomes dirty, the solution flow will be reduced. Check and clean this filter regularly. NOTE: DO NOT use steam to clean the tanks. Excessive heat can damage the tanks and components. 7200 330040 (9- -05) Home Find... Go To..

  • Page 87: Fast System

    Remove and clean out the air filter with compressed air after every 200 hours of FaST scrubbing. FOR SAFETY: When servicing machine, stop on level surface, wear eye protection when using pressurized air. 7200 330040 (9- -05) Home Find... Go To..

  • Page 88: Rear Squeegee Assembly

    2. Turn the machine power off and set the parking brake. 3. Remove the squeegee suction hose from the squeegee. 4. Remove both squeegee mounting knobs. 5. Pull the squeegee off the machine. 7200 330040 (12- -01) Home Find... Go To..

  • Page 89: Replacing The Rear Squeegee Assembly

    6. Drive the machine forward with the squeegee down to check the squeegee blade deflection. 7. Readjust the squeegee blade deflection if necessary. 7200 330040 (12- -01) Home Find... Go To..

  • Page 90: Adjusting Rear Squeegee Blade Deflection

    Turn the squeegee deflection cams counter--clockwise to increase blade deflection. 6. Drive the machine forward again to check the squeegee blade deflection. 7. Readjust the squeegee blade deflection if necessary. 7200 330040 (12- -01) Home Find... Go To..

  • Page 91: Adjusting The Squeegee Guide Roller

    FOR SAFETY: Before leaving or servicing machine, stop on level surface, set parking brake, turn off machine, and remove key. 3. Loosen the two retainer knobs, one at each end of the squeegee. 7200 330040 (12- -01) Home Find... Go To..
  • Page 92 6. Insert the rotated or new squeegee blade and then insert the retainer band. 7. Tighten the two retainer knobs until the ends of the front and rear squeegee blades touch. Do not over--tighten. 7200 330040 (12- -01) Home Find... Go To..

  • Page 93: Replacing Or Rotating The Front Squeegee Blade

    10. Install the squeegee assembly on the squeegee pivot. See REPLACING THE SQUEEGEE ASSEMBLY. 11. Adjust the squeegee blade leveling and deflection as stated in LEVELING THE REAR SQUEEGEE and ADJUSTING REAR SQUEEGEE BLADE DEFLECTION. 7200 330040 (3- -01) Home Find... Go To..

  • Page 94: Side Squeegee Blades

    4. Slide a new squeegee blade into the frame. 5. Replace the retainer bracket, deflector, clevis pin, and cotter pin. 6. Repeat for the side squeegee on the other side of the scrub head. 7200 330040 (12- -01) Home Find... Go To..

  • Page 95: Skirts And Seals

    PRE- -SWEEP REAR SKIRT (OPTION) The Pre--Sweep rear skirt is located behind the recirculation skirt and main sweeping brush. Check the skirt for damage and wear after every 50 hours of operation. 7200 330040 (9- -05) Home Find... Go To..

  • Page 96: Belts And Chains

    Proper belt tension is a 2 mm (.08 in) deflection from a force of 0.76 to 0.8 kg (1.7 to 1.8 lb) at the belt midpoint. Check the belt tension and wear every 100 hours of operation. 7200 330040 (9- -05) Home Find... Go To..

  • Page 97: Static Drag Chain

    3 to 6 mm (0.1 to 0.3 in) between the steering sprocket and the idler sprocket when the steering wheel is turned as far as it will go in either direction. 7200 330040 (12- -01) Home Find... Go To..

  • Page 98: Tires

    FOR SAFETY: Use truck or trailer that will support the weight of the machine. NOTE: Empty the recovery and solution tanks before transporting the machine. 7200 330040 (11- -02) Home Find... Go To..
  • Page 99 5. Set the parking brake, lower the scrub head and block the machine tires. Tie down the machine to the truck or trailer before transporting. The front tie-down locations are the holes in the front side of the machine frame. 7200 330040 (12- -01) Home Find... Go To..

  • Page 100: Machine Jacking

    FOR SAFETY: When servicing machine, block machine tires before jacking machine up. FOR SAFETY: When servicing machine, jack machine up at designated locations only. Block machine up with jack stands. 7200 330040 (12- -01) Home Find... Go To..

  • Page 101: Storage Information

    5. The washer solution does not need to be drained from the solution tank. NOTE: Storage or transporing machines equipped with FaST in freezing temperatures requires special procedures. Check with a TENNANT representative for advice. 7200 330040 (9- -05) Home...

  • Page 102: Specifications

    Travel Speed 9.6 Km (6 mph) Maximum rated climb and descent angle for transport 8_@ gross weight Maximum rated climb and descent angle for scrubbing Maximum rated climb and descent angle for trailering 7200 330040 (9- -05) Home Find... Go To..

  • Page 103: Power Type

    Detergent to water dilution ratio 1:1000 Detergent flow rate 1.14 CC/Minute (0.038 Ounces/Minute) Air pump 36 Volt DC, 0.6 Maximum Amp Draw Air pump flow rate 8.7 LPM (0.3 CFM) open flow 7200 330040 (9- -05) Home Find... Go To..

  • Page 104: Machine Dimensions

    (80.0 in) 1360 mm (53.5 in) 1092 mm 405 mm (43.0 in) (16.0 in) 810 mm 1830 mm (72.0 in) (32.0 in) 915 mm SIDE VIEW (36.0 in) FRONT VIEW 350790 MACHINE DIMENSIONS 7200 330040 (9- -05) Home Find... Go To..

  • Page 105: Index

    Solution flow lever, 12 Squeegee switch, 13 Steering wheel, 18 Controls and instruments, 8 Hourmeter, 11 Cylindrical brushes, Replacing brushes, 81 How the machine works, 20 Cylindrical scrub brushes, Checking and adjusting brush pattern, 78–80 7200 330040 (3- -06) Home Find... Go To..
  • Page 106 Machine tie down location, 97 Maintenance, 60–84 Adjusting rear squeegee blade deflection, 88 Adjusting squeegee guide rollers, 89 Batteries, 63 Belts and chains, 94 Charging batteries, 64 Checking and adjusting Pre--Sweep brush pattern, 71–73 7200 330040 (3- -06) Home Find... Go To..
  • Page 107 Pre--operation checklist, 22 Pre--Sweep (option), 40 Dust control switch, 16 Emptying the debris hopper, 41 Pre--Sweep switch, 16 Pre--Sweep assembly Installation, 44 Removal, 43 Pre--Sweep assembly installation, 44 Pre--Sweep assembly removal, 43 7200 330040 (3- -06) Home Find... Go To..
  • Page 108 Machine performance, 100 Power type, 101 Tires, 101 Squeegee Adjusting deflection, 19 Adjusting guide rollers, 89 Front blade rotation or replacement, 91 Leveling knob, 19 Recommended amount, 88 Squeegee leveling knob, 19 7200 330040 (3- -06) Home Find... Go To..
