INSTRUCTION BULLETIN
NOTE: DO NOT DISCARD the Parts List from the Instruction Bulletin. Place the Parts
List in the appropriate place in your machine manual for future reference.
Retaining the Parts List will make it easier to reorder individual parts and will
save you the cost of ordering an entire kit.
NOTE: Numbers in parenthesis ( ) are reference numbers for parts listed in Bill of Materials.
Installation instructions for kit number 387467
SYNOPSIS / PROBLEM:
This kit contains the parts needed to replace a standard drain assembly with an ESt drain
assembly on the model sweeper/scrubber.
Please follow step-by-step instructions.
SPECIAL TOOLS / CONSIDERATIONS: NONE
(Estimated time to complete: 0.5 hour)
PREPARATION:
(Refer to FIG. 1)
FOR SAFETY: Before leaving or servicing machine, stop on level surface and set parking
brake. Then turn off machine and remove key.
1. The tank should be empty before replacing drain assembly. Check and drain tank if
necessary.
2. Remove the old drain assembly from the tank.
INSTALLATION:
(Refer to FIG. 1)

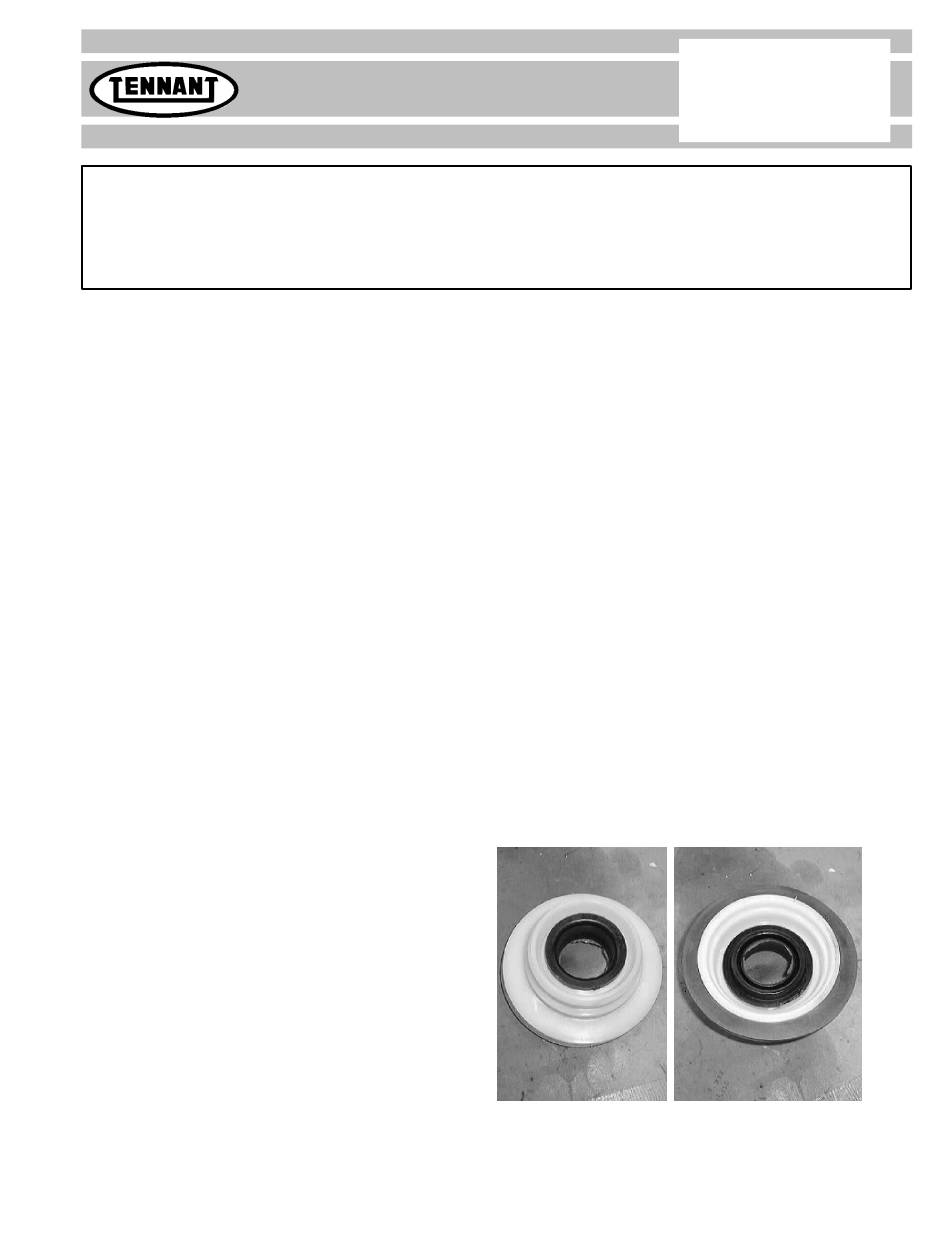

1. Mount the hose seal (10) in the center of the cover
insert (11). Mount the lid gasket (8) around the edge
of the cover insert (11). (Refer to FIG. 1)
IB 340460 (1-01)
No. 340460
Machine: 7300/8300
Published: 1-01/01
System: OPTIONS
1
Advertisement
Related Manuals for Tennant 7300
Summary of Contents for Tennant 7300
- Page 1 No. 340460 Machine: 7300/8300 INSTRUCTION BULLETIN Published: 1-01/01 System: OPTIONS NOTE: DO NOT DISCARD the Parts List from the Instruction Bulletin. Place the Parts List in the appropriate place in your machine manual for future reference. Retaining the Parts List will make it easier to reorder individual parts and will save you the cost of ordering an entire kit.
- Page 2 2. Slide the lid gasket (16) over the hose, and onto the end of the drain hose assembly (17). (Refer to FIG. 1) 3. Install the new lid assembly onto the drain hose assembly (17). (Refer to FIG. 1) 4. Mount the hose clamp (12) to the end of the drain hose assembly (17) with the hex screw (13), flat washers (14) and lock nut (15).
- Page 3 6. Mount the cap gasket (3) inside of the tank drain cap (2) with the retaining ring (4). Secure the tank drain cap to the retaining strap (5). (Refer to FIG. 1) 7. Install the new drain assembly in place of the old assembly.
- Page 4 Screw, hex, M05 X 0.8 X 25, Ss 01683 Washer, flt, #10 Ss 09739 Nut, hex, lock, M05 X 0.8, NI, Ss 41451 Gasket, lid 386423 Hose assy, drain TENNANT COMPANY P. O. Box 1452 Minneapolis, MN 55440-1452 IB 340460 (1-01)
