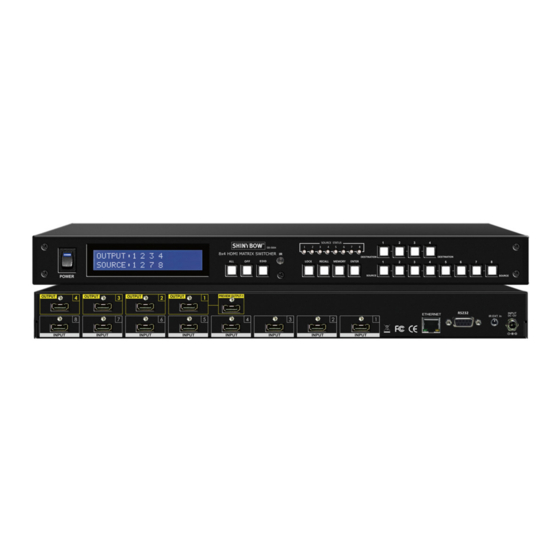

SB-5684LCM
8x4 +1 Preview Port HDMI Matrix Routing Switcher
w/ Full EDID Management/Learning
IMPORTANT WARRANTY INFORMATION.
If you remove the HDMI screw posts, you must use the provided HDMI Locking
Post replacement screws to keep the internal HDMI jack secure. Removing the
HDMI screws without installing the HDMI Locking Post replacement screws will
void your warranty.
Advertisement
Table of Contents
Related Manuals for Shinybow USA SB-5684LCM
Summary of Contents for Shinybow USA SB-5684LCM

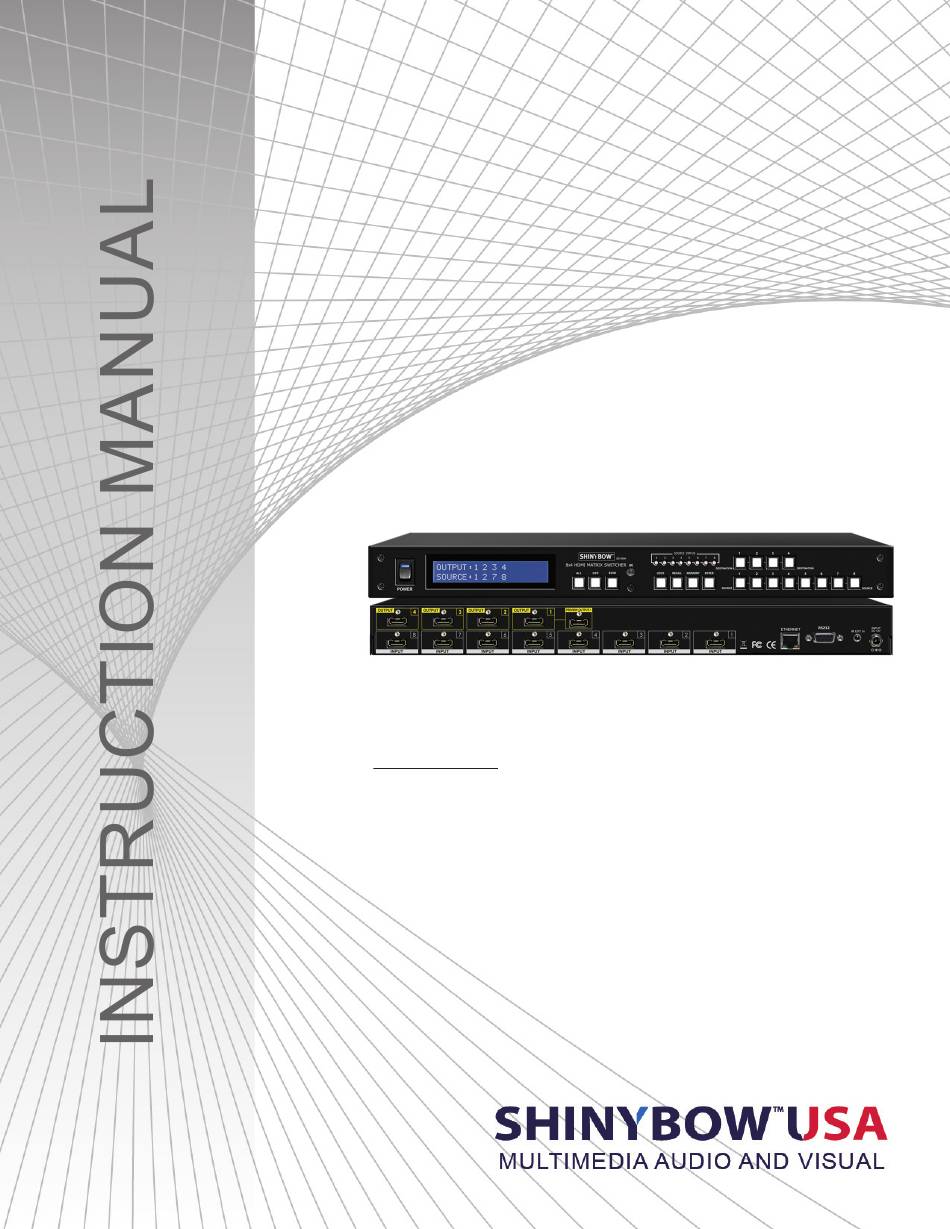

- Page 1 SB-5684LCM 8x4 +1 Preview Port HDMI Matrix Routing Switcher w/ Full EDID Management/Learning IMPORTANT WARRANTY INFORMATION. If you remove the HDMI screw posts, you must use the provided HDMI Locking Post replacement screws to keep the internal HDMI jack secure. Removing the HDMI screws without installing the HDMI Locking Post replacement screws will void your warranty.
- Page 2 SAFETY INFORMATION To ensure the best results from this product, please read this manual and all other documentation before operating your equipment. Retain all documentation for future reference. Follow all instructions printed on unit chassis for proper operation. To reduce the risk of fire, do not spill water or other liquids into or on the unit, or operate the unit while standing in liquid. Make sure power outlets conform to the power requirements listed on the back of the unit.
-
Page 3: Table Of Contents
HDMI Outputs and (1) Preview Output (same as Output-01). weight to be placed upon it or any person walk on it. The SB-5684LCM is based on the HDMI standards and supports • To protect the unit from overheating, do not block any vents or full resolution HDMI video with embedded EDID. -
Page 4: Introduction & Contents
FEATURES FEATURES • (8) HDMI digital source devices matrix switched to (4) HDMI devices • HDMI digital video w/ embedded audio, DVI format and CEC/HDCP 1.3 compliant • (7) function key control and (7) worldwide EDID modes for HDTV resolutions •... -
Page 5: Features & Specifications
SPECIFICATIONS SPECIFICATIONS • Type of Switcher: (8) HDMI Inputs to (4) HDMI Outputs Matrix Switcher • HDMI Support: HD 1080p@60Hz, H36-bit Deep color, 3D (1.4a) formats • HDCP / CEC Support: HDCP 1.3 Compliant, CEC Compliant • Video Bandwidth: Double Data Rates: 340MHz, Total 6.75Gbps bandwidth • Digital Video Support: Full HD resolution: 480i / 480p / 720p / 1080i / 1080p • Digital Audio Support: Multi Audio Formats 5.1 / 7.1, MAT(MLP), Dolby Digital, Dolby TrueHD, Dolby Digital Plus, DTS, DTS-ES 6.1, DTS-HD, DTS-HD-HRA, DTS-HD Master, (PCM-2CH) -
Page 6: Front Panel
FRONT PANEL FRONT PANEL 1. POWER SWITCH: The power switch turns the unit on and off. The LCM will illuminate red to indicate that the switcher is ON and is receiving power. The switcher will remember the last state during a power cycle. When power is removed and resorted, the last configuration will be evoked. - Page 7 FRONT PANEL FRONT PANEL 8. FUNCTION KEY - ALL: Disables (mutes) video on all destinations OR Selects the same source to all destinations. Option 1 - Press ALL followed by OFF button. The display will show “0“ indicating all destinations have no video selected.
- Page 8 FRONT PANEL FRONT PANEL 12. FUNCTION KEY - MEMORY: The system will show stored presets, up to a total of (12). Presets are stored in local memory using Source keys 1 thru 8 or Destination keys 1 thru 4 as the memory preset location. - Configure desired matrices.
-
Page 9: Back Panel
BACK PANEL BACK PANEL 1. DC POWER INLET: POWER JACK: The switcher is fitted with a DC power plug input connector. Ensure that the outlet is of an approved type and is of sufficient DC Jack - Inner OD Ø 2.1mm (+) current carrying connector capacity with the correct voltage and connector Outside OD Ø... -
Page 10: Remote Control
REMOTE CONTROL Before making any connections observe the following: • Ensure the main voltage supply matches the label on the supplied plug-pack (+/-10%). • Ensure that the power switch is OFF. • Ensure that all system grounds (earth) are connected to a common point. •... - Page 11 REMOTE PROTOCOL COMMANDS IR REMOTE CUSTOM AND DATA CODES (NEC Standard) HOW TO SETUP IR CODES : CUSTOM CODE : 1FE0 DATA CODE : POWER ON: 1FE0 A15E ALL: 1FE0 B04F RECALL: 1FE0 B24D POWER OFF: 1FE0 A25D OFF: 1FE0 B14E MEMORY: 1FE0...
-
Page 12: Rs-232 Serial Interface
ETHERNET & RS-232 SERIAL INTERFACE ETHERNET SERIAL INTERFACE CONNECT A PC OR CONTROL SYSTEM VERSION COMPATIBLE V2.0 For a complete list of commands, please reference external document extended Ethernet Protocol Instruction Manual. ETHERNET SERIAL INTERFACE ETHERNET REFERENCE TXOP TX + TXON TX - RXIP... -
Page 13: Edid Functions
EDID FUNCTION - SYSTEM RESET/FACTORY RESET SYSTEM RESET SYSTEM RESET RETURN SWITCH TO FACTORY DEFAULTS RECALL > OFF > ENTER RESET to Factory Default Press 1. Press RECALL button: The LCM will show the current stored presets status. 2. Press OFF button: The LCM will show “SYSTEM RESET” 3. - Page 14 EDID FUNCTION EDID FUNCTION SETUP EDID SETUP To Change The EDID Setup Step 1. Press the EDID button The display will show the currently selected EDID mode. Step 2. Press SOURCE #1 OR #2 button row The button will flash blue and the display will show the current Embedded EDID Status. Step 3.
- Page 15 EDID FUNCTION EDID FUNCTION: (8) EMBEDDED EDID MODES EDID FUNCTION: (8) EMBEDDED EDID MODES Mode 1. FSS (Fast Speed Start Video Support: All resolutions up to and including 1080p. ® ® Automatic capture of the most suitable EDID from Destination to Source. Mode 2.
- Page 16 EDID FUNCTION EDID FUNCTION FOR HDMI MATRIX SWITCHER LEARNING EDID Learning EDID from Destination to Source Learning EDID setup Press: EDID > DESTINATION #1 > The switcher will LEARN destination #1 EDID and pass the selected source. EDID > DESTINATION > SOURCE > ENTER Press NOTE: The already learned EDID cannot be modified.
-
Page 17: Ir Extender
IR EXTENDER IR EXTENDER 1. SB-100 IR 300M Receiver Switcher IR EXT. In Cable (3C) IR Receiver (SB-100) Distance: Max.300M IR PN#: SB-XXXX R oHS /95/E C INP UT R S -232 IR E XT. in DC 12V IR Rx RS - 232 IR EXT . -
Page 18: Typical Application
TYPICAL APPLICATION INSTALLING DIAGRAM Sample Connection: Using RS-232 serial interface or Ethernet TCP/IP to control switch (SB-5684LCM) and preview output port simultaneously via Output-#1 to an extra HDMI HDTV, Display or Monitor. NOTE: 1. IR Control Projector Over HDBaseT Extender: ™... - Page 19 TYPICAL APPLICATION INSTALLING DIAGRAM Sample Connection: Using an Audio Extractor (SB-5609) to an Audio Amplifier and ARC Control Box (SB-5610) to link the TV return audio to an audio device. Control a Satellite Receiver source via a HDBaseT Transmitter (SB-6335T) and Receiver (SB-6335R). ™...
- Page 20 THIS PAGE IS INTENTIONALLY LEFT BLANK.
- Page 21 THIS PAGE IS INTENTIONALLY LEFT BLANK.
- Page 22 THIS PAGE IS INTENTIONALLY LEFT BLANK.
- Page 23 LIMITED WARRANTY PLEASE READ THE FOLLOWING TERMS AND CONDITIONS CAREFULLY BEFORE USING THIS HARDWARE, COMPONENTS AND SOFTWARE PROVIDED BY, THROUGH OR UNDER SHINYBOWUSA, INC (COLLECTIVELY, THE “PRODUCT”). By using installing or using the Product, you unconditionally signify your agreement to these Terms and Conditions. If you do not agree to these Terms and Conditions, do not use the Product and return the Product to SHINYBOWUSA, Inc.
- Page 24 122 Rose Ln. Suite 303 | Frisco, Texas 75034 1-877-SHINY-USA 1-877-744-6987 1-972-377-2508 sales@shinybowusa.com www.shinybowusa.com...
