C4.
MOUNT THE MICROWAVE
OVEN (cont.)
5
Insert 2 self-aligning screws
through outer top cabinet
holes. Turn two full turns on
each screw.
7 Tighten the outer two screws to the top of the
microwave oven. (While tightening screws, hold
the microwave oven in place against the wall and
the top cabinet.)
8
Install grease filters. See the Use & & & & a nd Care
packed with the microwave.

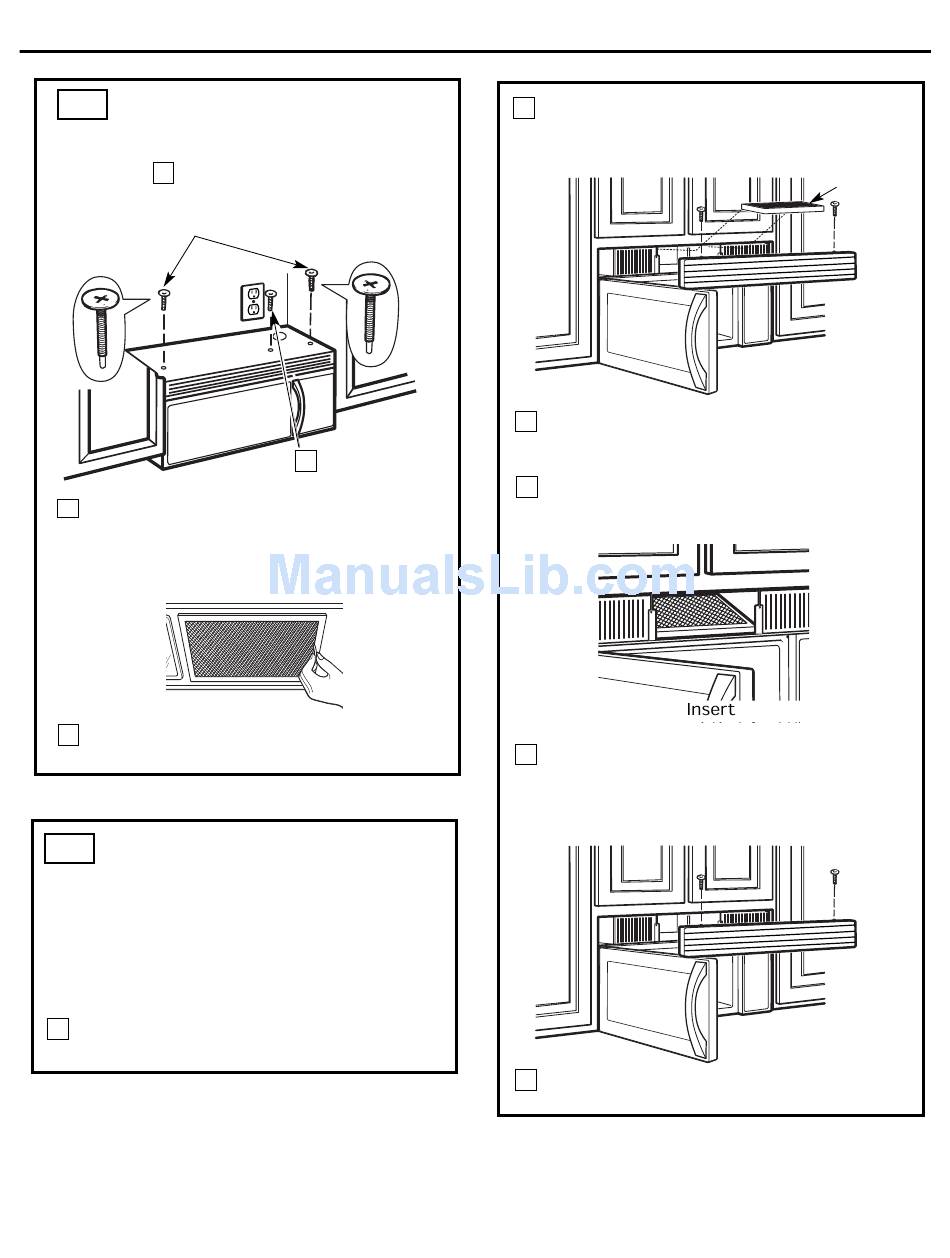

C5. INSTALLING OR CHANGE
THE CHARCOAL FILTER
(Some Models)
NOTE: The charcoal filter is factory installed in some
models. Refer to the Use and Care to see if yours is
factory installed and for replacement information.
Follow these steps to replace or install a charcoal filter.
1
Unplug microwave oven or disconnect power.
Installation Instructions
6
Tighten center
screw completely.
EN-22
2
Open the microwave door and remove the two
vent mounting screws ; l ocated on top of the
microwave using a #1 Phillips screwdriver.
3
Tip forward. Lift out to remove vent.
4
Install the charcoal filter.
5
Reinstall the vent by sliding the bottom of the
vent into place. Push the vent top into position
and slide right into place. Replace the two vent
mounting screws located on top of the microwave
using a #1 Phillips screwdriver.
6
C lose the microwave door. Plug in microwave
oven or reconnect power.
Charcoal
Filter
