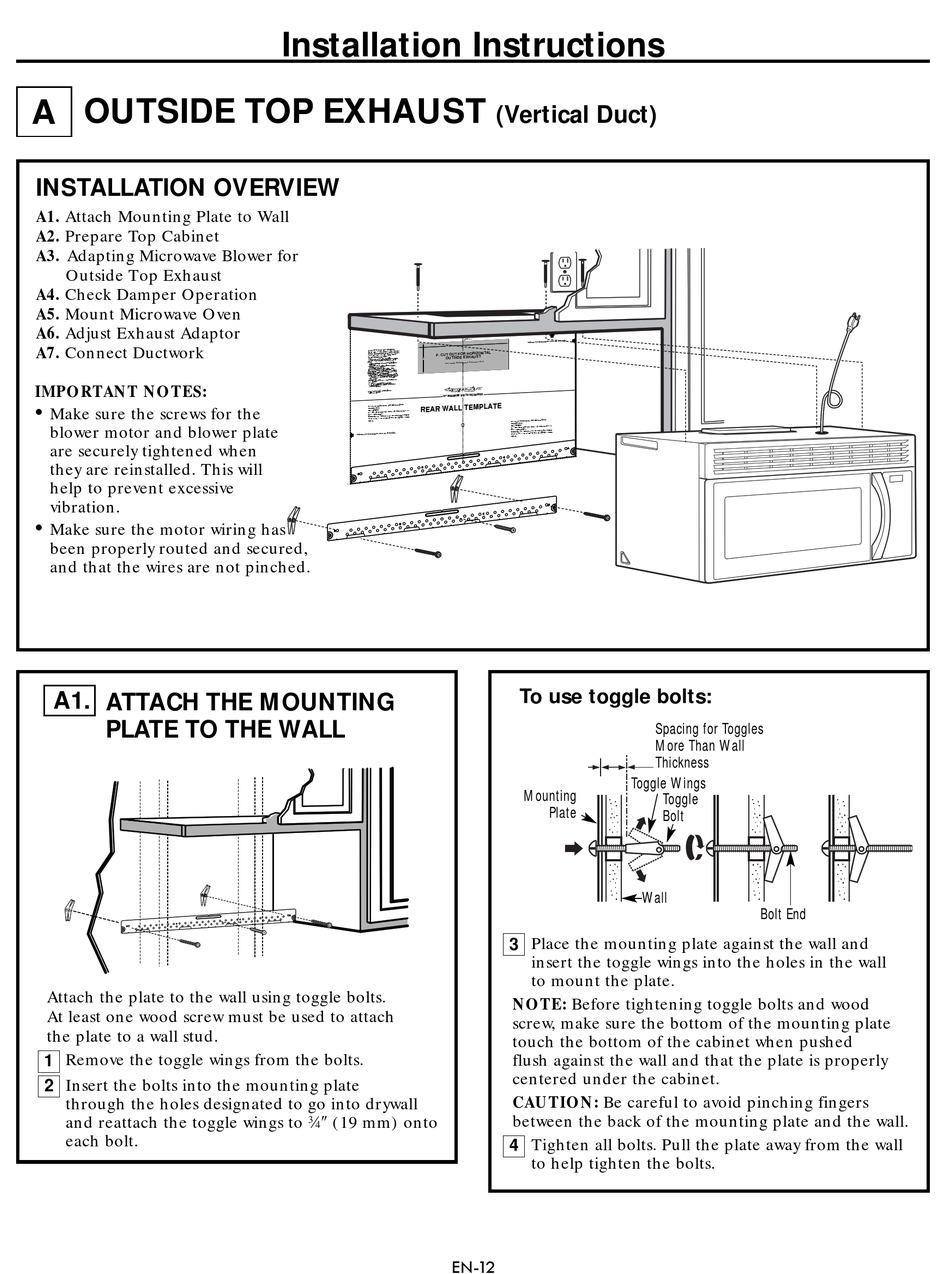

OUTSIDE TOP EXHAUST
A

INSTALLATION OVERVIEW

A1. Attach Mounting Plate to Wall
A2. Prepare Top Cabinet
A3.
Adapting Microwave Blower for
Outside Top Exhaust
A4. Check Damper Operation
A5.
Mount Microwave Oven
A6.
Adjust Exhaust Adaptor
A7. Connect Ductwork
IMPORTANT NOTES:
Make sure the screws for the
blower motor and blower plate
are securely tightened when
they are reinstalled. This will
help to prevent excessive
vibration.
Make sure the motor wiring has
been properly routed and secured,
and that the wires are not pinched.
A1.
ATTACH THE MOUNTING
PLATE TO THE WALL
Attach the plate to the wall using toggle bolts.
At least one wood screw must be used to attach
the plate to a wall stud.
1
Remove the toggle wings from the bolts.
2
Insert the bolts into the mounting plate
through the holes designated to go into drywall
and reattach the toggle wings to
each bolt.
Installation Instructions
12"
TO
NOTE: IT IS VERY IMPORTANT
THE DIRECTIONS
READ AND FOLLOW
   
N INSTRUCTION S
IN THE INSTALLATIO
BEFORE PROCEEDING
WITH THIS
   
REAR WALL TEMPLATE.
serves to position the bottom
4"
This Rear Wall Template
mounting plate and to locate
the horizontal exhaust
outlet.
1. Use a level to check
that the template is positioned
 
accurately.
one stud on the left or
2. Locate and mark at least
right side of the centerline.
least one wood

I t is important to use at
screw mounted firmly in
a stud to support the weight
two additional, evenly spaced
of the microwave. Mark
locations for the supplied
toggle bolts.
locations. Where there is
3. Drill holes in the marked
for wood screws. For holes
a stud, drill a 3/16" hole
that do not line up with a
stud, drill 5/8" holes for
toggle bolts.
D O NOT INSTALL THE
MOUNTING PLATE

AT THIS TIME.
4. Remove the template
from the rear wall.
Instruction book for your
5. Review the Installation
installation situation.
 
para consultar la
 
Darle vuelta a la hoja
 
versión en Español.
  
     
to align with holes in the
Locate and mark holes
mounting plate.
IMPORTANT:
STUD ON EITHER SIDE
OF
LOCATE AT LEAST ONE
THE CENTERLINE .
FOR 2 ADDITIONAL,
EVENLY
MARK THE LOCATION
IN THE MOUNTING PLATE
SPACED TOGGLE BOLTS
AREA.
along the dotted line.
Trim the rear wall template
3
" (19 mm) onto
4
EN-12
(Vertical Duct)
3/8" TO EDGE
along the dotted line.
Trim the rear wall template

 
 
 


to align with holes in the
Locate and mark holes
mounting plate.
IMPORTANT:
STUD ON EITHER SIDE
OF
LOCATE AT LEAST ONE
THE CENTERLINE .
EVENLY
MARK THE LOCATION
FOR 2 ADDITIONAL,
IN THE MOUNTING PLATE
SPACED TOGGLE BOLTS
AREA.
To use toggle bolts:
Toggle Wings
Mounting
Plate
Wall
Place the mounting plate against the wall and
3
insert the toggle wings into the holes in the wall
to mount the plate.
NOTE: Before tightening toggle bolts and wood
screw, make sure the bottom of the mounting plate
touch the bottom of the cabinet when pushed
flush against the wall and that the plate is properly
centered under the cabinet.
CAUTION: Be careful to avoid pinching fingers
between the back of the mounting plate and the wall.
4
Tighten all bolts. Pull the plate away from the wall
to help tighten the bolts.
Spacing for Toggles
More Than Wall
Thickness
Toggle
Bolt
Bolt End
