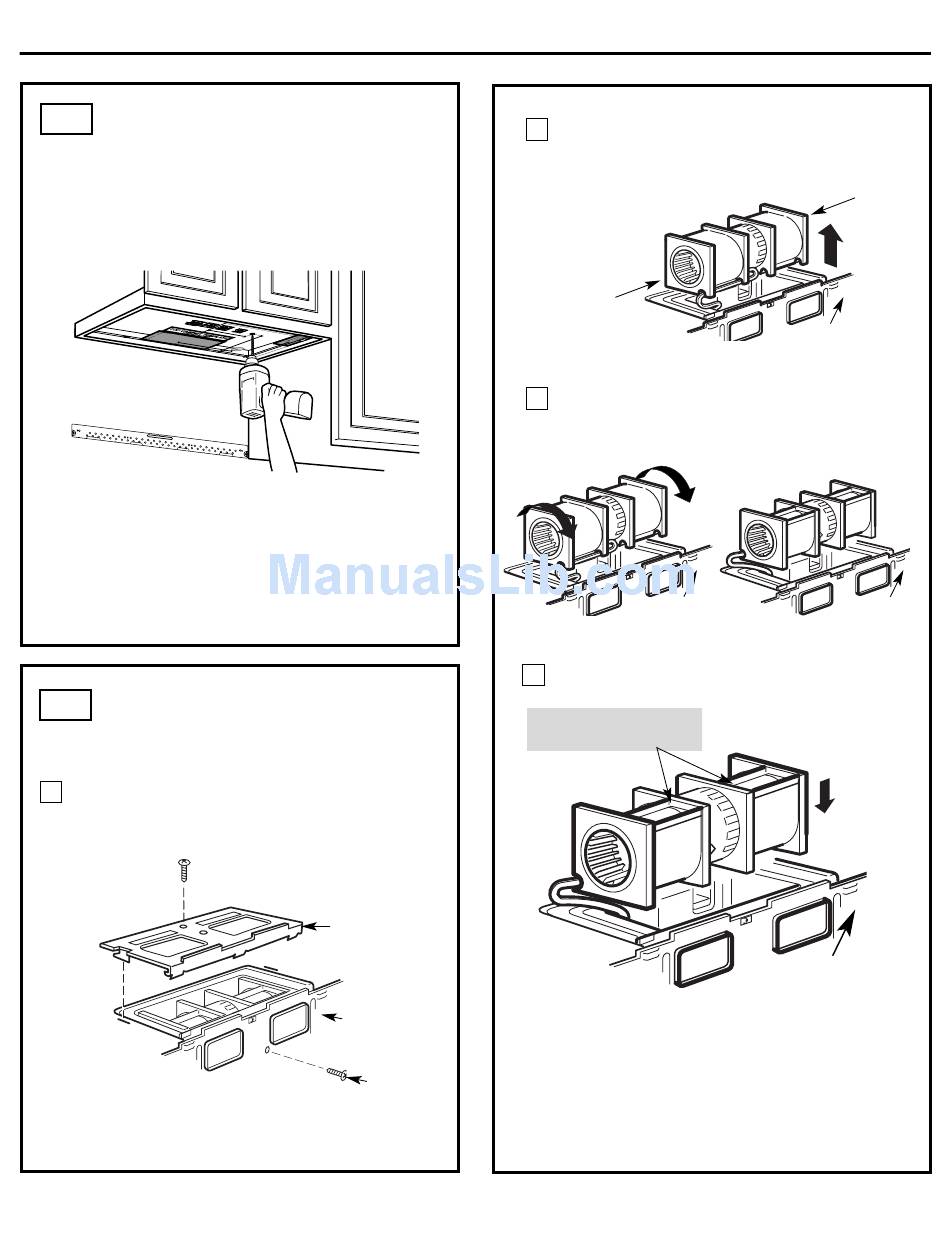

A2.
USE TOP CABINET TEMPLATE
FOR PREPARATION OF TOP
CABINET
You need to drill holes for the top support screws, a
hole large enough for the power cord to fit through,
and a cutout large enough for the exhaust adaptor.
Read the instructions on the TOP CABINET
TEMPLATE.
Tape it underneath the top cabinet.
Drill the holes, following the instructions on the
TOP CABINET TEMPLATE.
CAUTION: Wear safety goggles when drilling holes
in the cabinet bottom.
A3.
ADAPTING MICROWAVE
BLOWER FOR OUTSIDE
TOP EXHAUST
1
Place the microwave in its upright position,
with the top of the unit facing up.
Remove the screw that holds the blower plate
to the microwave. Remove and save the screw
holding the blower motor to the microwave.
Installation Instructions
Blower Plate
Back of
Microwave
Blower Motor
Screw
EN-13
2
Carefully pull out the blower unit. The wires
will extend far enough to allow you to adjust
the blower unit.
End A
Roll the blower unit 90° so that fan blade
3
openings are facing out the top of the
microwave.
Before Rotation
Back of
Microwave
4
Place the blower unit back into the opening.
AFTER: Fan Blade
Openings Facing Top
CAUTION: Do not pull or stretch the blower
unit wiring. Make sure the wires are not
pinched, and that they are properly secured.
End B
Back of
Microwave
After Rotation
Back of
Microwave
Back of
Microwave
