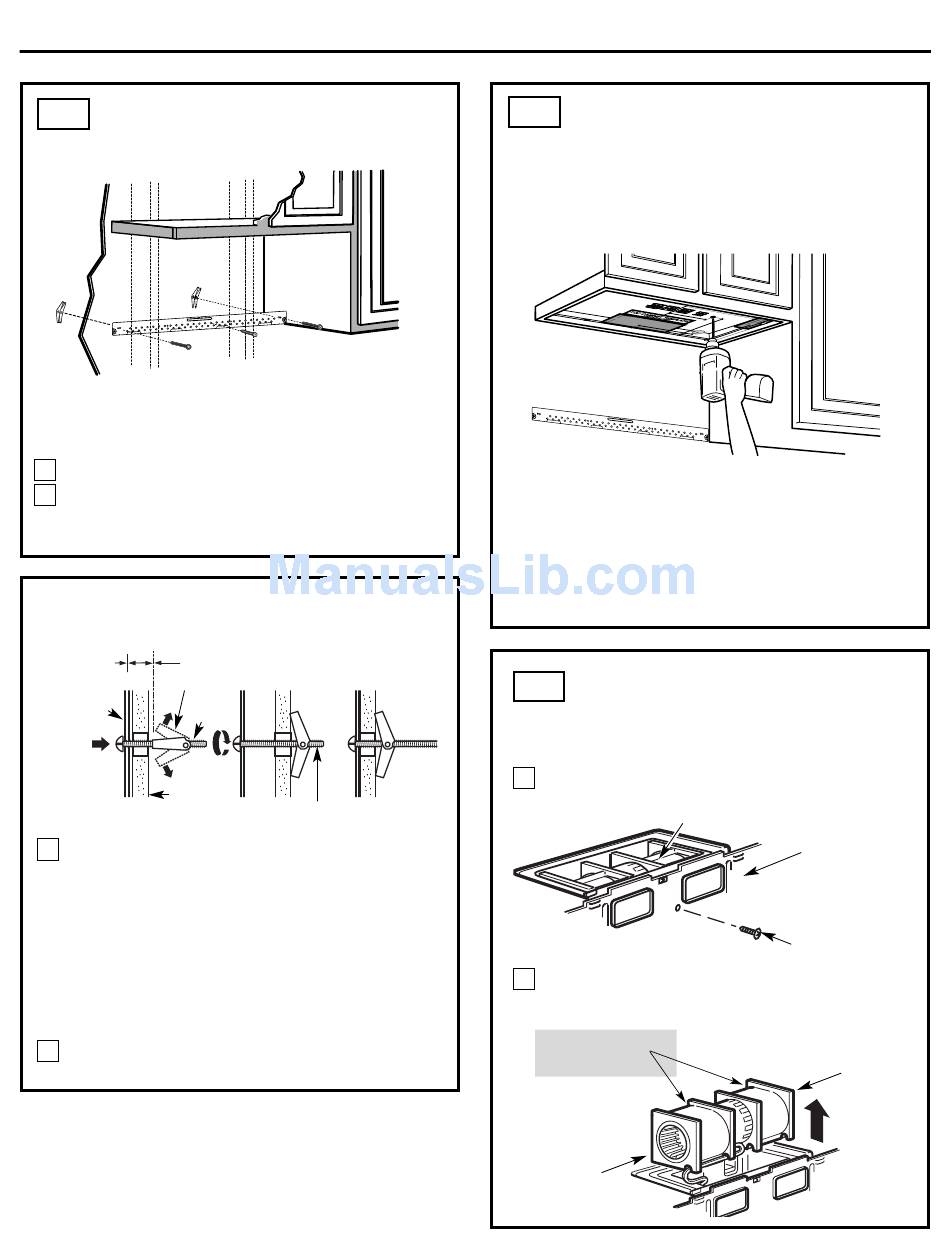

ATTACH THE MOUNTING
B3.
PLATE TO THE WALL
Attach the plate to the wall using toggle bolts.
At least one wood screw must be used to attach
the plate to a wall stud.
1
Remove the toggle wings from the bolts.
2
Insert the bolts into the mounting plate through
the holes designated to go into drywall and reattach
the toggle wings to
3
4
To use toggle bolts:
Spacing for Toggles More
Than Wall Thickness
Toggle Wings
Mounting
Toggle
Plate
Bolt
Wall
3
Place the mounting plate against the wall and
insert the toggle wings into the holes in the wall
to mount the plate.
NOTE: Before tightening toggle bolts and wood
screw, make sure the bottom of the mounting plate
touch the bottom of the cabinet when pushed flush
against the wall and that the plate is properly
centered under the cabinet.
CAUTION: Be careful to avoid pinching fingers
between the back of the mounting plate and the wall.
Tighten all bolts. Pull the plate away from the wall
4
to help tighten the bolts.
Installation Instructions
" (19 mm) onto each bolt.
Bolt End
B4.
USE TOP CABINET TEMPLATE
FOR PREPARATION OF TOP
CABINET
You need to drill holes for the top support screws and
a hole large enough for the power cord to fit through.
Read the instructions on the TOP CABINET
TEMPLATE.
Tape it underneath the top cabinet.
Drill the holes, following the instructions on the
TOP CABINET TEMPLATE.
CAUTION: Wear safety goggles when drilling holes
in the cabinet bottom.
B5.
ADAPTING MICROWAVE
BLOWER FOR OUTSIDE
BACK EXHAUST
1 Remove and save screw that holds blower motor
to microwave.
2
Carefully pull out the blower unit. The wires
will extend far enough to allow you to adjust
the blower unit.
Before: Fan Blade
Openings Facing
Forward
End A
EN-17
Blower Motor
Back of
Microwave
Blower Motor
Screw
End B
