Frigidaire PMOS198CAF - Professional 1.9 Cu. Ft. Over-the Range Microwave with Convection Manual

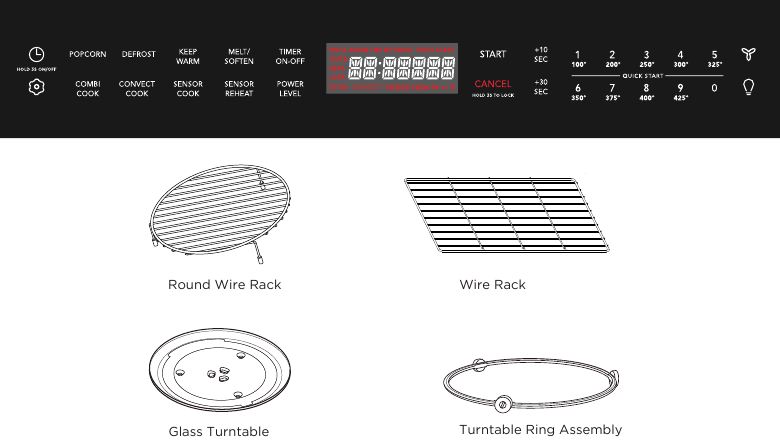

NAMES OF OVEN PARTS AND ACCESSORIES

NAMES OF OVEN PARTS AND ACCESSORIES

warning NOTE: The Round Wire Rack can be used for Convection cooking and Microwave Cooking functions.

warning NOTE: The wire rack can be used for microwave cooking only.

OPERATION

  • Before operating your new appliance make sure you read and understand this Use and Care Guide completely.
  • The clock can be disabled when the microwave is first plugged in and the CANCEL key is selected. To re-enable the clock follow clock instructions.

Setting the clock

Example: setting clock display for 9:00:

  1. Touch pad once.
  1. Enter time using number pads.
  1. Touch START pad.

Setting the clock ON/OFF

Example: to turn off clock display:

  1. Touch and hold pad.
  1. Time will display, after 3s, OFF will display.

Example: to turn on clock display:

  1. Hold the clock button for 3s and the clock will show in the display and when ON is shown in the display the clock will remain on.
  1. Tap the clock button to see the current time if the display is off.

CHILD LOCK

  • Suppose you want to lock or unlock the controls.
Touch: Display Shows:
  1. CANCEL (for 3 seconds)
(current time will display after 2 seconds)

VENT FAN

Touch: Display Shows:
  1. x 1
  1. x 2
  1. x 3
  1. x 4

SURFACE LIGHT

Touch: Display Shows:
  1. x 1
  1. x 2
  1. x 3

Convection Cooking

For Best Results...
Always use the round wire rack when convection cooking. Reduce package/recipe temperature 25°F for baked goods. The round wire rack is required for good air circulation and even browning.

Using convection with preheating

  • Suppose you want to convection cook at 400°F for 5 minutes with preheating.
Touch: Display Shows:
  1. CONVECT COOK
  1. START (When oven is preheated it will beep.)
  1. Temperature will display if no action is taken.
  1. Place food in oven and enter time
  1. START
Time counting down

Using convection without preheating

  • Suppose you want to convection cook at 400°F for 5 minutes without preheating.
Touch: Display Shows:
  1. CONVECT COOK x2
  1. START
  1. START
Time counting down

Broil-High

  • Suppose you want Broil-High for 10 minutes.
Touch: Display Shows:
  1. CONVECT COOK X3
  1. START
Time counting down

Broil-Low

  • Suppose you want to Broil-Low for 5 minutes.
Touch: Display Shows:
  1. CONVECT COOK X4
  1. START
Time counting down

KEEP WARM

  • Suppose you want to keep warm for 5 minutes.
Touch: Display Shows:
  1. KEEP WARM
  1. START
Time counting down

warning NOTE: When cooking is finished the oven will beep and the display will show REMOVE FOOD FAN COOLING. After the food is removed from the oven the display will continue to show FAN COOLING.

COMBI COOK
Suppose you want to Bake for 5 minutes at 250°F.

Touch: Display Shows:
  1. COMBI COOK X1
  1. START
  1. START
Time counting down

Power chart of bake

Degree(F) Press number Microwave
250 3 10%
300 4
325 5 (default)
350 6
375 7
400 8
425 9

Power chart of roast

Degree(F) Press number Microwave
300 4 30%
325 5
350 6 (default)
375 7
400 8
425 9

Using the +10 SEC /+ 30 SEC key
This feature will let you quickly start or add 10 or 30 seconds.

Touch the +10 SEC /+30 SEC pad to: +10 SEC / +30 SEC

  1. Start cooking for 10 seconds/30 seconds at 100% power level.
  2. Extend cooking time in multiples of 10 seconds/30 seconds each time this pad is touched during microwave cooking.

warning NOTE: Touch the +10 SEC or +30 SEC to add time to any cooking cycle in progress.

POPCORN

  • Suppose you want to cook 3.0 oz. popcorn.

Tab.1

Touch: Display Shows:
  1. POPCORN
  1. POPCORN
  1. START
 Time counting down

Tab.2

Touch POPCORN Amount
X1 3.3 oz
X2 3.0 oz
X3 1.75 oz

MELT/SOFTEN

  • Suppose you want to melt 2 sticks of Butter.

Tab.1

Touch: Display Shows:
  1. MELT /SOFTEN X1
  1. START
  1. START
 Time counting down

Tab.2

Touch MELT/ SOFTEN Food Amount
x1 Melt Butter 1 or 2 sticks
x2 Melt Chocolate 2/4/8 oz
x3 Soften Ice Cream Pint/1.5Quart
x4 Soften Cream Cheese 3 or 8 oz

DEFROST

  • Suppose you want to defrost 1.2 lbs of meat.

Tab.1

Touch: Display Shows:
  1. DEFROST X1
  1. START
  1. START
 Time counting down

Tab.2

Touch DEFROST Menu Amount
x1 Meat 0.1-6.0 lbs.
x2 Poultry 0.1-6.0 lbs.
x3 Fish 0.1-6.0 lbs.

SENSOR COOK

  • Suppose you want to cook a frozen dinner.
Touch: Display Shows:
  1. SENSOR COOK
  1. SENSOR COOK
  1. SENSOR COOK
  1. START

warning NOTE: When the food is near completion, the display will show time count down.

Touch sensor cook once, Bacon displays, then Touch start to enter the slice setting, 1-3 SLE will display, touch 1, 2, or 3 slices.

Touch SENSOR REHEAT Food Amount
X1 Bacon 1-3 slices
X2 Potato 1-4 pcs
X3 Frozen Dinner 10oz/20oz.
X4 Rice 1-2 cups
X5 Frozen Breakfast 8oz/12oz
X6 Fresh Veggie 1-4 CUPS
X7 Frozen Veggie 1-4 CUPS
X8 Fresh Pizza 12oz
X9 Frozen Pizza 12oz

SENSOR REHEAT

  • Suppose you want to reheat Pizza.
Touch: Display Shows:
  1. SENSOR REHEAT
  1. SENSOR REHEAT
  1. SENSOR REHEAT
  1. START

warningNOTE: When the food is near completion, the display will show time count down.

Touch SENSOR REHEAT Food Amount
X1 Beverage 1-2 Cups
X2 Soup/Sauce 1-2 Cups
X3 Pizza 2-3 Slices
X4 Dinner Plate 1-2 Plate
X5 Casserole 10.5 oz Serving
X6 Rolls 1-3 Pieces

USING ONE TOUCH START

Touch 1 - 9 for 1 - 9 minutes microwave cooking. The cooking will start 2 seconds after your selection.

  • Suppose you want to microwave for 3 minutes.
Touch: Display Shows:

Time counting down automatically after 2 seconds

warning NOTE: Touch the +10 SEC or +30 SEC to add time to any cooking cycle in progress.

warning NOTE: "Food" will be displayed if a quick start cooking cycle or +10 SEC / +30 SEC key is touch more than 5 minutes after the door of microwave oven is closed. You must open then close the door again to clear "Food" from the display.

MULTI-STAGE COOKING

For best results, some recipes call for different power levels during a cook cycle. You can program your microwave for two power level stages during the cooking cycle.

  • Suppose you want to set a 2-stage cook cycle. The first stage is a 3 minute cook time at 80% cook power then a 7 minute cook time at 50% cook power.
Touch: Display Shows:

  1. To set a 3 minute cook time for first stage.
  1. POWER LEVEL X3

  1. To set a 7 minute cook power for the second stage.
  1. POWER LEVEL X6
  1. START
Time counting down

warning NOTE: At the end of 3 minutes the display will change to 7 minutes.

warning NOTE: Defrost and auto menu can not be set in multistage cook.

SETTING THE TIMER

  • Your microwave oven can be used as a kitchen timer. You can set up to 99:99. The kitchen timer can be used while the microwave oven is running.
  • Suppose you want to set a timer for 10:59.
Touch: Display Shows:
  1. TIMER ON-OFF
  1. TIMER ON-OFF
(Timer counts down)

warning NOTE: There are not any other programs during the kitchen timer.
During the process of setting the timer, if you touch CANCEL or there is not any operation in 5 minutes, the oven will enter to waiting state.

warning NOTE: The display will return to default setting after 15 minutes if a cooking cycle is stopped and not restarted.

MICROWAVE AT LOWER POWER LEVEL

Your Over the Range Microwave Oven can be programmed for 99 minutes 99 seconds (99:99). Always enter the seconds after the minutes, even if they are both zeros.

  • Suppose you want to cook for 2 minutes at 90% power.
Touch: Display Shows:
  1. POWER LEVEL
  1. POWER LEVEL
  1. START
Time counting down

POWER CHART

TOUCH POWER LEVEL DISPLAY
POWER LEVEL x 1 100% PL-HI
POWER LEVEL x 2 90% PL-90
POWER LEVEL x 3 80% PL-80
POWER LEVEL x 4 70% PL-70
POWER LEVEL x 5 60% PL-60
POWER LEVEL x 6 50% PL-50
POWER LEVEL x 7 40% PL-40
POWER LEVEL x 8 30% PL-30
POWER LEVEL x 9 20% PL-20
POWER LEVEL x 10 10% PL-10
POWER LEVEL x 11 0% PL-0

USER SETTING

Volume

  • Suppose you want to set the volume for "off".
Touch: Display Shows:
  1. x1
    The display will scroll.
    When you see the desired setting touch Start.
  1. START

TURNTABLE ON/OFF

Touch: Display Shows:
  1. x 2
  1. START

SETTING WEIGHT LB/KG

  • Suppose you want to change from lb to kg.
Touch: Display Shows:
  1. x3
  1. START

DEMO SETTING

  • Suppose you want to turn on Demo Mode.
Touch: Display Shows:
  1. x6
  1. START

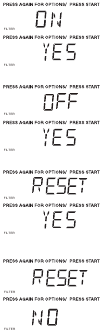

SETTING FILTER

Tab.1

Touch: Display Shows:
  1. x5
    The display will scroll.
    When you see the desired setting touch Start.
  1. START

Tab.2

On yes FILTER indicator light on by default for recirculation. The FILTER indicator light will track the vent fan on time.
Off yes Turn off the FILTER indicator light when vented to outside. The FILTER indicator light will not track the vent vent fan on time.
Reset yes Reset FILTER Indicator
The filter indicator light on the display will track the vent fan on time.
When it is time to change the charcoal filter, the FILTER indicator light will come on.
Use RESET YES to reset the vent motor tracking time and to turn off the FILTER indicator light.
Reset no Will not reset the time for FILTER indicator light.

SETTING LANGUAGE

  • When previous language is English, suppose you want to set the language.
Touch: Display Shows:
  1. x 4
  1. START

When the setting is completed, the current time will display 2 seconds later, if the time is not set, the oven will return to waiting state.

warning NOTE: When START is pressed and the previous setting was English it will be set to French. If you want switch back to English you will have to again press START four times and then press START.

MAINTENANCE

Troubleshooting
Check your problem by using the chart below and try the solutions for each problem. If the microwave oven still does not work properly, contact the nearest authorized service center.

TROUBLE POSSIBLE CAUSE POSSIBLE REMEDY
Oven will not start
  • Electrical cord for oven is not plugged in.
  • Door is open.
  • Cord not plugged in.
  • Plug into the outlet.
  • Close the door and try again.
Arcing or sparking
  • Materials to be avoided in microwave oven were used.
  • The oven is operated when empty.
  • Spilled food remains in the cavity.
  • Use microwave-safe cookware only.
  • Do not operate with oven empty.
  • Clean cavity with wet towel.
Unevenly cooked foods
  • Materials to be avoided in microwave oven were used.
  • Food is not defrosted completely.
  • Cooking time, power level is not suitable.
  • Food is not turned or stirred.
  • Use microwave-safe cookware only.
  • Completely defrost food.
  • Use correct cooking time, power level.
  • Turn or stir food.
Overcooked foods
  • Cooking time, power level is not suitable.
  • Use correct cooking time, power level.
Undercooked foods
  • Materials to be avoided in microwave oven were used.
  • Food is not defrosted completely.
  • Oven ventilation ports are restricted.
  • Cooking time, power level is not suitable.
  • Use microwave-safe cookware only.
  • Completely defrost food.
  • Check to see that oven ventilation ports are not restricted.
  • Use correct cooking time, power level.
Improper defrosting
  • Materials to be avoided in microwave oven were used.
  • Cooking time, power level is not suitable.
  • Food is not turned or stirred.
  • Use microwave-safe cookware only.
  • Use correct cooking time, power level.
  • Turn or stir food.

CLEANING AND CARE

warning Disconnect the power cord or leave the door open to deactivate the oven during cleaning. Disconnect the power cord before replacing filters and lights.

EXTERIOR

The outside surface is precoated steel and plastic. Clean the outside with mild soap and water; rinse and dry with a soft cloth. Do not use any type of household or abrasive cleaner.

DOOR

Wipe the window on both sides with a soft cloth to remove any spills or spatters. Metal parts will be easier to maintain if wiped frequently with a soft cloth. Avoid the use of spray and other harsh cleaners as they may stain, streak or dull the door surface.

EASY CARE™ STAINLESS STEEL / SMUDGE _PROOF™ STAINLESS STEEL / BLACK STAINLESS STEEL

(SOME MODELS)

Your microwave oven(some models) may have a Stainless Steel finish or coating. Clean the stainless with warm soapy water using a clean sponge or cloth. Rinse with clean water and dry with a soft clean cloth. DO NOT use ANY store bought cleaners like Stainless Steel cleaners or any other types of cleaners containing any abrasive, chlorides, chlorines or ammonia. It is recommended to use mild dish soap and water or a 50/50 solution of water and vinegar.

TOUCH CONTROL PANEL

Care should be taken in cleaning the touch control panel. If the control panel becomes soiled, open the microwave oven door before cleaning. Wipe the panel with a cloth dampened slightly with water only. Dry with a soft cloth. Do not scrub or use any sort of chemical cleaners. Close door and touch Cancel

INTERIOR

To clean the interior surfaces, wipe with a soft cloth and warm water. DO NOT USE ABRASIVE OR HARSH CLEANERS OR SCOURING PADS. For heavier soil, use baking soda or a mild soap; rinse thoroughly with hot water. The round wire rack and shelf can be cleaned with hot soapy water, rinsed and dried.

WAVEGUIDE COVER

The waveguide cover is located on the right side in the microwave oven cavity. It is made from mica so requires special care. Keep the waveguide cover clean to assure good microwave oven performance.
Carefully wipe with a damp cloth any food spatters from the surface of the cover immediately after they occur. Built-up splashes may overheat and cause smoke or possibly catch fire.
DO NOT REMOVE THE WAVEGUIDE COVER.

ODOR REMOVAL

Occasionally, a cooking odor may remain in the microwave oven. To remove, combine 1 cup water, grated peel and juice of 1 lemon in a 2-cup glass measuring cup.
Boil for several minutes using 100% power. Allow to set in microwave oven until cool. Wipe interior with a soft cloth.

TURNTABLE/TURNTABLE SUPPORT

The turntable and turntable support can be removed for easy cleaning. Wash them in mild, sudsy water; for stubborn stains use a mild cleanser and non-abrasive scouring sponge. They are also dishwasher-proof. Use upper wire rack of dishwasher. The turntable motor shaft is not sealed, so excess water or spills should be wiped up immediately.

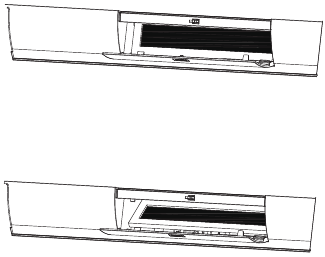

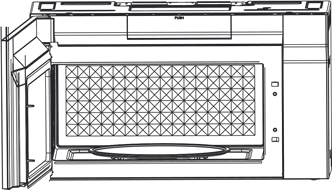

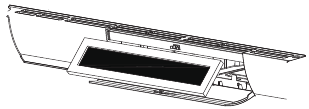

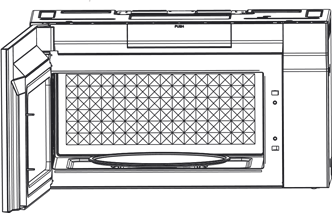

Charcoal filter replacement

Charcoal filter part number FRPAMRAF
To order parts call 800-599-7569

Charcoal Filter when installed in your microwave oven, is used for nonvented, recirculated Installation. When it is time to replace the charcoal filter, the FILTER light on display will turn on.

If your microwave is vented to the outside, then you can turn off the filter light in the settings.

  1. Disconnect power to the microwave oven at the circuit breaker panel or by unplugging.
  2. Press the "Push" position on the cover.
  3. And then open the cover.
    Charcoal filter replacement - Srep 1
  4. Remove the charcoal filter by pushing the top of the filter inwards, then pull it forward out from the unit.
    Charcoal filter replacement - Srep 2
  5. Slide the top of the new charcoal filter the top area of the filter cavity.
    Charcoal filter replacement - Srep 3
  6. Press the bottom of charcoal filter to place it into the correct position.
    Charcoal filter replacement - Srep 4
  7. Press the "Push" to close the cover.
    Charcoal filter replacement - Srep 5


Disconnect the power cord before cleaning or leave the door open to deactivate the oven during cleaning.

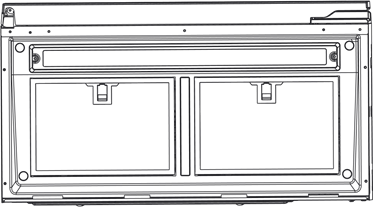

CLEANING THE GREASE FILTER

The oven ventilation grease filters should be removed and cleaned often; generally at least once every month.


To avoid risk of personal injury or property damage, do not operate oven hood without filter properly in place.

CLEANING THE GREASE FILTER

  1. To remove the grease filter, pull the lever, then pull filter downward. The filter will drop out.
  2. Soak the grease filter in hot water using a mild detergent. Rinse well and shake to dry or wash grease filter in dishwasher. It is best to place in upper rack of dishwasher for cleaning.
    warning NOTE: Do not use ammonia cleaner. The ammonia cleaner may corrode and darken the aluminum on the filter.
  3. To reinstall the grease filter, infix the hooks into the holes of base plate, then pull the lever and toward oven to lock.


CAUTION GREASE FILTER

Filter should be cleaned at least once a month. Never operate the fan or microwave oven without the filter in place.

  1. Pull down slightly on the tab toward the front of the microwave oven and remove the filter.
  2. Soak the filter in a sink or dish pan filled with hot water and detergent. DO NOT use ammonia or other alkalli; they will react with the filter material and darken it.
  3. Agitate and scrub with a brush to remove embedded dirt.
  4. Rinse thoroughly and shake dry.
  5. Replace by fitting the filter back into the opening.

SERVICE CALL CHECK

Please check the following before calling for service:
Place one cup of water in a glass measuring cup in the microwave oven and close the door securely. Operate the microwave oven for one minute at HIGH 100%.

A Does the microwave oven light come on? YES ____ NO ____
B Does the cooling fan work? (Put your hand at top above Display.) YES ____ NO ____
C Does the turntable rotate? (It is normal for the turntable to turn in either YES ____ NO ____
D Is the water in the microwave oven warm? YES ____ NO ____

If "NO" is the answer to any of the above questions, please check electrical outlet, fuse and/or circuit breaker. If they are functioning properly, CONTACT YOUR NEAREST ELECTROLUX AUTHORIZED SERVICER. A microwave oven should never be serviced by a "do-it-yourself" repair person.

warning NOTE: If time appearing in the display is counting down very rapidly, check Demonstration Mode.

SPECIFICATIONS

AC Line Voltage: Single phase 120V, 60Hz, AC only
AC Power Required: 1500W 13.5amps
Output Power*: 900 W
Frequency: 2450 MHz (Class B/Group2)**
Outside Dimensions: 75.9 "(W) x 44.6 "(D) x 40.8 "(H)
Cavity Dimensions: 54.0"(W) x 25.2 "(D) x 37.36 "(H)
Microwave oven Capacity***: 1.9 Cu. Ft.
Cooking Uniformity: Turntable
Weight: Approx. (net) 79.1 lbs, (gross) 84.2 lbs
Work/Night Light: 2*1.2W LED
Oven Light: 1*1.2W L E D

* The International Electrotechnical Commission's standardized method for measuring output wattage. This test method is widely recognized.

** This is the classification of ISM (Industrial, Scientific and Medical) equipment described in the International Standard CISPR11.

*** Internal capacity is calculated by measuring maximum width, depth and height. Actual capacity for holding food is less.

USA
1-800-374-4432
Frigidaire 10200 David Taylor Drive Charlotte,
NC 28262

Canada
1.800.265.8352
Electrolux Canada Corp. 5855 Terry Fox Way Mississauga,
Ontario, Canada L5V 3E4

IMPORTANT SAFETY INSTRUCTIONS

Read all instructions before using this appliance.
This manual contains important safety symbols and instructions. Please pay attention to these symbols and follow all instructions given.

Do not attempt to install or operate your appliance until you have read the safety precautions in this manual. Safety items throughout this manual are labeled with a WARNING or CAUTION statement based on the risk type.

Warnings and important instructions appearing in this guide are not meant to cover all possible conditions and situations that may occur. Common sense, caution, and care must be exercised with installing, maintaining, or operating your appliance.

DEFINITIONS

warning This is the safety alert symbol. It is used to alert of potential personal injury hazards. Obey all safety messages that follow this symbol to avoid possible injury or death.


Indicates a potentially hazardous situation which, if not avoided, may result in death or serious injury.


Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury.

warning NOTE: Indicates a short, informal reference – something written down to assist the memory or for future reference.


Indicates installation, operation or maintenance information which is important but not hazard related.

warning NOTE: ELECTRICAL REQUIREMENTS
Product rating is 120 volts AC, 60 Hertz, 1.5 kilowatts and 13.5 amps. This product must be connected to a separate and dedicated supply circuit of the proper voltage and frequency. Wire size must conform to the requirements of the National Electrical Code or the prevailing local code for this kilowatt rating. The power supply cord and plug should be brought to a separate and dedicated 15- to 20- ampere branch circuit single grounded outlet. The outlet box should be located in the cabinet above the microwave oven. The outlet box and supply circuit should be installed by a qualified electrician and conform to the National Electrical Code or the prevailing local code.

  1. If you have any questions about the grounding or electrical instructions, consult a qualified electrician or service person.
  2. Neither Electrolux nor the dealer can accept any liability for damage to the microwave oven or personal injury resulting from failure to observe the correct electrical connection procedures.

SAVE THESE INSTRUCTIONS

PRECAUTIONS MICROWAVE ENERGY

PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY

Do not attempt to operate this oven with the door open since open door operation can result in harmful exposure to microwave energy. It is important not to defeat or tamper with the safety interlocks.

Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces.


To reduce the risk of burns, electric shock, fire, injury to persons or exposure to excessive microwave energy:

Do not operate the oven if it is damaged. It is particularly important that the oven door close properly and that there is no damage to the:

  1. DOOR (bent)
  2. HINGES AND LATCHES (broken or loosened)
  3. DOOR SEALS AND SEALING SURFACES.

The oven should not be adjusted or repaired by anyone except properly qualified service personnel.

RADIO INTERFERENCE

  • Operation of the microwave oven may cause interference to your radio, TV or similar equipment.
  • When there is interference, it may be reduced or eliminated by taking the following measures:
    • Clean door and sealing surface of the oven.
    • Reorient the receiving antenna of radio or television.
    • Relocate the microwave oven with respect to the receiver.
    • Move the microwave oven away from the receiver.
    • Plug the microwave oven into a different outlet so that microwave oven and receiver are on different branch circuits.

UTENSILS


Personal Injury Hazard

  • Tightly-closed utensils could explode. Closed containers should be opened and plastic pouches should be pierced before cooking.
  • See the instructions on "Materials you can use in microwave oven or to be avoided in microwave oven."
    There may be certain non-metallic utensils that are not safe to use for microwaving. If in doubt, you can test the utensil in question following the procedure below.

Utensil Test:

  • Fill a microwave-safe container with 1 cup of cold water (250ml) along with the utensil in question.
  • Cook on maximum power for 1 minute.
  • Carefully feel the utensil. If the empty utensil is warm, do not use it for microwave cooking.
  • Do not exceed 1 minute cooking time.

SAVE THESE INSTRUCTIONS

When using electrical appliances basic safety precautions should be followed, including the following:


To reduce the risk of burns, electric shock, fire, injury to persons or exposure to excessive microwave energy:

  • Read all instructions before using the appliance.
  • Read and follow the specific: "PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY".
  • This appliance must be grounded. Connect only to properly grounded outlet. See "GROUNDING INSTRUCTIONS"
  • Install or locate this appliance only in accordance with the provided installation instructions.
  • Some products such as whole eggs and sealed containers - for example, closed glass jars - are able to explode and should not be heated in this oven.
  • Use this appliance only for its intended use as described in the manual. Do not use corrosive chemicals or vapors in this appliance. This type of oven is specifically designed to heat, cook or dry food. It is not designed for industrial or laboratory use.
  • HOT CONTENTS CAN CAUSE SEVERE BURNS. DO NOT ALLOW CHILDREN TO USE THE MICROWAVE. Use caution when removing hot items.
  • Do not operate this appliance if it has a damaged cord or plug, if it is not working properly, or if it has been damaged or dropped.
  • This appliance should be serviced only by qualified service personnel. Contact nearest authorized service facility for examination, repair, or adjustment.
  • Do not cover or block any openings on the appliance.
  • Do not store this appliance outdoors. Do not use this product near water - for example, near a kitchen sink, in a wet basement, near a swimming pool, or similar location.
  • Do not immerse cord or plug in water.
  • Keep cord away from heated surface.
  • Do not let cord hang over edge of table or counter. When cleaning surfaces of door and oven that comes together on closing the door, use only mild, nonabrasive soaps, or detergent applied with a sponge or soft cloth.
  • To reduce the risk of fire in the oven cavity:
    • Do not overcook food. Carefully attend appliance when paper, plastic, or other combustible materials are placed inside the oven to facilitate cooking.
    • Remove wire twist-ties from paper or plastic bag before when placing bag in oven.
    • If material inside of the oven ignite, keep oven door closed, turn oven off, and disconnect the power cord, or shut off power at the fuse or circuit breaker panel.
    • Do not use the cavity for storage purposes. Do not leave paper products, cooking utensils, or food in the cavity when not in use.
  • Liquids, such as water, coffee, or tea are able to be overheated beyond the boiling point without appearing to be boiling. Visible bubbling or boiling when the container is removed from the microwave oven is not always present. THIS COULD RESULT IN VERY HOT LIQUID SUDDENLY BOILING OVER WHEN THE CONTAINER IS DISTURBED OR A UTENSIL IS INSERTED INTO THE LIQUID. To reduce the risk of injury to persons:
  • Do not overheat the liquid.
  • Stir the liquid both before and halfway through heating it.
  • Do not use straight-sided containers with narrow necks.
  • After heating, allow the container to stand in the microwave oven for a short time before removing the container.
  • Use extreme care when inserting a spoon or other utensil into the container.
  • Oversized food or oversized metal utensils should not be inserted in a microwave/toaster oven as they may create a fire or risk of electric shock. Do not clean with metal scouring pads. Pieces can burn off the pad and touch electrical parts involving a risk of electric shock.
  • Do not use paper products when appliance is operated in the toaster, air fry or convection mode.
  • Do not store any materials, other than manufacturer's recommended accessories, in this oven when not in use.
  • Do not cover racks or any other part of the oven with metal foil. This will cause over- heating of the oven.
  • Clean Ventilation Hoods Frequently -Grease should not be allowed to accumulate on hood or filter.
  • When flaming foods under the hood, turn the fan on.
  • Use care when cleaning the vent-hood filter. Corrosive cleaning agents, such as lye-based oven cleaners, may damage the filter.
  • Suitable for use above both gas and electric cooking equipment.

GROUNDING INSTRUCTIONS

This appliance must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current. This appliance is equipped with a cord having a grounding wire with a grounding plug. The plug must be plugged into an outlet that is properly installed and grounded.


Improper use of the grounding can result in a risk of electric shock.

Consult a qualified electrician or serviceman if the grounding instructions are not completely understood, or if doubt exists as to whether the appliance is properly grounded. If it is necessary to use an extension cord, use only a 3-wire extension cord that has a 3-blade grounded plug, and 3-slot receptacle that will accept the plug on the appliance. The marked rating of the extension cord shall be equal to or greater than the electrical rating of the appliance.

  1. If you have any questions about the grounding or electrical instructions, consult a qualified electrician or service person.
  2. Neither Electrolux nor the dealer can accept any liability for damage to the microwave oven or personal injury resulting from failure to observe the correct electrical connection procedures.


Electric Shock Hazard
Touching some of the internal components can cause serious personal injury or death. Do not disassemble this appliance.


Electric Shock Hazard
Improper use of the grounding can result in electric shock. Do not plug into an outlet until appliance is properly installed and grounded.

  • A short power supply cord is provided to reduce the risks resulting from becoming entangled in or tripping over a longer cord.
  • Longer cord sets or extension cords are available and may be used if care is exercised in their use.
  • If a long cord or extension cord is used:
    • The marked electrical rating of the cord set or extension cord should be at least as great as the electrical rating of the appliance.
    • The extension cord must be a grounding-type 3- wire cord.
    • The longer cord should be arranged so that it will not drape over the counter top or tabletop where it can be pulled on by children or tripped over unintentionally.

Materials you can use in microwave oven

Browning dish Follow manufacturer instructions. The bottom of browning dish must be at least 3/16 inch (5mm) above the turntable. Incorrect usage may cause the turntable to break.
Dinnerware Microwave-safe only. Follow manufacturer's instructions. Do not use cracked or chipped dishes.
Glass jars Always remove lid. Use only to heat food until just warm. Most glass jars are not heat resistant and may break.
Glassware Heat-resistant oven glassware only. Make sure there is no metallic trim. Do not use cracked or chipped dishes.
Oven cooking bags Follow manufacturer instructions. Do not close with metal tie. Make slits to allow steam to escape.
Paper plates and cups Use for short term cooking/warming only. Do not leave oven unattended while cooking.
Paper towels Use to cover food for reheating and absorbing fat. Use with supervision for a short-term cooking only.
Parchment paper Use as a cover to prevent splattering or a wrap for steaming.
Plastic Microwave-safe only. Follow the manufacturer instructions. Should be labeled "Microwave Safe". Some plastic containers soften, as the food inside gets hot. "Boiling bags" and tightly closed plastic bags should be slit, pierced or vented as directed by package.
Plastic wrap Microwave-safe only. Use to cover food during cooking to retain moisture. Do not allow plastic wrap to touch food.
Thermometers Microwave-safe only (meat and candy thermometers).
Wax paper Use as a cover to prevent splattering and retain moisture.

Materials to be avoided in microwave oven

Aluminum tray May cause arcing. Transfer food into microwave-safe dish.
Food carton with metal handle May cause arcing. Transfer food into microwave-safe dish.
Metal or metaltrimmed utensils Metal shields the food from microwave energy. Metal trim may cause arcing.
Metal twist ties May cause arcing and could cause a fire in the oven.
Paper bags May cause a fire in the oven.
Plastic foam Plastic foam may melt or contaminate the liquid inside when exposed to high temperature.
Wood Wood will dry out when used in the microwave oven and may split or crack.

Documents / Resources

Download manual

Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.

Download Frigidaire PMOS198CAF - Professional 1.9 Cu. Ft. Over-the Range Microwave with Convection Manual

Advertisement

Need Assistance?

Do you have a question about the PMOS198CAF that isn't answered in the manual? Leave your question here.

Error while submitting your question. Please, reload page and try again.

Thank you! Your question has been received!

Related Manuals for Frigidaire PMOS198CAF

Save Article as PDF

Table of Contents
