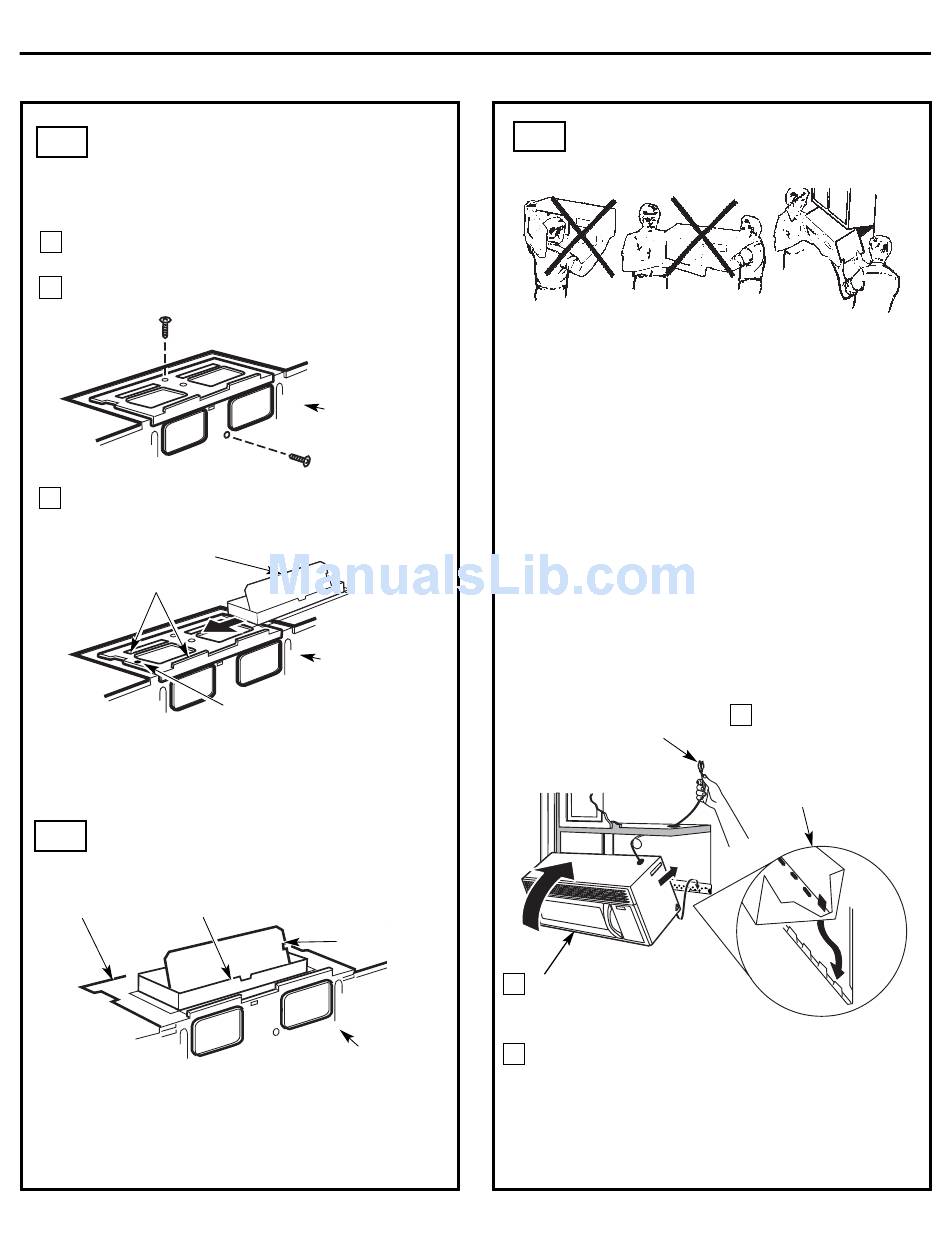

A3.
ADAPTING MICROWAVE
BLOWER FOR OUTSIDE
TOP EXHAUST
Secure blower unit to microwave with the screw
5
removed in Step 1. Make sure the screw is tight.
6
Replace blower plate with the screw removed in
Step 1. Make sure the screw is tight.
Attach the exhaust adaptor to the top of the
7
blower plate by sliding it into the guides of the
blower plate.
Adaptor
Guide
Locking Tab
Push in securely until it is in the locking tabs.
Take care to assure that the damper hinge is
installed so that the
A4.
CHECK FOR PROPER
DAMPER OPERATION
Blower Plate
Exhaust Adaptor
Make sure tape securing damper is removed and
damper pivots easily before mounting microwave.
You will need to make adjustments to assure proper
alignment with your house exhaust duct after the
microwave is installed.
Installation Instructions
Back of
Microwave
Back of
Microwave
damper swings freely.
Damper
Back of
Microwave
A5.
MOUNT THE MICROWAVE
OVEN
FOR EASIER INSTALLATION AND PERSONAL
SAFETY, WE RECOMMEND THAT TWO PEOPLE
INSTALL THIS MICROWAVE OVEN.
IMPORTANT: Do not grip or use handle
during installation.
NOTE: If your cabinet is metal, use the nylon
grommet around the power cord hole to prevent
cutting of the cord.
NOTE: We recommend using filler blocks if the
cabinet front hangs below the cabinet bottom shelf.
IMPORTANT: If filler blocks are
not used, case damage may occur from
overtightening screws.
NOTE: When mounting the
microwave oven, thread
power cord through hole in
bottom of top cabinet. Keep
it tight throughout Steps
1–3. Do not pinch cord or
lift oven by pulling cord.
2 Rotate front of oven
up against cabinet
bottom.
3
Insert a self-aligning screw through top center
cabinet hole. Temporarily secure the oven by
turning the screw at least two full turns after the
threads have engaged. (It will be completely
tightened later.) Be sure to keep power cord
tight. Be careful not to pinch the cord, especially
when mounting flush to bottom of cabinet.
EN-14
1
Lift microwave, tilt it
forward, and hook
slots at back bottom
edge onto four lower
tabs of mounting
plate.
