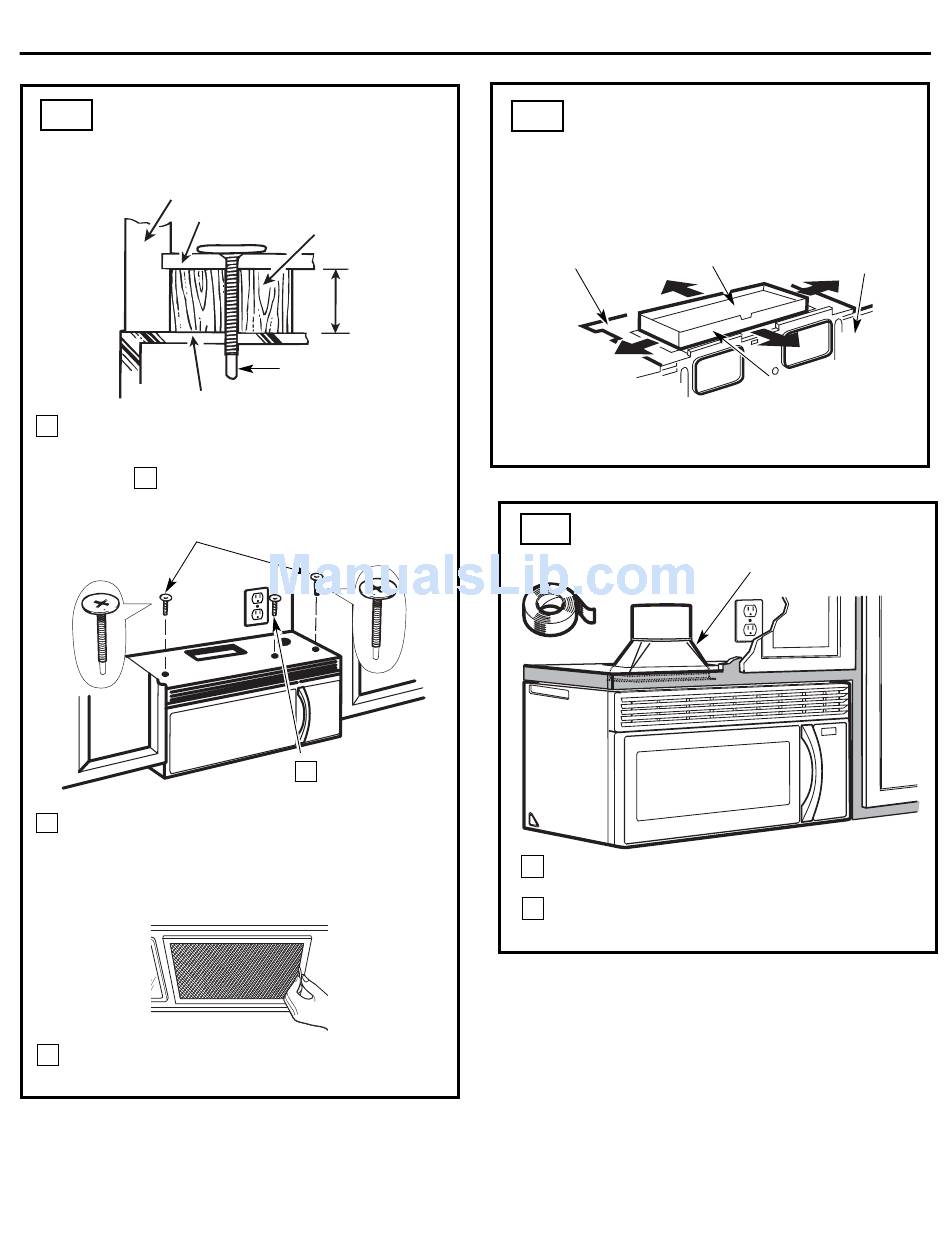

A5.
MOUNT THE MICROWAVE
OVEN (cont.)
Cabinet Front
Cabinet Bottom Shelf
Microwave Oven Top
4 Attach the microwave oven to the top cabinet.
5
Insert 2 self-aligning screws
through outer top cabinet
holes. Turn two full turns on
each screw.
7
Tighten the outer two screws to the top of the
microwave oven. (While tightening screws, hold
the microwave oven in place against the wall and
the top cabinet.)
8
Install grease filters. See the Use & & & & a nd Care
packed with the microwave.
Installation Instructions
Filler Block
Equivalent
to Depth
of Cabinet
Recess
Self-Aligning Screw
6
Tighten center
screw completely.
EN-15
ADJUST THE EXHAUST
A6.
ADAPTOR
Open the top cabinet and adjust the exhaust adaptor
to connect to the house duct.
Blower Plate
A7.

CONNECTING DUCTWORK

1
Extend the house duct down to connect to
the exhaust adaptor.
2
Seal exhaust duct joints using
for high temperature applications.
Back of
Damper
Microwave
For Front-to-Back or
Side-to-Side Adjustment,
Slide the Exhaust Adaptor
as Needed
House Duct
furnance
duct tape
