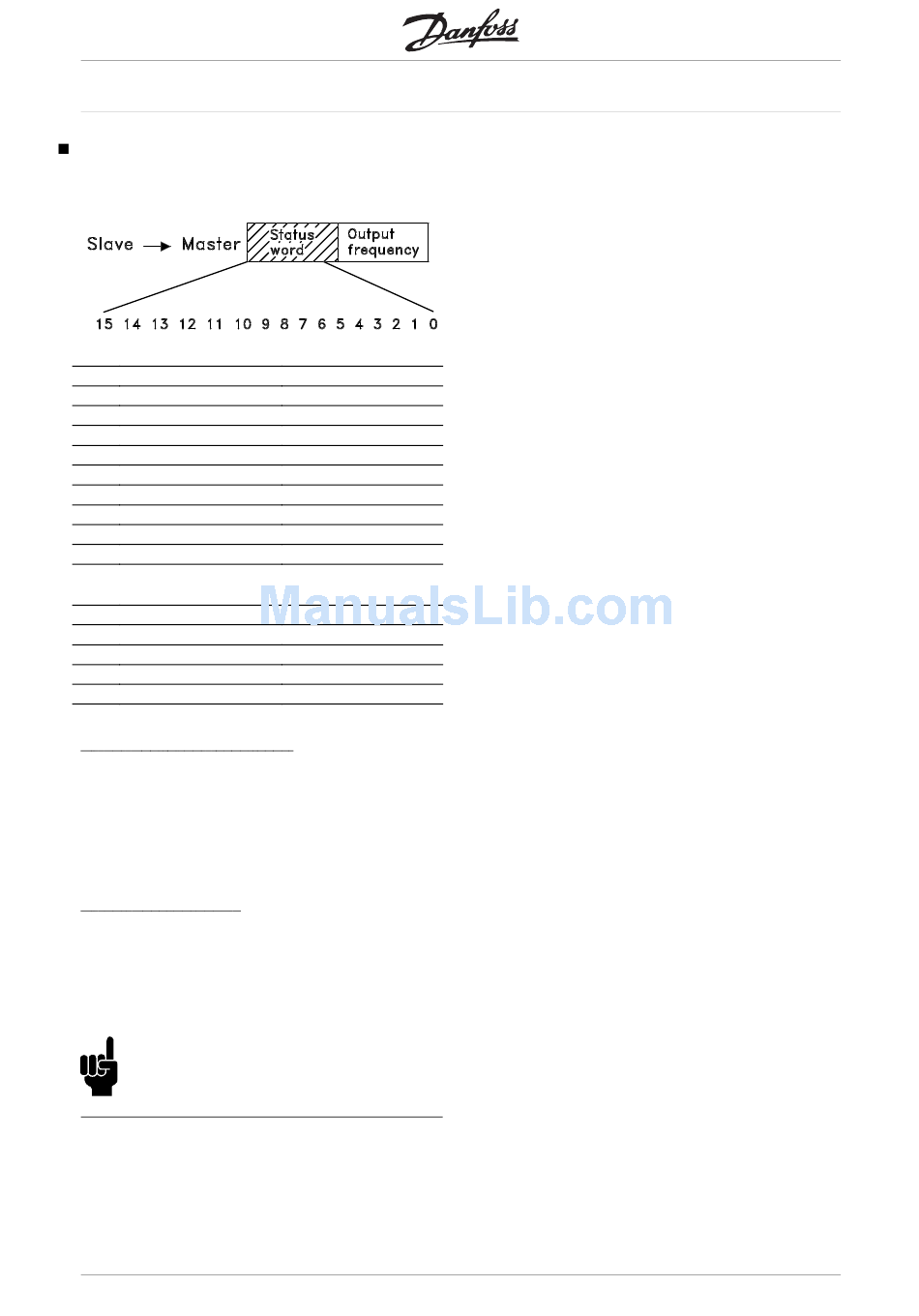

Status word according to fc standard

The Status word is used to notify a master (e.g.
a PC) about the status of a slave.
Bit Bit = 0
00 Control not ready
01 VLT not ready
02 Coasting
03 No error
04 Not in use
05 Not in use
06 Not in use
07 No warning
Speed ≠ref.
08
09 Local operation
10 Not in operation
range
11 No operation
12 VLT OK
13 Voltage OK
14 Torque OK
15 Timer OK
Bit 00, Control not ready/ready:
Bit 00 = "0" means that the frequency converter
has switched off due to malfunction.
Bit 00 = "1" means that the frequency converter
control is ready, but that there is not necessarily
a supply to the power unit present (in the case of
external 24 V supply of the control card).
Bit 02, Coasting/Enable
Bit 02 = "0" means that the bit 03 of the Control
word is "0" (Coasting) or that the frequency
converter has tripped.
Bit 02 = "1" means that the bit 03 of the Control word
is "1" and that the frequency converter has not tripped.
NB!:
The description of the other bits can be found in
the section "Status word according to Profidrive".
28
Bit =1
Ready
Ready
Enable
Trip
Warning
Speed = ref.
Bus control
Frequency limit OK
Operation
Stopped, autostart
Limit exceeded
Limit exceeded
Limit exceeded
