Quadro4Li Manual I: Installation Guide
The Authentication password validates the entry and must match the password entered
on the Quadro later. Make sure to record the name, Authentication Password and SIP ex-
tension number for entry into the Quadro later.
Save will store the entered information and conclude the basic SIP registration. The follow-
ing page then will be displayed:
This table shows unreg. in the Stat. column. This entry will change to reg. when the re-
quired settings in the Quadro are complete and the Quadro successfully registers on the
SIP Server.
Repeat this for all four extensions on the Quadro and the Auto Attendant.
Quadro4Li; (SW Version 5.2.x)
Appendix: Configuring NAT Traversal

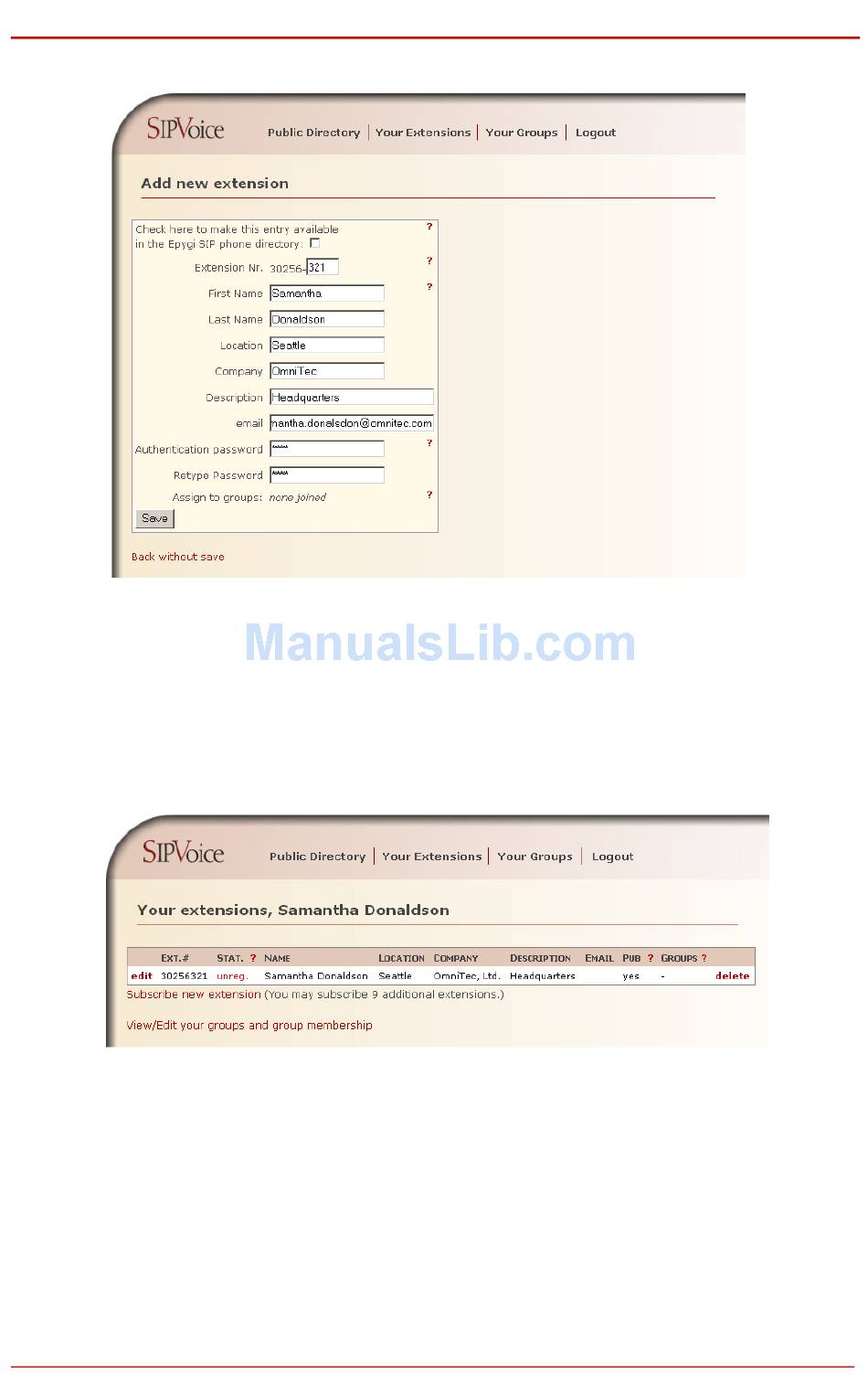

Fig. l- 37: SIP Services Add New Extension page
Fig. l- 38: SIP Services Your Extension page
