2.3.3 Wiring the Circuit

2.3.3.1 Devices Less than 1A at 30 VDC
If the power for the device is less than 1A at 30 VDC and is not an inductive load, then see
Figure 2-4
Pin 3 - Relay Common
Pin 4 - Relay Normally Open Contact
Pin 5 - Sense Input
Pin 6 - Sense Ground
J3 Terminal Block of the CyberData Device
Operations Guide
for the wiring diagram.

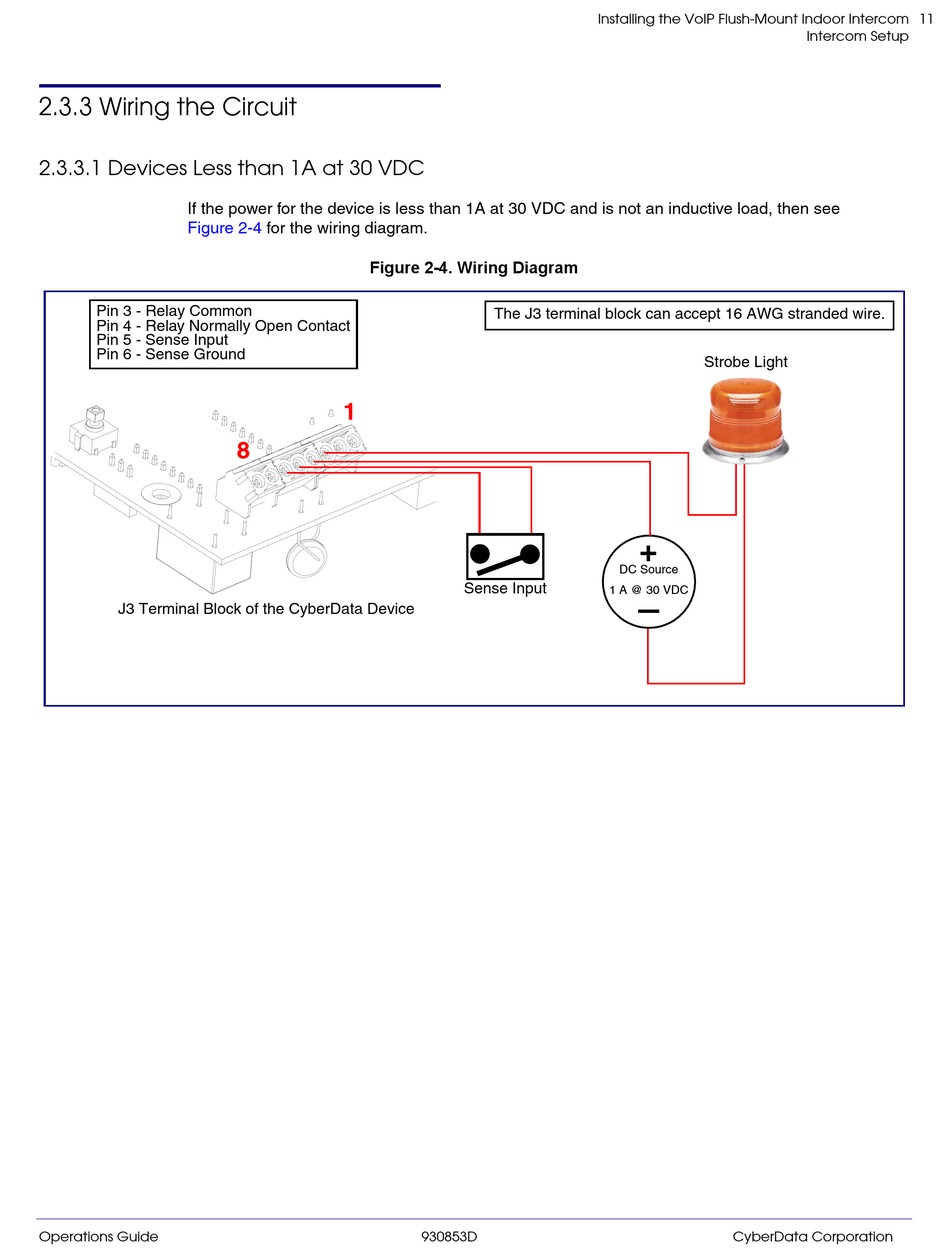

Figure 2-4. Wiring Diagram
1
1
8
8
Installing the VoIP Flush-Mount Indoor Intercom
The J3 terminal block can accept 16 AWG stranded wire.
Sense Input
930853D
Strobe Light
+
DC Source
1 A @ 30 VDC
