CyberData 011272 Installation Quick Reference

Mounting Options
Fold Down All Flagnuts
before Inserting into Wall Cutout
2 Gang Box
Create Service Loop
Inside Gangbox
Mounting
Screws
(Phillip Drive)
Mounting
J1
Screws
(Security
Torx Drive)
Torx Key
Faceplate
Assembly
To mount the Intercom:
1. Make a wall cutout as shown in the picture.
2. Use a flat blade screwdriver to remove the knockout (KO) of the gang box.
3. Feed the ground wire (shown in the "Ground Connection" section) and the network cable from the wall cutout through the
knockout hole of the gang box.
4. Create a service loop for both the ground wire and network cable.
5. Plug the network cable into the J1 connector.
6. Make sure that the arrow labels on the sides of the gang box are pointing up. This will ensure that the intrusion sensor
functions properly.
7. Fold down all of the flagnuts, and then insert the gang box into the wall cutout.
8. Tighten the flagnuts with a size #2 Phillips screwdriver.
9. Use a size #2 Phillips screwdriver to secure the Intercom faceplate assembly to the gang box with either Phillips drive
screws or security Torx drive screws.
Contacting CyberData
Corporate Headquarters
Sales: (831) 373-2601 ext. 334
CyberData Corporation
Support: 831-373-2601 ext. 333
3 Justin Court
Support Website:
Monterey, CA 93940, USA
RMA Department: (831) 373-2601 ext. 136
Phone: 831-373-2601 RMA Email: RMA@CyberData.net
Fax: 831-373-4193 RMA Status:
http://www.cyberdata.net/ Warranty Information:
© 2019, CyberData Corporation, ALL RIGHTS RESERVED
Flagnuts
(4 Places)
6.03 inches
[153mm]
Wall
Cutout
K.O.
5.28 inches
[134mm]
Arrow Labels Must
Points Upward,
Network Cable
This will Ensure
to J1
Intrusion Sensor
Function Properly
Network Cable Assembly
(Not Provided)
http://support.cyberdata.net/
http://support.cyberdata.net/
http://support.cyberdata.net/
931606B Quick Reference
Installation Quick Reference
The IP Endpoint Company

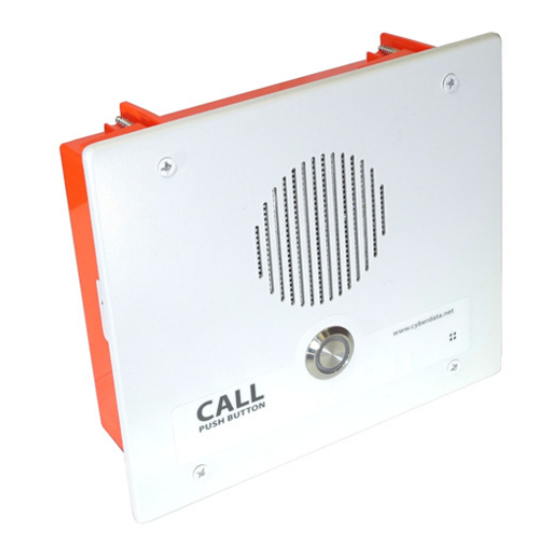

SIP Indoor Intercom Flush Mount
SIP Compliant
011272
Parameter
IP Addressing
a
IP Address
Web Access Username
Web Access Password
a
Subnet Mask
a
Default Gateway
a. Default if there is not a DHCP server present.
Typical System Installation
*More installation and mounting
802.3af Compliant Ethernet Switch
options are available in the
Operations Guide.
Intercom Intercom Intercom
Getting Started
• Download the Operations Guide PDF file, from the Downloads tab at the following webpage:
https://www.cyberdata.net/products/011272
• Create a plan for the locations of your Intercoms.
• WARNING: This product should be installed by a licensed electrician according to all local electrical and building codes.
• WARNING: To prevent injury, this apparatus must be securely attached to the floor/wall in accordance with the installation
instructions.
• WARNING: The PoE connector is intended for intra-building connections only and does not route to the outside plant.
• WARNING: This enclosure is not rated for any AC voltages!
Intercom Parts
Tool required for assembly: A size #2 Phillips screwdriver
(1) Intercom Assembly (1) Mounting Kit
(4) #6 X 3/8-inch,100 Deg.,
Flat Head, Self-Tapping Screw
Quick Reference
Factory Default Setting
DHCP
10.10.10.10
admin
admin
255.0.0.0
10.0.0.1
IP Phone IP PBX Server
(1) Optional Mounting Kit
(4) #6 X 3/8-inch,100 Deg., (1) T15 Security Pin Torx Key
Flat Head T15 Security Pin Torx
Screw
