MAINTENANCE WORK ON CHASSIS AND ENGINE

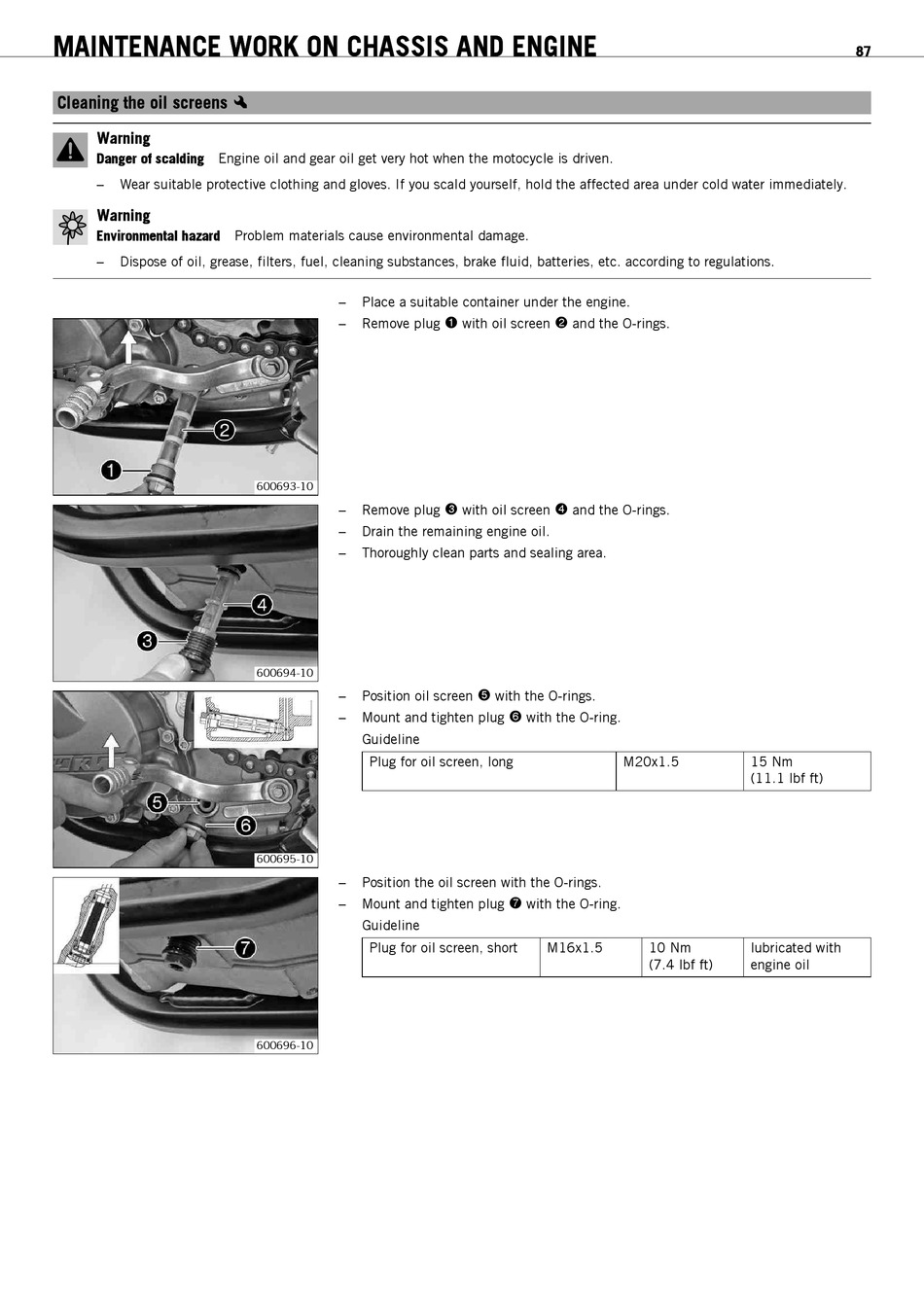

Cleaning the oil screens

13.115
Warning
Danger of scalding Engine oil and gear oil get very hot when the motocycle is driven.
–
Wear suitable protective clothing and gloves. If you scald yourself, hold the affected area under cold water immediately.
Warning
Environmental hazard Problem materials cause environmental damage.
–
Dispose of oil, grease, filters, fuel, cleaning substances, brake fluid, batteries, etc. according to regulations.
x
–
Place a suitable container under the engine.
–
Remove plug
600693-10
–
Remove plug
–
Drain the remaining engine oil.
–
Thoroughly clean parts and sealing area.
600694-10
–
Position oil screen
–
Mount and tighten plug
Guideline
Plug for oil screen, long
600695-10
–
Position the oil screen with the O-rings.
–
Mount and tighten plug
Guideline
Plug for oil screen, short
600696-10
with oil screen and the O-rings.
 
with oil screen and the O-rings.
 
with the O-rings.

with the O-ring.

with the O-ring.

M16x1.5
M20x1.5 15 Nm
(11.1 lbf ft)
10 Nm lubricated with
(7.4 lbf ft) engine oil
87
