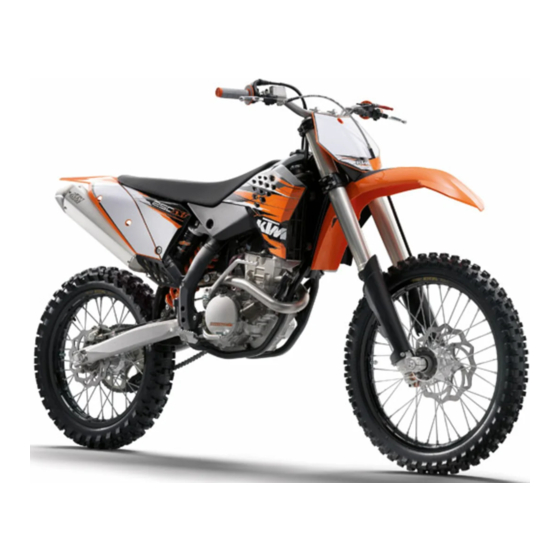

MEANS OF REPRESENTATION Symbols used The symbols used are explained in the following. Identifies an expected reaction (e.g. of a work step or a function). Identifies an unexpected reaction (e.g. of a work step or a function). Identifies a page reference (more information is provided on the specified page). Formats used The typographical and other formats used are explained below.
Page 5
SET‑UP Unpacking and setting up the vehicle – Remove the box and the plastic packaging. Info To avoid damaging the motorcycle during assembly, leave the protective plastic on the vehicle until you have finished. – Check the vehicle for transport damage. –...
Page 6
Mount and tighten the rear mirror adapter and rear mirror on both sides. – Mount the reflector. – Position all controls exactly on the handlebar. Tighten all screws. – Refuel. ( p. 7) – Print out the current PDI form found on KTM DEALER.NET and perform the delivery inspection. 600810-10...
Page 7
WORK Removing the seat – Remove screw . Lift up the seat at the rear, pull it back and then remove from above. 500080-10 Mounting the seat – Hook in the front of the seat at the collar sleeve of the fuel tank, lower it at the rear and simultaneously push it forward.
Page 8
– Do not discard batteries with the household trash. Dispose of a defective battery in an environmentally compatible manner. Give the battery to your KTM dealer or to a recycling center that accepts used batteries. Warning Environmental hazard Hazardous substances cause environmental damage.
Page 9
WORK – Switch off the charger after charging. Disconnect the battery. Guideline The charge current, charge voltage and charge time must not be exceeded. Charge the battery regularly when the 3 months motorcycle is not in use – Mount the seat. ( p.
Page 10
WORK – Switch off engine. – Open the filler cap. ( p. 7) – Fill the fuel tank with fuel up to measurement Guideline Measurement of 35 mm (1.38 in) Total fuel tank 9.2 l Super unleaded (ROZ 95 / RON 95 / capacity, approx.
