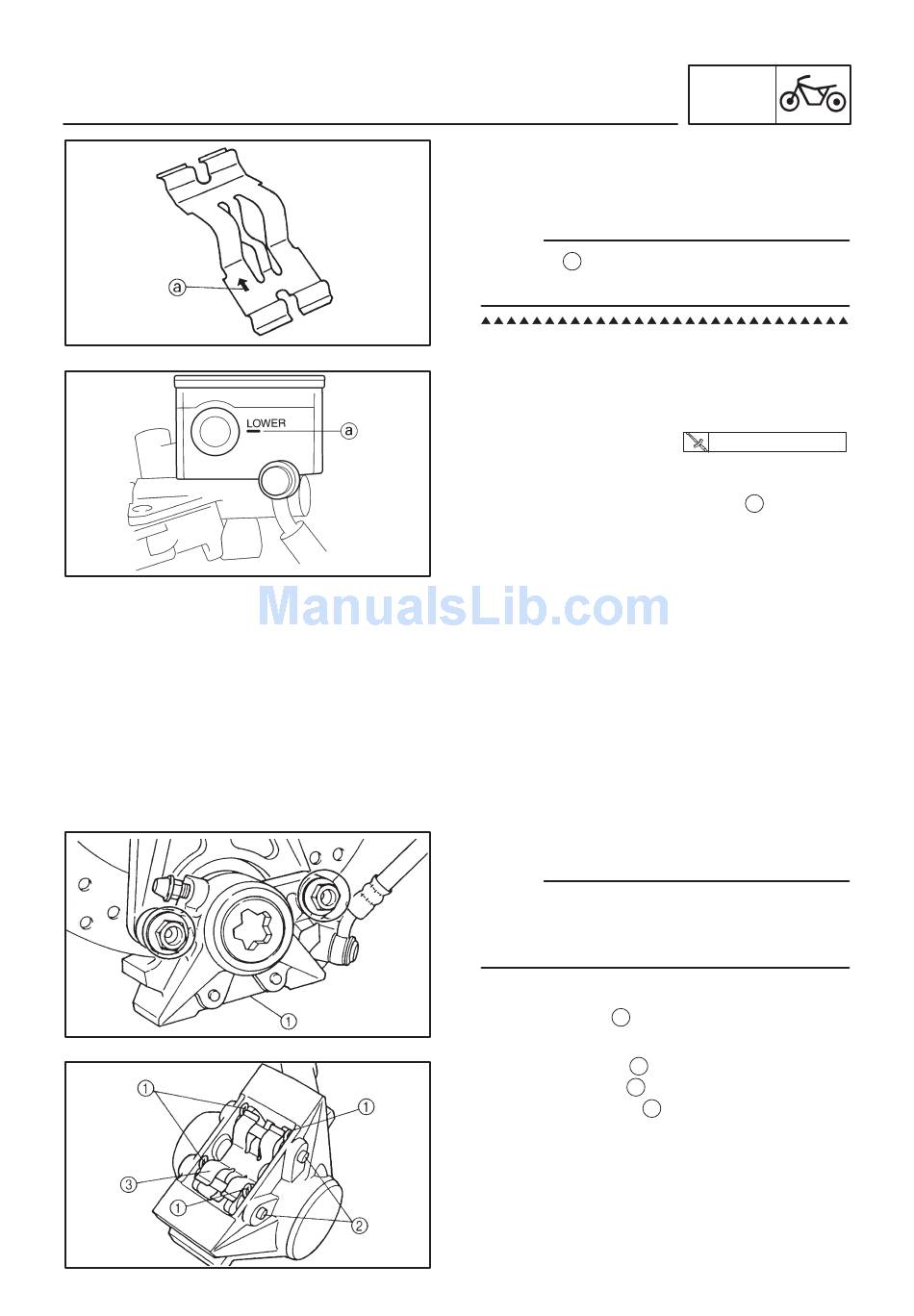

FRONT AND REAR BRAKES
d. Install new brake pad shims onto the new
brake pads.
e. Install new brake pads and a new brake pad
spring.
NOTE:
The arrow a on the brake pad spring must point
in the direction of disc rotation.
6. Install:
S brake pad cover
S brake pad pins
S brake pad clips
S brake caliper
7. Check:
S brake fluid level
Below the minimum level mark a ! Add the
recommended brake fluid to the proper level.
Refer to "CHECKING THE BRAKE FLUID
LEVEL" in chapter 3.
8. Check:
S brake lever operation
Soft or spongy feeling ! Bleed the brake
system.
Refer to "BLEEDING THE HYDRAULIC
BRAKE SYSTEM" in chapter 3.
EAS00583

REPLACING THE REAR BRAKE PADS

NOTE:
When replacing the brake pads, it is not neces-
sary to disconnect the brake hose or disas-
semble the brake caliper.
1. Remove:
S brake caliper 1
2. Remove:
S brake pad clips 1
S brake pad pins 2
S brake pad spring 3
S brake pads
(along with the brake pad shims)
4-20
CHAS
40 Nm (4.0 mSkg)
