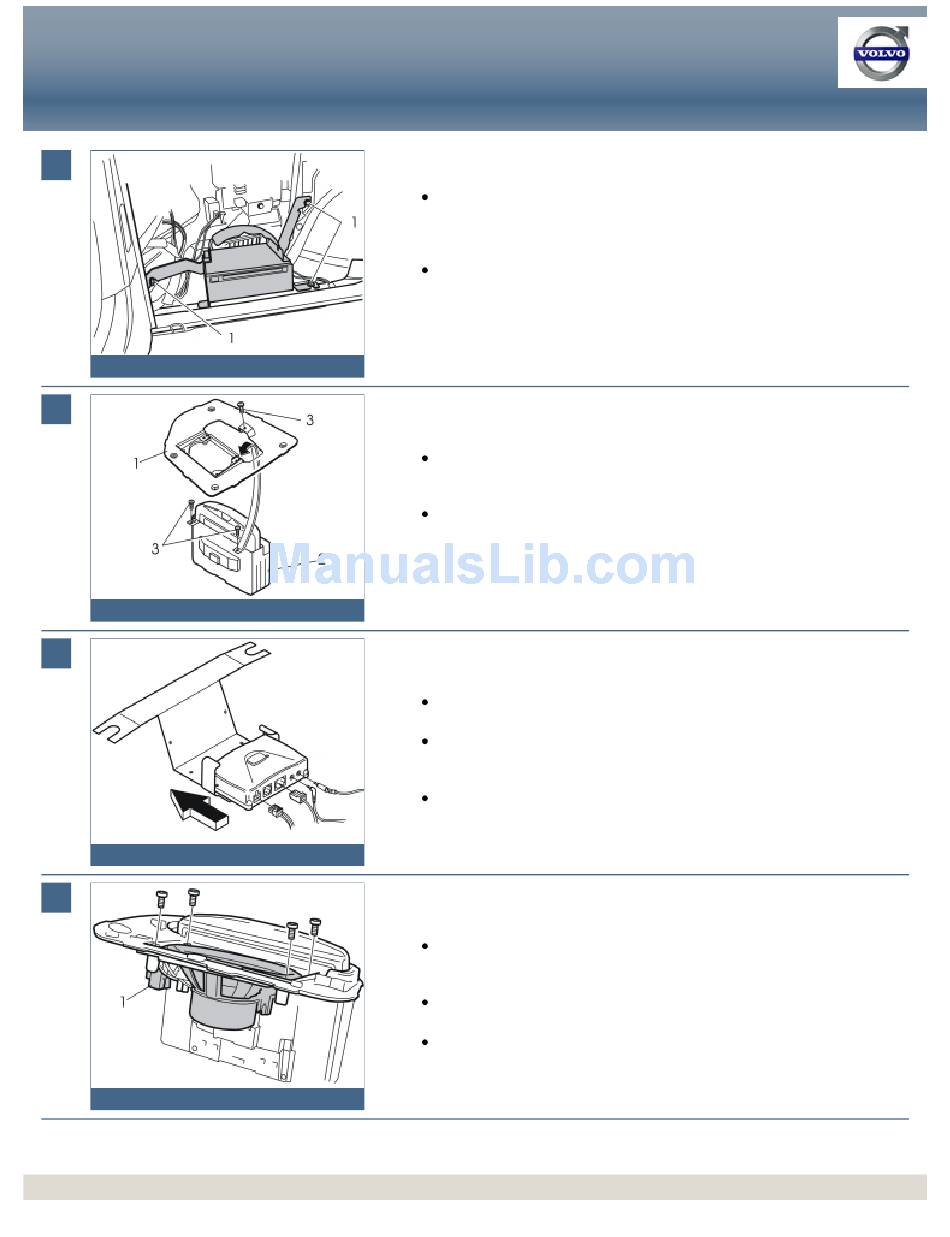

Connecting the DVD reader
Install the bracket with the DVD reader in the rear edge of the rear wheel well
using three screws (1) from the kit. Tighten the screws. Tighten to 10 Nm (7 lbf.
ft)
Clamp the blue excess connector and other wiring at the DVD reader using two
tie straps.
M3903572
Installing and connecting the display screen
Applies to cars without a centrally mounted loudspeaker
Install the bracket (1) on the display (2). Use the screws (3) (from the kit).
Applies to cars with a centrally mounted loudspeaker
Install the bracket (1) on the display screen (2). Use the front screw (3).
M3903055
Installing and connecting the display screen
Applies to cars without a centrally mounted loudspeaker
Connect the wiring for the DVD reader (1) to the display (2)
Install the display screen with the bracket in the dashboard using the existing
screws (3)
Press the new loudspeaker grille (from the kit) into place on the dashboard.
M3903566
Installing and connecting the display screen
Applies to cars with a centrally mounted loudspeaker
Install the centrally mounted loudspeaker in the cut out in the bracket for the
display screen
Tighten the loudspeaker into place using the four screws
Press the connector (1) for the centre loudspeaker into the bracket on the left-
hand under side of the display screen bracket.
M3903539
