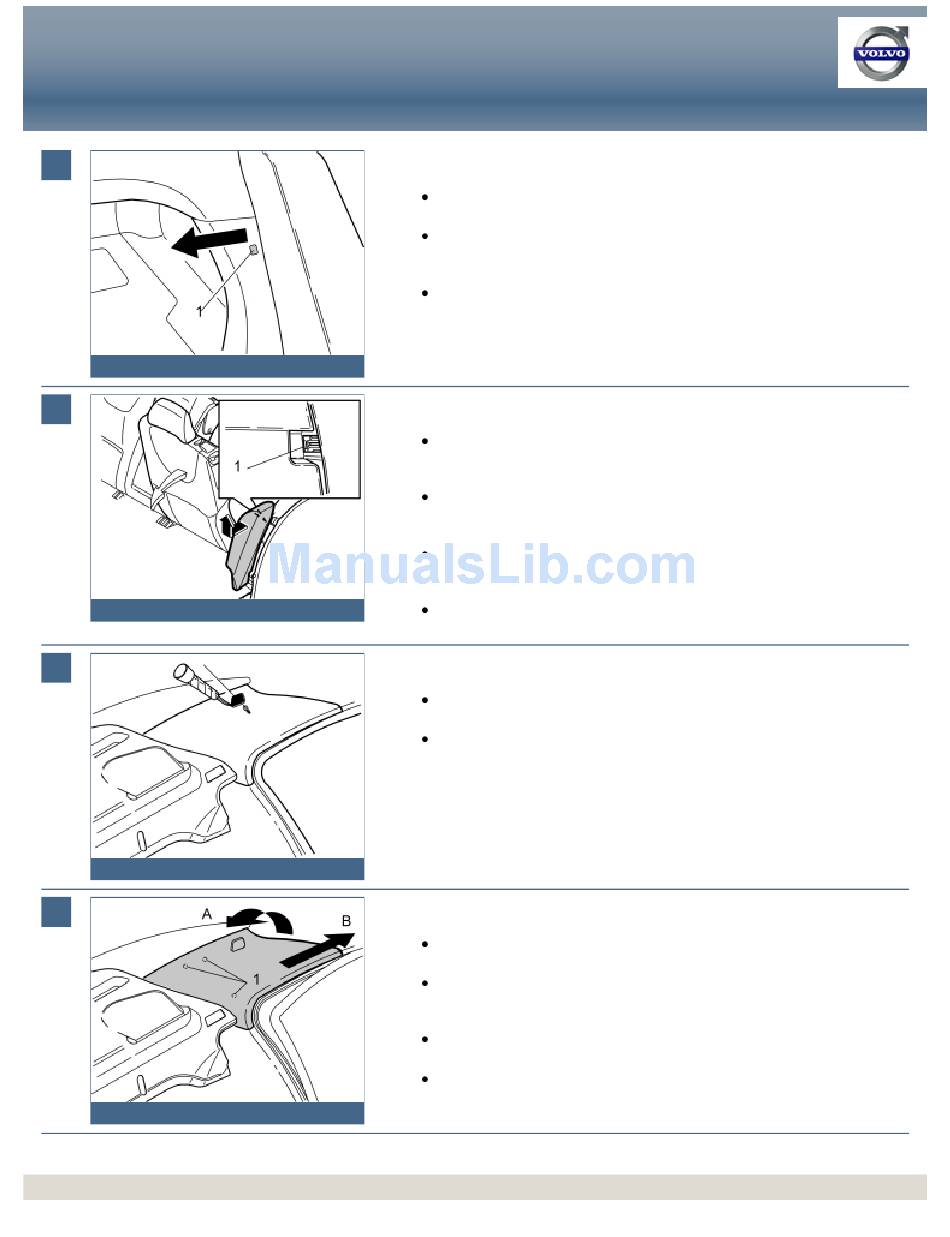

Preparations
Remove the clip (1) at the side of the left-hand side cushion
Pull the top edge of the left-hand front cargo compartment panel out to access
the upper lock for the side cushion
Repeat the operation on the right-hand side.
M8503511
Preparations
Remove the left-hand side cushion. First press in the catches (1) at the top edge
of the reverse of the side cushion. Pull the cushion out slightly
Grasp the cushion using both hands. Twist anti-clockwise until the catches on
the inside release
Remove the side cushion. First pull out the upper edge of the side cushion. Then
pull upwards
M8503546 Repeat the operation on the other side.
Preparations
Remove the cover and the screw for the left-hand C-post
Repeat the operation on the other side.
M8503596
Preparations
Remove the rubber strip at the rear edge on the left-hand rear door frame
Grasp the top edge of the C-post panel. Pull (A) the panel inwards until the three
clips (1) release
Then pull (B) the panel straight up. Place the panel to one side
Repeat the operation on the other side.
M8503597
