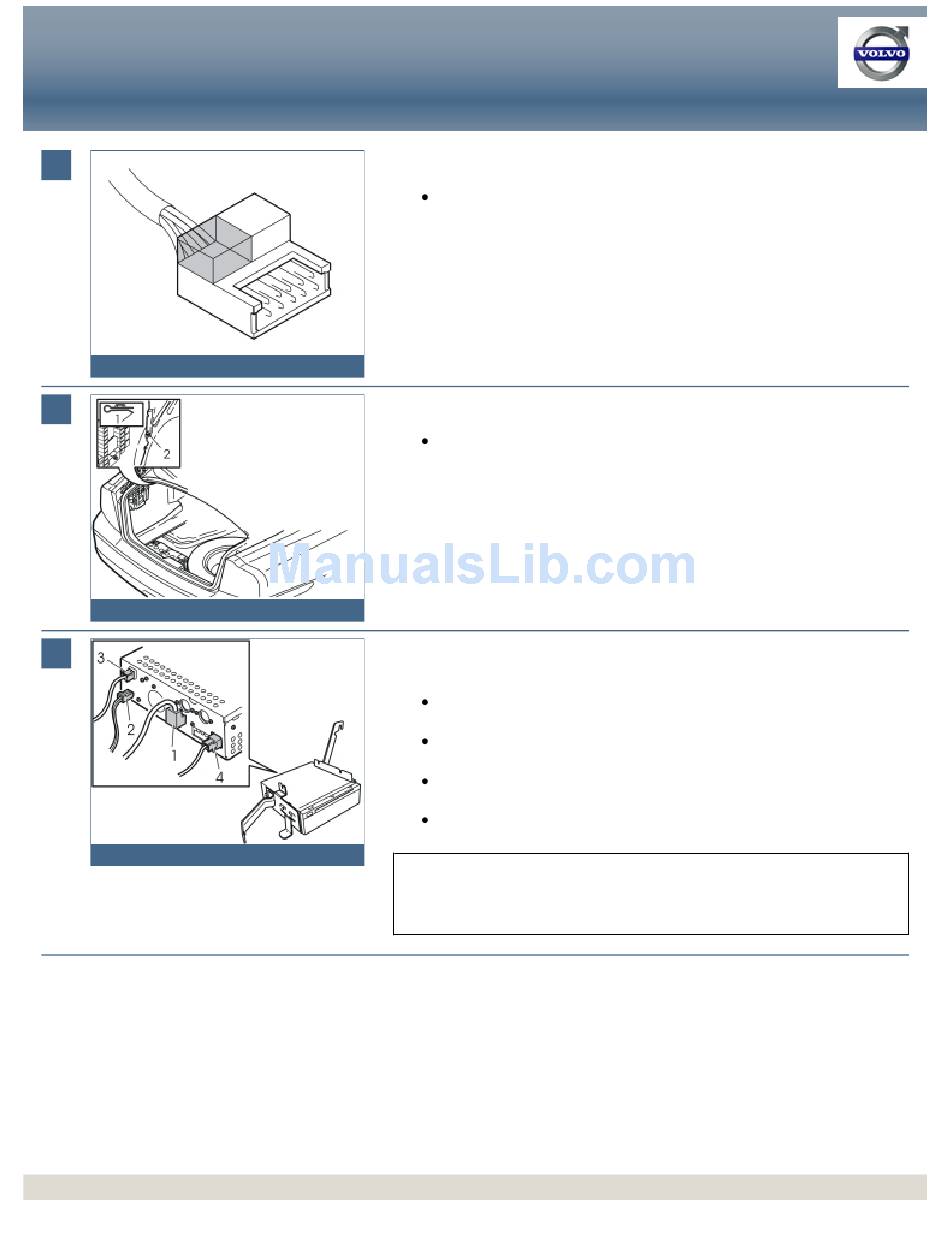

Installing the DVD reader
Take four screws, the bracket and the DVD reader from the kit. Tighten the DVD
reader at the bracket.
M3903564
Installing the DVD reader
Take the spring nut (1) from the kit. Press the spring nut on the panel edge on the
underneath of the socket (2) in the panel.
M3903568
Connecting the DVD reader
Connect:
the display screen cable (1)
the power supply cable (2)
the cable (3) for the Global Positioning System (GPS) aerial
the aerial amplifier cable (4).
M3903569
Note!
If the TV is to be installed carry out the operation now. Use installation Instructions
8637033.
