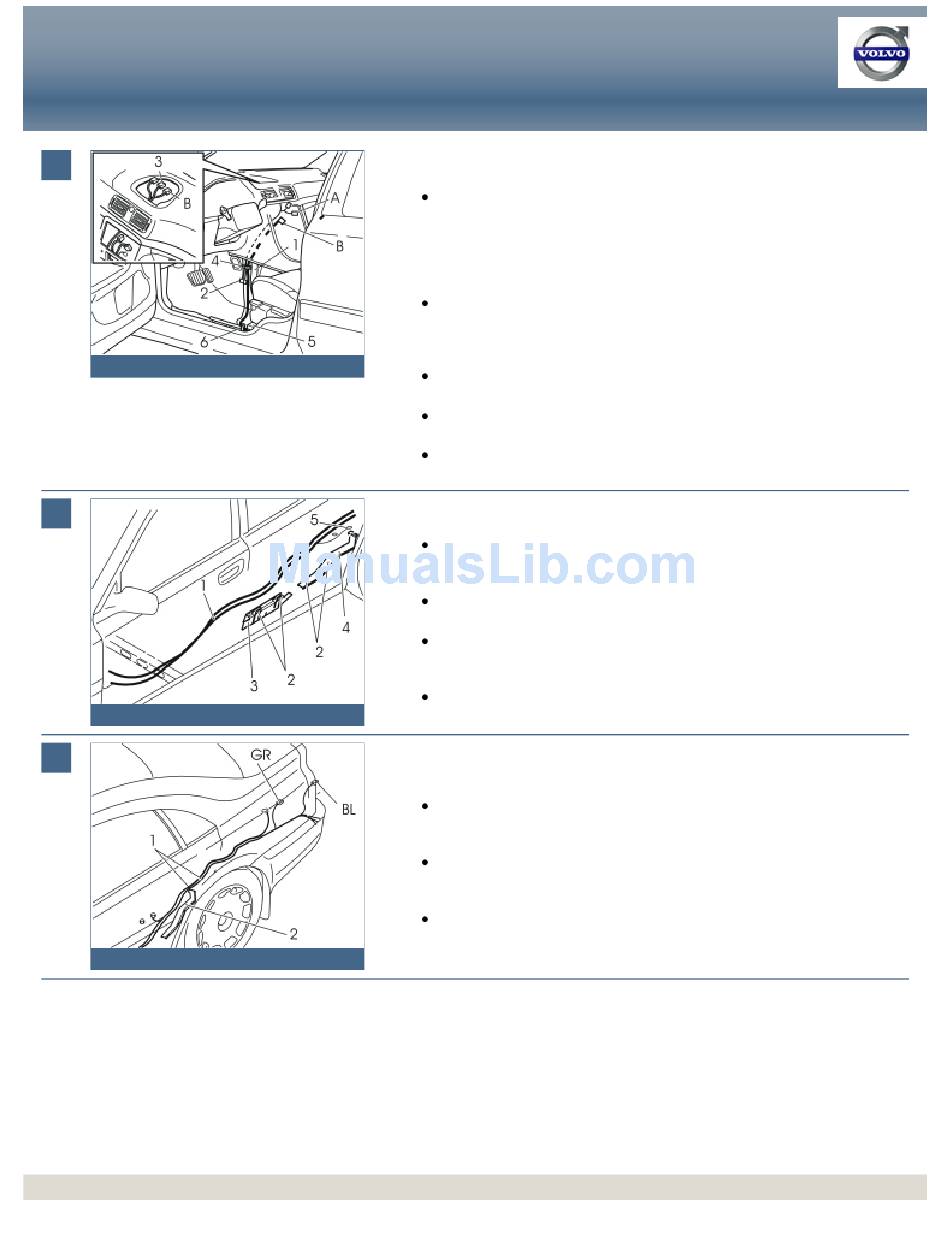

Cable routing
Route the wiring (A in the kit illustration) for the display screen and the radio, and
the loose cable for the display screen with the ten pin connectors (B in the kit
illustration) for the radio socket between the air duct (1) and the stay (2). Ensure
that the straight connector on the loose cable (B) is routed to the hole for the
radio
Route the display screen green 5-pin power supply connector (3) and the cable
(B) to the left of the air ducts above the hole for the radio. Continue up through
the cut out for the dashboard loudspeaker
M3702809
Secure the wiring in the stay (2) using a tie strap (4)
Route the wiring above and along the air duct (1) to the member (5)
Clamp the wiring at the existing cable harness (6) using a tie strap.
Cable routing
Route the cables (1) under the carpet along the left side of the car to the rear
door
Install protective caps on the lugs (2) for the cable ducts
Route the wiring further above and along the front cable duct (3). Continue along
the right hand side of the rear cable duct (4)
Connect the cable in the rear ground terminal (5) at the left side of the rear seat.
M3702379
Cable routing
Route the wiring (1):
out along the right-hand side of the cable duct (2) and under the wiring which is
connected there. Remove the connectors if necessary
up along the top of the wheel arch and out through the hole at the top of the
wheel arch
down along the wheel arch. Position the wiring as illustrated.
M3702807
