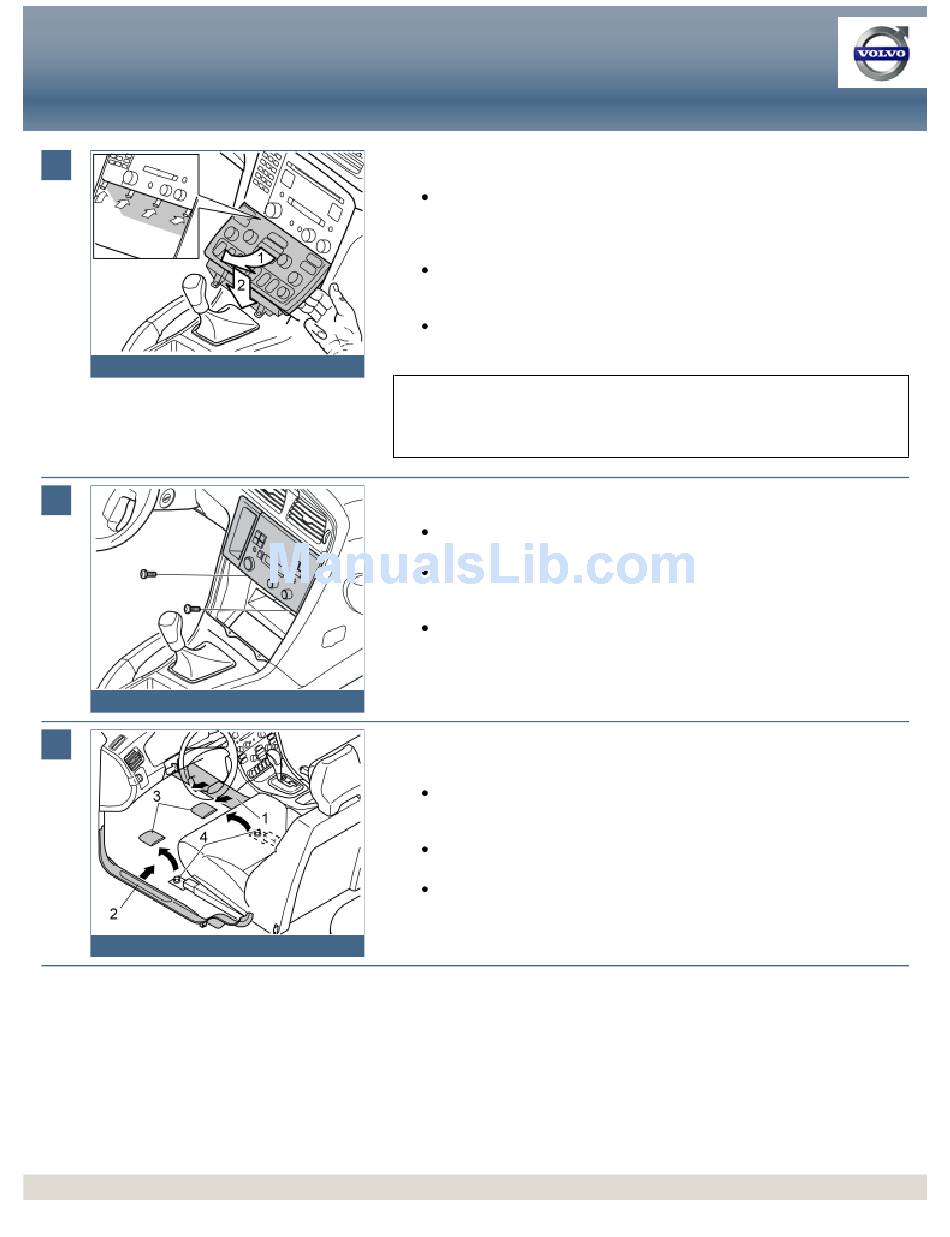

Preparations
Angle the dashboard environment panel outwards so that it is possible to insert a
couple of fingers between the centre console and the reverse of the dashboard
environment panel
Remove the dashboard environment panel by pulling it downward, maintaining
the same angle. Some force is required because the panel is tightly installed
Disconnect the connectors on the reverse of the dashboard environment panel.
Place the dashboard environment panel to one side.
M8503045
Note!
If any of the outer hooks break off, these must be repaired. The method for this can be
found in the Workshop Manual in the section about the dashboard.
Preparations
Remove the screws from the radio bracket
Pull out the bracket with the radio. Pull the lower corner while pressing
downwards
Disconnect the connectors on the radio. Remove the bracket with the radio.
M3903036
Preparations
Remove:
the left side panel (1) from the centre console. First turn the screw clip. Pull the
panel outwards and backwards
the sill trim panel (2) at the left front door
the covers (3) and the screws (4). There are new screws in the kit.
D8502410
