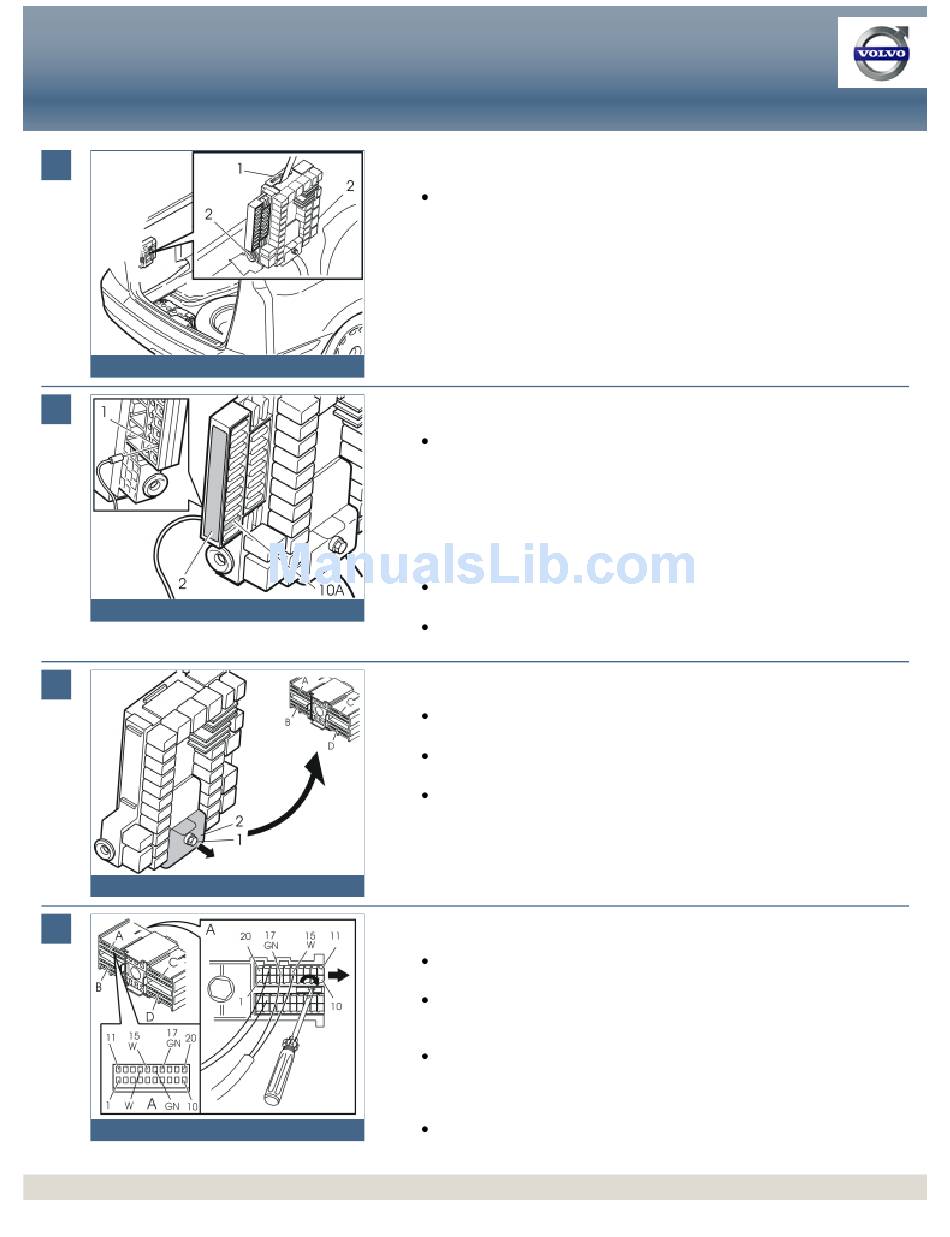

Terminals in the fuse holder
Remove the rear electronic module. First open the catch (1) on the top of the
module. Fold the module forward. Lift the module from the mountings (2).
M3702263
Terminals in the fuse holder
Connect the new routed red and white cable to the outer terminal (1) on the
reverse of fuse socket number 10 on the fuse holder. Remove the decal (2).
Carefully pry up the red secondary locking on the face in the end nearest
terminal 10. At the same time press the cable into position.
If there is a problem inserting the cable the fuses on the outer side must be removed in
order to open the red secondary locking further.
Reinstall the decal
M3702808
Install a 10A fuse in fuse socket 10 on the fuse holder.
Terminals in the fuse holder
Remove the screw (1)
Pull out the cover (2) using the four connectors
Remove the cover from the four connectors by bending the three hooks to one
side.
D3701827
Terminals in the fuse holder
Insert a small screwdriver in the socket on connector A as illustrated
Twist the screwdriver so that the holders open. At the same time press the
connector out to the side
Connect the white (W) cable to terminal 15 and the green (GN) cable to terminal
17.
Reinstall:
M3702569 the connector
