the cover on the connector
the connectors on the rear electronic module. Tighten the screw
the rear electronic module.

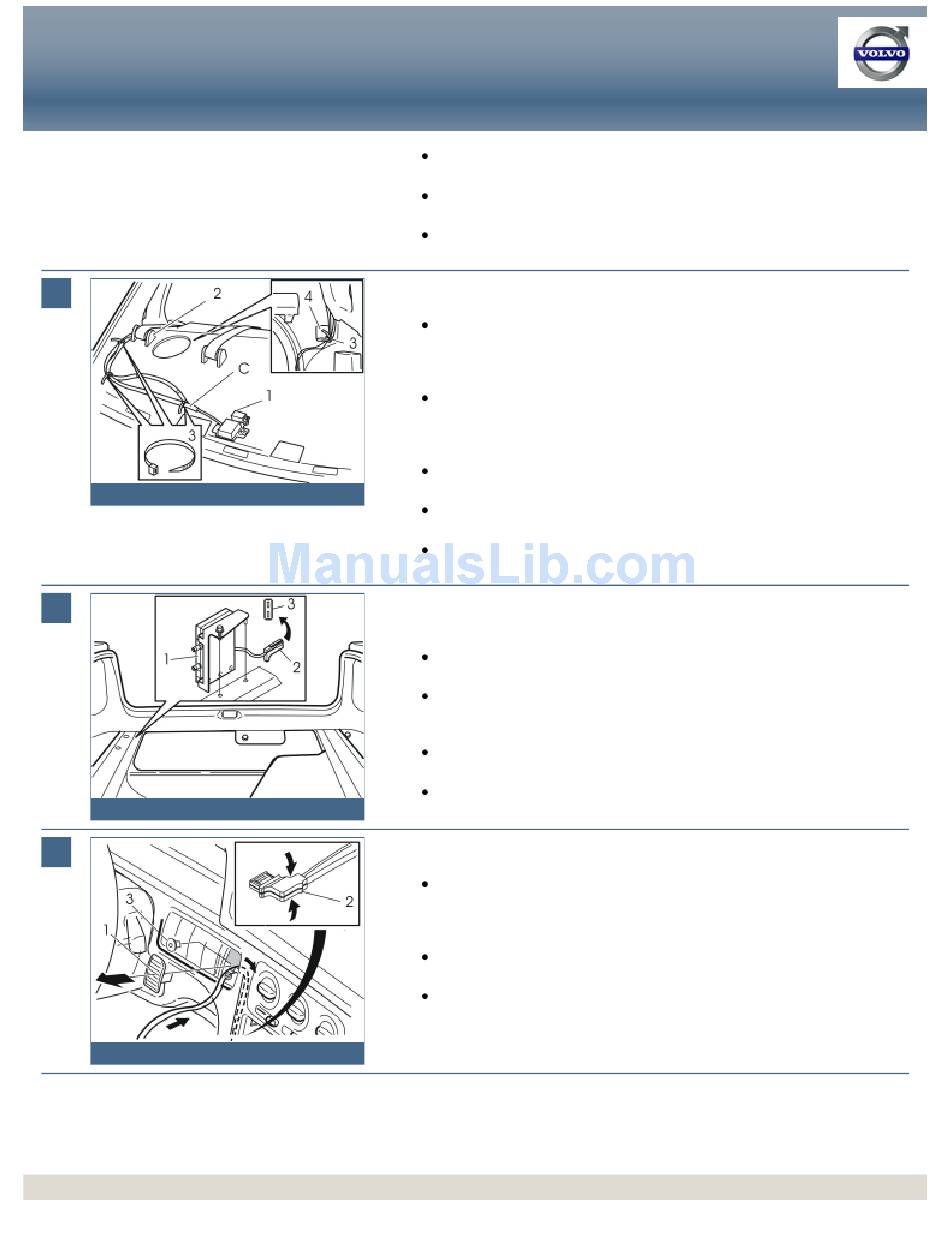

Installing and connecting the Global Positioning System (GPS) aerial
Install the new Global Positioning System (GPS) aerial (1) in the guide hole. Press
the Global Positioning System (GPS) aerial into place using the clip in the hole in
the centre of the rear edge of the parcel shelf as illustrated
Route the new cable (C in the kit illustration) for the Global Positioning System
(GPS) aerial. Follow the routing of the existing loudspeaker cable inside the seat
belt holder (2)
Connect the cable to the Global Positioning System aerial
M3702381
Secure at the points (3)
Route the cable through the lead-in (4) to the rear edge of the wheel arch.
Installing the DVD reader
Does not apply to USA
Remove the existing antenna amplifier (if applicable)
Connect the cable (2) for the new antenna amplifier (1) to the connector (3) for
the antenna in the rear bumper by the right-hand tail lamp
Position the aerial amplifier on the panel edge in front of the right-hand tail lamp
Tighten the antenna amplifier onto the edge of the panel.
M3903315
Installing the DVD reader
Route the new transparent single cable (D in the kit illustration) from the lower
terminal (1) for the aerial amplifier, along the existing cable harness in the rear
crossmember and to the rear edge of the left-hand rear wheel well
Clamp the cable at the existing cable harness using tie straps (2)
If the existing aerial amplifier has been removed, reinstall the disconnected black
cable in the upper socket (3) in the aerial amplifier.
M3903567
