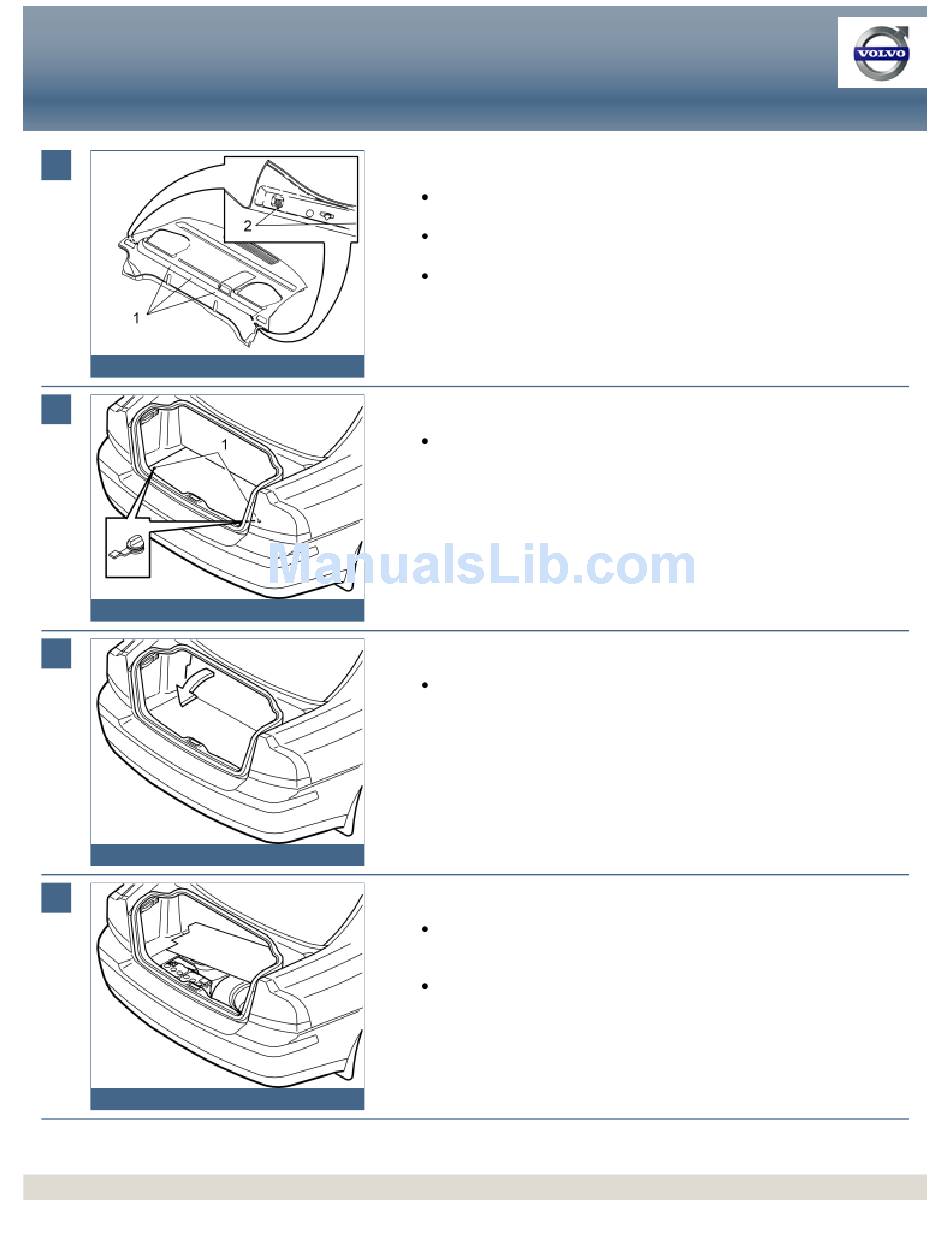

Preparations
Carefully lift the front edge of the parcel shelf panel until the clips (1) release
Lift up the panel further until the locating pins (2) release from their holes
Pull out the parcel shelf. Lay the parcel shelf on the folded backrests.
M8503598
Preparations
Remove the cargo compartment carpet at the rear edge. First turn the two knobs
(1) 90°.
M8503480
Preparations
Pull up the front of the cargo compartment carpet. Fold the front half back over
the rear half of the cargo compartment carpet.
M8503481
Preparations
Slide the entire cargo compartment carpet forward slightly. Twist slightly to
remove the carpet through the tailgate opening
Remove the cargo compartment carpet.
M8503482
