Installation instructions, accessories
Volvo Car Corporation Gothenburg, Sweden
Instruction No
Instruction No
Version
Version
31330605
31330605
1.3
1.3
IMG-349782
IMG-349782
© Volvo Car Corporation
Part. No.
Part. No.
31330863, 31330864, 31330865, 31330866, 31330867, 31330868, 9487194, 9487195, 9487196
31330863, 31330864, 31330865, 31330866, 31330867, 31330868, 9487194, 9487195, 9487196
Navigation system, portable
Navigation system, portable
Navigation system, portable- 31330605 - V1.3
Page 1 / 28

Advertisement

loading
Need help?

Need help?

Do you have a question about the Navigation system and is the answer not in the manual?

Questions and answers

Related Manuals for Volvo Navigation system

Summary of Contents for Volvo Navigation system

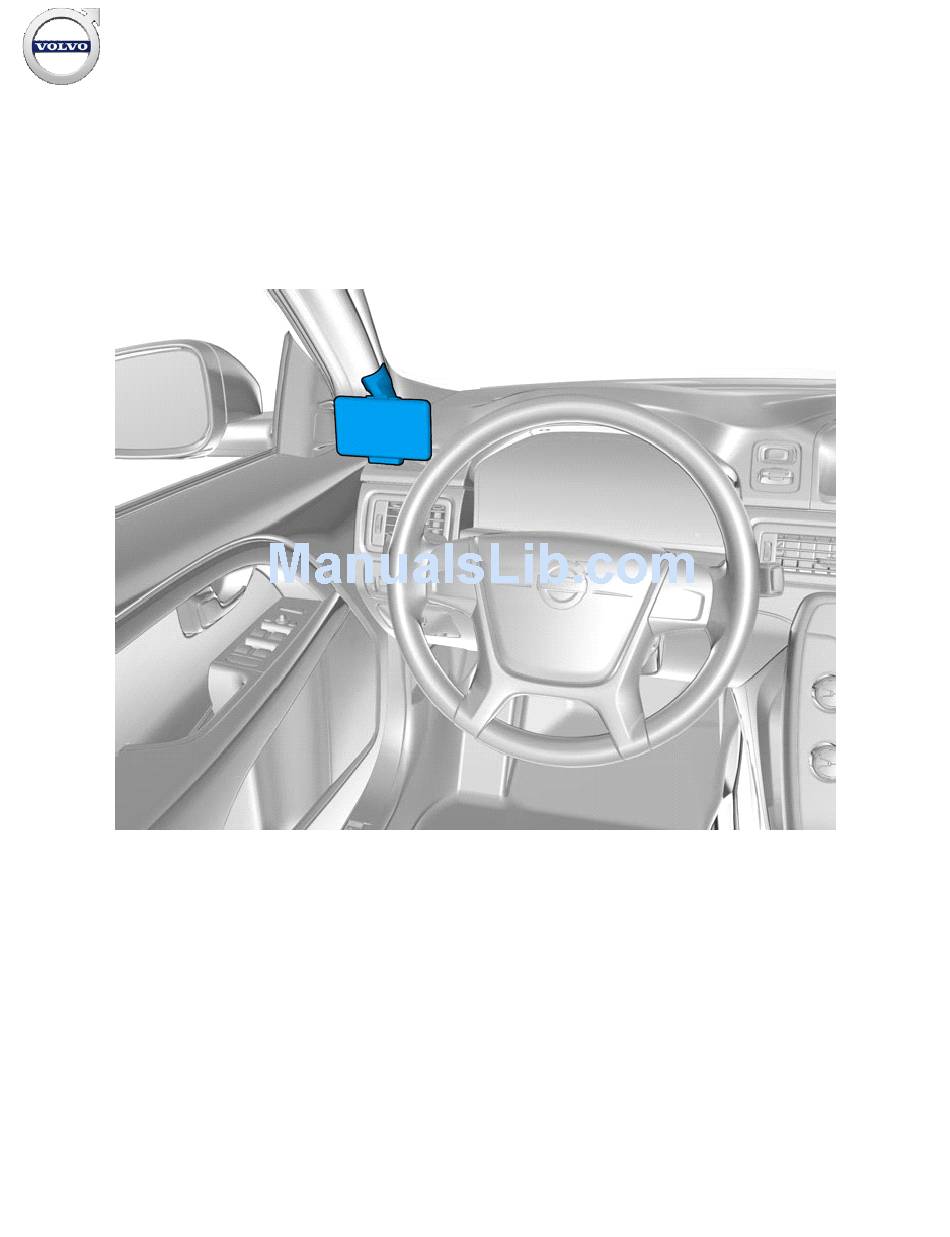

  • Page 1 31330863, 31330864, 31330865, 31330866, 31330867, 31330868, 9487194, 9487195, 9487196 31330863, 31330864, 31330865, 31330866, 31330867, 31330868, 9487194, 9487195, 9487196 Navigation system, portable Navigation system, portable IMG-349782 IMG-349782 © Volvo Car Corporation Navigation system, portable- 31330605 - V1.3 Page 1 / 28...

  • Page 2: Special Tools

    999 8081 TORQUE GAUGE 0-6 Nm Tool number:999 8081 Tool description:TORQUE GAUGE 0-6 Nm Tool boards:08 Equipment A0000162 IMG-239664 IMG-239660 IMG-239681 IMG-317443 IMG-327738 IMG-239980 IMG-244945 IMG-239981 IMG-239667 © Volvo Car Corporation Navigation system, portable- 31330605 - V1.3 Page 2 / 28...
  • Page 3 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden IMG-347417 © Volvo Car Corporation Navigation system, portable- 31330605 - V1.3 Page 3 / 28...
  • Page 4 Volvo dealer. Conditions Where the procedure differs, the right-hand version is also shown with text and image. Set the ignition key to position 0. IMG-332193 Removal © Volvo Car Corporation Navigation system, portable- 31330605 - V1.3 Page 4 / 28...
  • Page 5 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Remove the panel. IMG-338119 Release the lock. IMG-344717 IMG-344721 © Volvo Car Corporation Navigation system, portable- 31330605 - V1.3 Page 5 / 28...
  • Page 6 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Remove the panel. IMG-344722 Remove the screws. IMG-341879 Disconnect the connector. IMG-341941 © Volvo Car Corporation Navigation system, portable- 31330605 - V1.3 Page 6 / 28...

  • Page 7: Remove The Screw

    Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden IMG-341940 Remove the screw. IMG-341880 © Volvo Car Corporation Navigation system, portable- 31330605 - V1.3 Page 7 / 28...
  • Page 8 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Remove the panel. IMG-341942 IMG-341943 Install component that comes with the accessory kit. IMG-355251 © Volvo Car Corporation Navigation system, portable- 31330605 - V1.3 Page 8 / 28...
  • Page 9 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden IMG-355237 Note! Ensure that the part is correctly positioned against the panel's surface. IMG-355266 IMG-355246 © Volvo Car Corporation Navigation system, portable- 31330605 - V1.3 Page 9 / 28...
  • Page 10 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Note! Ensure that the part is correctly positioned against the panel's surface. IMG-355253 Install the screw. IMG-355255 © Volvo Car Corporation Navigation system, portable- 31330605 - V1.3 Page 10 / 28...
  • Page 11 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Note! Ensure that the part is correctly positioned against the panel's surface. IMG-355254 Install the screw. IMG-355271 IMG-348746 © Volvo Car Corporation Navigation system, portable- 31330605 - V1.3 Page 11 / 28...
  • Page 12 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Remove the screws. IMG-346732 Scribe/mark up IMG-355276 IMG-355278 © Volvo Car Corporation Navigation system, portable- 31330605 - V1.3 Page 12 / 28...
  • Page 13 Adjust the cable length so that the marking ends up as displayed in the image. IMG-347714 Right-hand drive vehicles Adjust the cable length so that the marking ends up as displayed in the image. IMG-348302 All vehicles © Volvo Car Corporation Navigation system, portable- 31330605 - V1.3 Page 13 / 28...
  • Page 14 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Install component that comes with the accessory kit. IMG-355252 Install the screws. IMG-350293 IMG-345631 © Volvo Car Corporation Navigation system, portable- 31330605 - V1.3 Page 14 / 28...
  • Page 15 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden IMG-347221 Use special tool: T9512932, Tension spring IMG-345637 IMG-351627 © Volvo Car Corporation Navigation system, portable- 31330605 - V1.3 Page 15 / 28...
  • Page 16 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Pull the wiring through. IMG-351629 Install the panel. IMG-345918 © Volvo Car Corporation Navigation system, portable- 31330605 - V1.3 Page 16 / 28...
  • Page 17 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Use special tool: T9998081, TORQUE GAUGE 0-6 Nm Install the screw. IMG-345647 IMG-345771 Remove the panel. IMG-341878 © Volvo Car Corporation Navigation system, portable- 31330605 - V1.3 Page 17 / 28...
  • Page 18 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Remove the panel. IMG-346036 Right-hand drive vehicles Remove the panel. IMG-347139 All vehicles © Volvo Car Corporation Navigation system, portable- 31330605 - V1.3 Page 18 / 28...
  • Page 19 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Remove the panel. IMG-349993 Remove the panel. IMG-350006 Remove the screw. On both sides. IMG-352301 © Volvo Car Corporation Navigation system, portable- 31330605 - V1.3 Page 19 / 28...
  • Page 20 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Remove the panel. IMG-352271 IMG-350000 Remove the screws. IMG-350026 © Volvo Car Corporation Navigation system, portable- 31330605 - V1.3 Page 20 / 28...
  • Page 21 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden IMG-349999 Disconnect the connector. IMG-349992 © Volvo Car Corporation Navigation system, portable- 31330605 - V1.3 Page 21 / 28...
  • Page 22 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Use special tool: T9512932, Tension spring IMG-350072 Pull the wiring through. IMG-350071 Connect the connectors. IMG-350097 © Volvo Car Corporation Navigation system, portable- 31330605 - V1.3 Page 22 / 28...
  • Page 23 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Tear off the excess foam tape. IMG-350114 IMG-350774 IMG-350771 © Volvo Car Corporation Navigation system, portable- 31330605 - V1.3 Page 23 / 28...
  • Page 24 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Reinstall the screws. IMG-350026 IMG-350077 © Volvo Car Corporation Navigation system, portable- 31330605 - V1.3 Page 24 / 28...
  • Page 25 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Use special tool: T9512932, Tension spring IMG-348191 IMG-351846 Right-hand drive vehicles © Volvo Car Corporation Navigation system, portable- 31330605 - V1.3 Page 25 / 28...
  • Page 26 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Use special tool: T9512932, Tension spring IMG-348381 IMG-351881 All vehicles © Volvo Car Corporation Navigation system, portable- 31330605 - V1.3 Page 26 / 28...
  • Page 27 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Place any excess inside the floor carpet. IMG-351641 Connect the connectors. IMG-348232 Tear off the excess foam tape. IMG-351642 © Volvo Car Corporation Navigation system, portable- 31330605 - V1.3 Page 27 / 28...
  • Page 28 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Install the cable. Reinstall the removed parts in reverse order. IMG-351643 IMG-348841 © Volvo Car Corporation Navigation system, portable- 31330605 - V1.3 Page 28 / 28...
