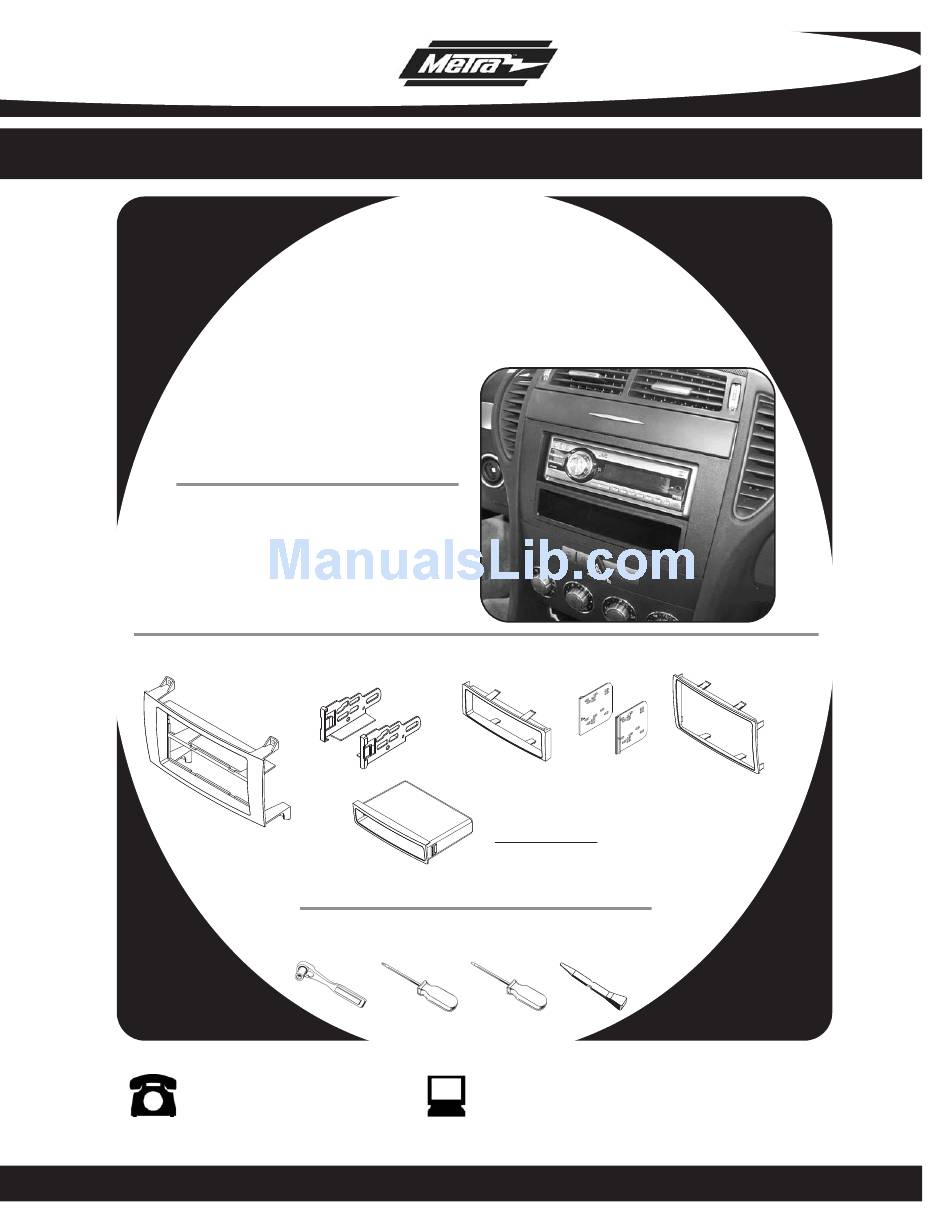

INSTALLATION INSTRUCTIONS FOR PART 99-8713
Mercedes Benz SLK Class
99-8713
KIT FEATURES
• DIN radio provision with pocket
• ISO radio provision with pocket
• Double DIN radio provision
• Stacked ISO units provision
KIT COMPONENTS
A) Radio Housing B) ISO Brackets C) Trim Plate D) Double DIN Brackets E) Double DIN Trim Plate F) Pocket
A
Socket Set • Torx Screwdriver • Small Flat Blade Screwdriver Or Panel Removal Tool
1-800-221-0932
© COPYRIGHT 2004-2009 METRA ELECTRONICS CORPORATION
APPLICATIONS
2005-2009
C
B
F
ANTENNA CONNECTIONS
(Sold Separately)
Antenna adapter:
• 40-VW12 - Mercedes antenna adapter
TOOLS REQUIRED:
www.metraonline.com
D
E
Advertisement
Related Manuals for Metra Electronics 99-8713
Summary of Contents for Metra Electronics 99-8713
- Page 1 INSTALLATION INSTRUCTIONS FOR PART 99-8713 APPLICATIONS Mercedes Benz SLK Class 2005-2009 99-8713 KIT FEATURES • DIN radio provision with pocket • ISO radio provision with pocket • Double DIN radio provision • Stacked ISO units provision KIT COMPONENTS A) Radio Housing B) ISO Brackets C) Trim Plate D) Double DIN Brackets E) Double DIN Trim Plate F) Pocket...
-
Page 2: Table Of Contents
99-8713 T ABLE OF CONTENTS Dash Disassembly Mercedes Benz SLK Class 2005-2009 ....1-2 Kit Assembly DIN Radio Provision with Pocket......3 ISO Radio Provision with Pocket .. -
Page 3: Dash Disassembly
99-8713 DASH DISASSEMBL Y MERCEDES BENZ SLK CLASS 2005-2009 Disconnect the negative battery ter- minal to prevent an accidental short circuit. Unclip and remove trim around shifter knob including shifter boot. (Figure A) Unclip and remove entire panel sur- rounding shifter starting at the rear of the panel under the parking brake handle. - Page 4 99-8713 DASH DISASSEMBL Y MERCEDES BENZ SLK CLASS 2005-2009 Unclip and remove the climate control unit. (Figure F) Remove the (2) screws securing the hazard switch panel and remove the panel. Figure G) Open the beverage holder above the radio and remove the (2) screw covers.
-
Page 5: Kit Assembly
99-8713 KIT ASSEMBL Y DIN RADIO PROVISION WITH POCKET Note: Refer also to the instructions included with the aftermarket radio. Slide the DIN cage into the Radio Housing and secure by bending the metal locking tabs outward. (Figure A) Slide the aftermarket radio into the cage until it snaps into place. -
Page 6: Iso Radio Provision With Pocket
99-8713 KIT ASSEMBL Y ISO RADIO PROVISION WITH POCKET Note: Refer also to the instructions included with the aftermarket radio. Mount the ISO Brackets to the radio with the screws supplied with the radio. (Figure A) Slide the radio into the radio housing until the side clips snap into place. -
Page 7: Double Din Radio Provision
99-8713 KIT ASSEMBL Y DOUBLE DIN RADIO PROVISION Note: Refer also to the instructions included with the aftermarket radio. Cut and remove the center bar from the Radio Housing. (Figure A) Snap the Double DIN brackets to the inside edge of the radio housing. -
Page 8: Stacked Iso Units Provision
99-8713 KIT ASSEMBL Y STACKED ISO UNITS PROVISION Note: Refer also to the instructions included with the aftermarket radio. Cut and remove the center bar from the radio housing. (Figure A) Snap the Double DIN brackets to the inside edge of the radio housing. -
Page 9: Final Assembly
99-8713 KIT ASSEMBL Y FINAL ASSEMBL Y 1 Locate the factory wiring harness in the dash and make the connection as shown. Metra recomends using the proper mating adapter and making the connections as shown. (Isolate and individually tape off the ends of any unused wires to prevent electrical short circuit.) - Page 10 99-8713 NOTES...
- Page 11 99-8713 NOTES...
- Page 12 99-8713 INSTRUCTIONS 1-800-221-0932 www.metraonline.com REV. 04/17/09 © COPYRIGHT 2004-2009 METRA ELECTRONICS CORPORATION INST99-8713...
