INSTALLATION INSTRUCTIONS FOR PART 99-6504
Chrysler multi-kit 1998-2009
KIT FEATURES
• ISO head unit provision with pocket
KIT COMPONENTS

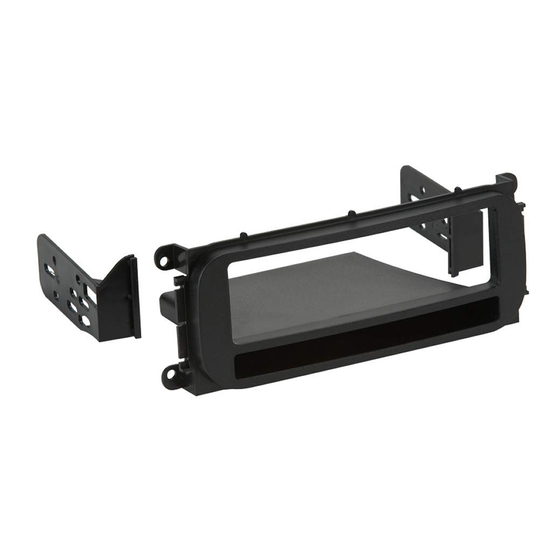

• A) Radio housing • B) ISO brackets
A
B
TOOLS REqUIREd
• Phillips screwdriver • Torx #20 • Socket wrench • Small flat blade screwdriver
METRA. The World's best kits.
APPLICATIONS
See application list inside
99-6504
™
1-800-221-0932
WIRING & ANTENNA CONNECTIONS (sold separately)
Wiring Harness:
• 70-1817 - Chrysler harness 1984-2006
(vehicle specific)
• 70-6502 - Chrysler harness 2002-up
(vehicle specific)
• 70-1818 - Chrysler amplifier integration harness
1984-up (vehicle specific)
• 70-6503 - Chrysler/Dodge amplifier integration
harness 2002-up (vehicle specific)
Antenna Adapter:
• 40-CR10 - Chrysler factory antenna to
aftermarket radio adapter cable 2002-up
CAUTION: Metra recommends disconnecting the
negative battery terminal before beginning any
installation. All accessories, switches, and especially
air bag indicator lights must be plugged in before
reconnecting the battery or cycling the ignition.
NOTE: Refer to the instructions included with the
aftermarket radio.
metraonline.com
