INSTALLATION INSTRUCTIONS FOR PART 99-8219
99-8219
KIT FEATURES
• DIN radio provision with pocket
• ISO radio provision with pocket
KIT COMPONENTS

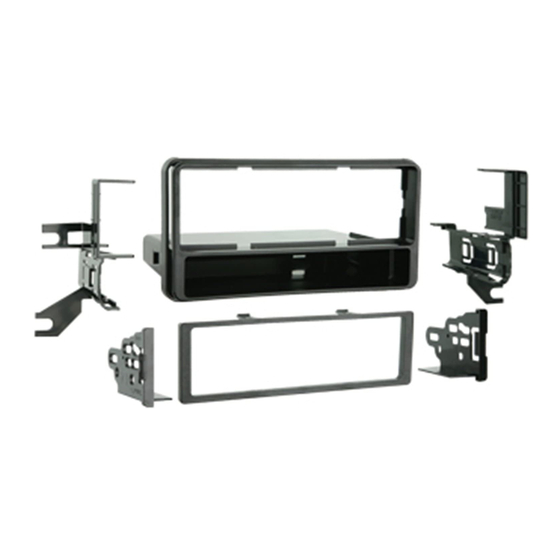

• A) Radio Housing • B) Housing Brackets • C) ISO Snap In Brackets • D) Trim Plate
A
C
1-800-221-0932
© COPYRIGHT 2004-2009
APPLICATIONS
Toyota FJ Cruiser
2007-2009
B
D
TOOLS REQUIRED:
Phillips Screwdriver Or Panel Removal Tool
www.metraonline.com
METRA ELECTRONICS CORPORATION
WIRING AND ANTENNA CONNECTIONS
(Sold Separately)
Wire harness:
• 70-1761 Toyota 1987-up
Antenna adapter:
• Not required
