Metra Electronics 99-8903B Installation Instructions Manual

Subaru legacy & outback 2010

INSTALLATION INSTRUCTIONS FOR PART 99-8903B

(FOR NON-NAVIGATION RADIOS ONLY)

99-8903B

KIT FEATURES

• DIN radio provision with pocket

• ISO radio provision with pocket

• Painted scratch resistant matte black

KIT COMPONENTS

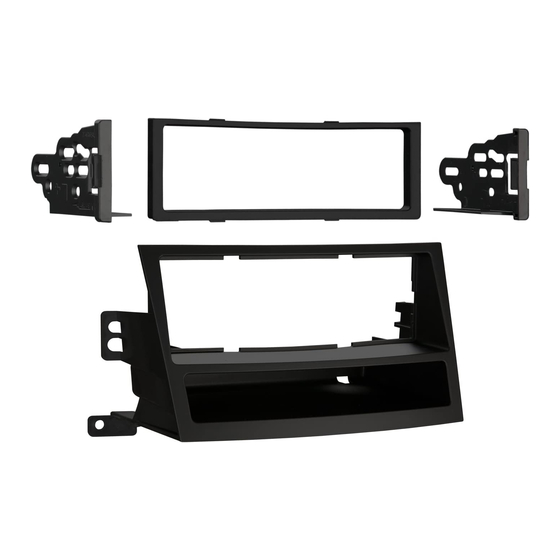

A) Radio Housing B) ISO Brackets C) Trim plate

• Small Flat Blade Screwdriver • Phillips Screwdriver

METRA. THE WORLD'S BEST KITS.™

1-800-221-0932

APPLICATIONS

SUBARU

LEGACY & OUTBACK

2010

WIRING AND ANTENNA CONNECTIONS (Sold Separately)

• 70-8901 Subaru Harness 1990-Up

• 70-7552 Nissan Harness 2007-Up

• 40-SB10 Subaru Antenna Adapter 2005-Up

TOOLS REQUIRED:

• Panel Removal Tool • Socket Wrench

Wiring Harness:

Antenna Adapter:

www.metraonline.com

Table of Contents

Need help?

Do you have a question about the 99-8903B and is the answer not in the manual?

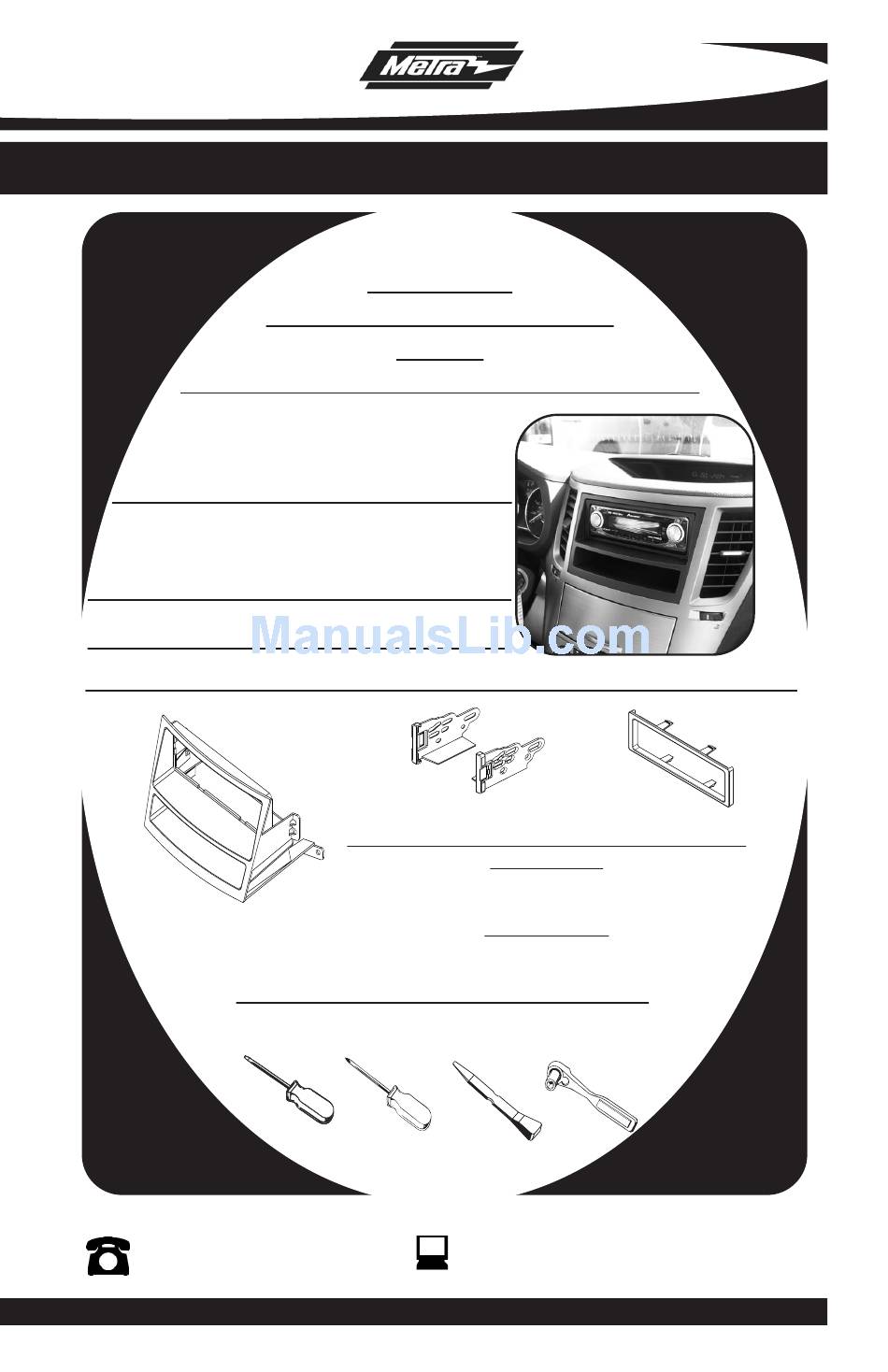

Page 1 INSTALLATION INSTRUCTIONS FOR PART 99-8903B APPLICATIONS SUBARU LEGACY & OUTBACK 2010 (FOR NON-NAVIGATION RADIOS ONLY) 99-8903B KIT FEATURES • DIN radio provision with pocket • ISO radio provision with pocket • Painted scratch resistant matte black KIT COMPONENTS A) Radio Housing B) ISO Brackets C) Trim plate...
Page 2 99-8903B TABLE OF CONTENTS Dash Disassembly - 2010 Subaru Legacy ........1 - 2010 Subaru Outback .
Page 3 99-8903B DASH DISASSEMBLY 2010 SUBARU LEGACY / OUTBACK isconnect the negative battery ter- minal to prevent an accidental short circuit. Unclip and remove the radio trim panel including the a/c vents. (Figure A) Remove (4) Phillips screws securing the factory radio.
Page 4 99-8903B KIT ASSEMBLY 2010 SUBARU LEGACY / OUTBACK DIN HEAD UNIT PROVISION Locate the factory wiring harness in the dash. Metra recommends using the proper mating adapter from Metra or AXXESS. Re-connect the negative battery terminal and test the unit for proper operation.
Page 5: Iso Din Head Unit Provision
99-8903B KIT ASSEMBLY 2010 SUBARU LEGACY / OUTBACK ISO DIN HEAD UNIT PROVISION Locate the factory wiring harness in the dash. Metra recommends using the proper mating adapter from Metra or AXXESS. Re-connect the negative battery terminal and test the unit for proper operation.
Page 6 99-8903B NOTES...
Page 7 99-8903B NOTES...
