INSTALLATION INSTRUCTIONS FOR PART 99-7335S
Hyundai Veracruz Limited 2007-2012
KIT FEATURES
• DIN radio provision with pocket
• ISO Mount radio provision with pocket
• Double DIN radio provision
• Painted to match factory dash, "S"=Silver

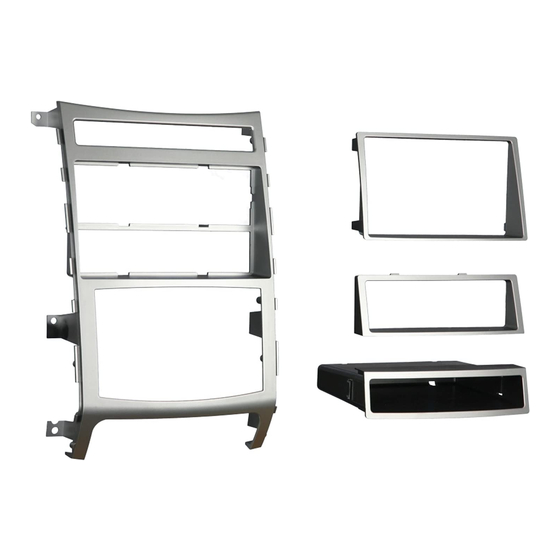

KIT COMPONENTS
• A) Radio housing • B) ISO Brackets • C) ISO Trim plate • D) Double DIN brackets
• E) Double DIN trim plate • F) Pocket
A
B
E
METRA. The World's best kits.
APPLICATIONS
99-7335S
C
F
1-800-221-0932
WIRING & ANTENNA CONNECTIONS (sold separately)
Wiring Harness:
• 70-1004 - KIA/Hyundai 2004-up
• 70-7303 - KIA/Hyundai 2009
Antenna Adapter:
• 40-KI11 - KIA 2007-up
TOOLS REQUIRED
• Small flat blade screwdriver • Panel removal tool
• Phillips screwdriver
D
CAUTION: Metra recommends disconnecting the
negative battery terminal before beginning any
installation. All accessories, switches, and especially
air bag indicator lights must be plugged in before
reconnecting the battery or cycling the ignition.
NOTE: Refer to the instructions included with the
aftermarket radio.
metraonline.com
© COPYRIGHT 2004-2013 METRA ELECTRONICS CORPORATION

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 99-7335S and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Metra Electronics 99-7335S

  • Page 1 INSTALLATION INSTRUCTIONS FOR PART 99-7335S APPLICATIONS Hyundai Veracruz Limited 2007-2012 WIRING & ANTENNA CONNECTIONS (sold separately) Wiring Harness: 99-7335S • 70-1004 - KIA/Hyundai 2004-up KIT FEATURES • 70-7303 - KIA/Hyundai 2009 • DIN radio provision with pocket Antenna Adapter: • ISO Mount radio provision with pocket •...
  • Page 2 Dash Disassembly 99-7335S Table of Contents Hyundai Veracruz Limited 2007-2012 Dash Disassembly 1. Unclip and remove the side trim panels. – Hyundai Veracruz Limited 2007-2012 Tip: Start at the bottom of ......2 (Automatic climate control only) the panels. (Figure A)
  • Page 3: Din Radio Provision With Pocket

    1. Attach the climate control, pocket and the clock display secure by bending the metal locking tabs down. (Figure A) into the 99-7335S radio housing using the factory hardware. (Figure A) 2. Snap the pocket into the bottom opening of the Continue to kit assembly radio housing.
  • Page 4: Iso Radio Provision With Pocket

    Kit Assembly 99-7335S ISO radio provision with pocket 1. Mount the ISO brackets to the radio with the screws supplied with the radio. (Figure A) 2. Snap the pocket into the bottom opening of the radio housing. (Figure B) 3. Slide the radio into the radio opening until the side clips engage.
  • Page 5: Double Din Radio Provision

    Kit Assembly 99-7335S Double DIN radio provision 1. Cut and remove the center bar from the radio housing. (Figure A) 2. Snap the double DIN brackets to the inside edge of the double DIN trim plate. (Figure B) 3. Slide the double DIN radio into the...
  • Page 6 99-7335S Notes...
  • Page 7 99-7335S Notes...
  • Page 8 INSTALLATION INSTRUCTIONS FOR PART 99-7335S NOWLEDGE IS OWER Enhance your installation and fabrication skills by enrolling in the most recognized and respected mobile electronics school in our industry. Log onto www.installerinstitute.com or call 800-354-6782 for more information and take steps toward a better tomorrow.
