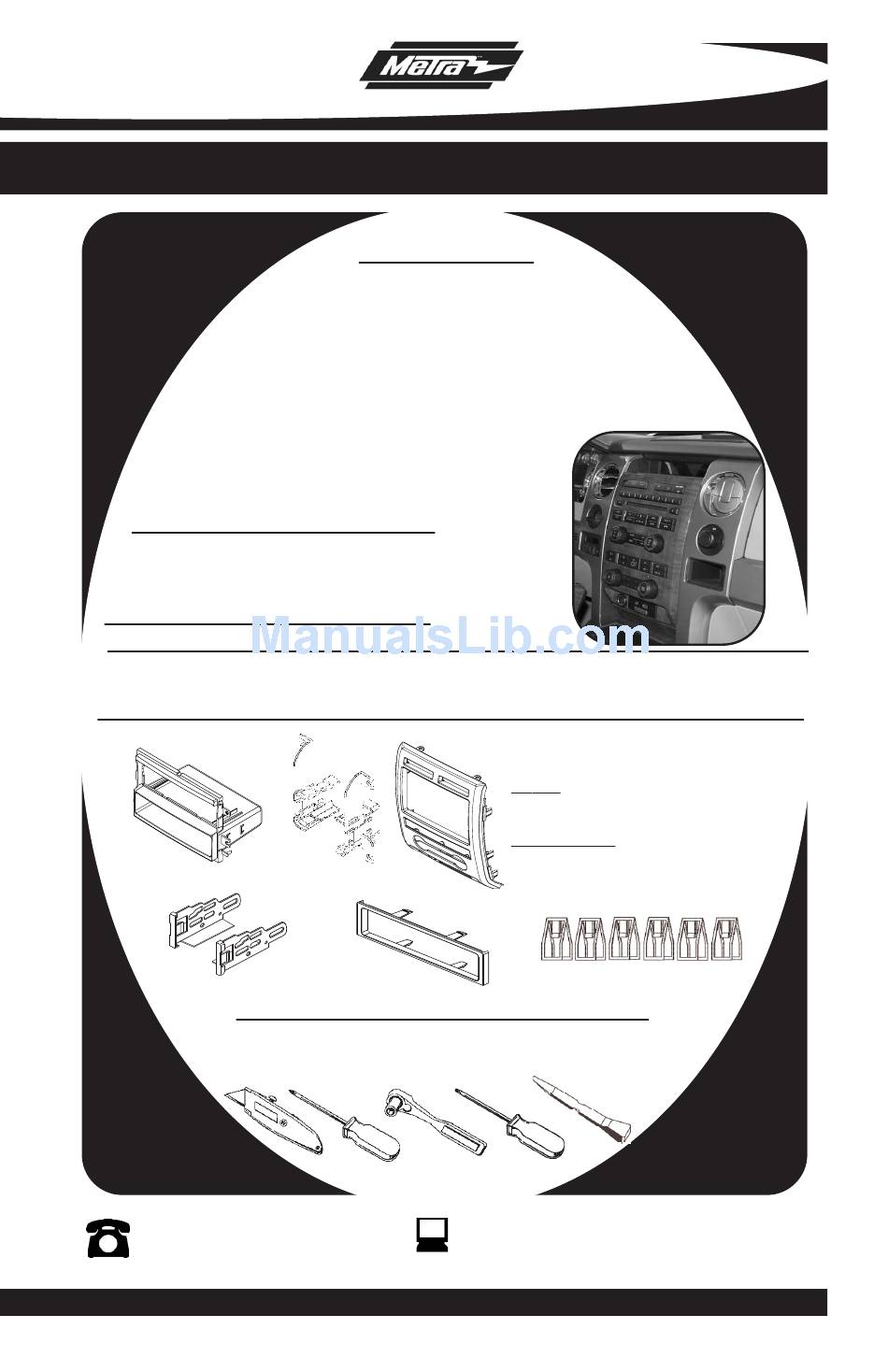

INSTALLATION INSTRUCTIONS FOR PART 99-5822B
LARIAT / KING RANCH / PLATINUM MODELS
99-5822B - BLACK
99-5822AS – PLATINUM / ASH SATIN
99-5822CM - KING RANCH / CURLY MAPLE
99-5822MM – LARIAT / MILANO MAPLE
KIT FEATURES
• DIN Radio Provision With Pocket
• ISO Mount Radio Provision With Pocket
• Painted or Wood Grain

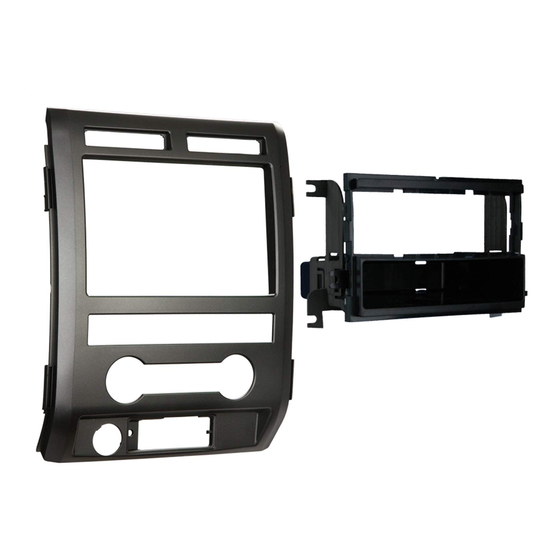

KIT COMPONENTS
• A) Radio Housing • B) Radio Housing Brackets
• D) ISO Brackets • E) ISO Trim Plate • F) (6) U Style Panel Clips
A
D
• Cutting Tool • Phillips Screwdriver • Socket Wrench • Torx Driver
1-800-221-0932
© COPYRIGHT 2010 METRA ELECTRONICS CORPORATION
APPLICATIONS
2009-10 FORD F-150
(Not for NAV Equipped Models)
B
C
E
TOOLS REQUIRED:
• Panel Removal Tool
•
C) Radio Housing Trim Panel
WIRING AND ANTENNA CONNECTIONS
(Sold Separately)
Harness:
• Please see www.metraonline.com for
specific interface harness
Antenna Adapter:
• 40-CR10 - Chrysler antenna adapter
F
www.metraonline.com
02-up
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Metra Electronics 99-5822B
Summary of Contents for Metra Electronics 99-5822B
- Page 1 INSTALLATION INSTRUCTIONS FOR PART 99-5822B 2009-10 FORD F-150 LARIAT / KING RANCH / PLATINUM MODELS (Not for NAV Equipped Models) 99-5822B - BLACK 99-5822AS – PLATINUM / ASH SATIN 99-5822CM - KING RANCH / CURLY MAPLE 99-5822MM – LARIAT / MILANO MAPLE KIT FEATURES •...
-
Page 2: Table Of Contents
Final Assembly ......... . .6 *Note: Refer also to the instructions included with the aftermarket radio. 99-5822B NOWLEDGE IS Enhance your installation and fabrication skills by enrolling in the most recognized and respected mobile electronics school in our industry. -
Page 3: Ford F-150 2009-10
Note: It is not nec- essary to remove the panels com- pletely. (Figure C) Unclip and remove the radio trim panel. (Figure D) Continued on page 2. 99-5822B DASH DISASSEMBLY FORD F-150 2009-10... - Page 4 (Figure F) Remove (4) Torx screws securing the factory climate control to the radio trim panel. (Figure G) Remove (4) 9/32” screws to remove the factory radio. Continue to kit preparation. 99-5822B DASH DISASSEMBLY FACTORY RADIO TRIM PANEL-REAR VIEW...
- Page 5 Attach the (6) U style panel clips to the radio housing in the same location as the factory radio trim panel. (Figure D) Continue to kit assembly. KIT REPLACEMENT RADIO TRIM PANEL-REAR VIEW 99-5822B KIT ASSEMBLY KIT REPLACEMENT RADIO TRIM PANEL-REAR VIEW...
-
Page 6: Din Radio Provision With Pocket
(Figure B) Slide the DIN cage into the Radio Housing and secure by bending the metal locking tabs down. (Figure C) Slide the aftermarket head unit into the cage and secure. (Figure D) Continue to final assembly. 99-5822B KIT ASSEMBLY... -
Page 7: Iso Mount Radio Provision With Pocket
(Figure C) Slide the head unit into the radio opening until the side clips engage. (Figure D) Snap the trim plate into the Radio Housing. (Figure D) Continue to final assembly. 99-5822B KIT ASSEMBLY... -
Page 8: Final Assembly
Re-connect the negative battery terminal and test the unit for proper operation. Reassemble radio and dash assemblies in reverse order of disassembly using the 99-5822B radio housing in place of the factory radio trim panel. FINAL WIRING CONNECTIONS Make wiring connections using the EIA color code chart shown below and the instructions included with the head unit.
