INSTALLATION INSTRUCTIONS FOR PART 99-7603
Nissan Versa 2007-2011
KIT FEATURES
• DIN radio provision with pocket
• ISO radio provision with pocket
• Double DIN radio provision

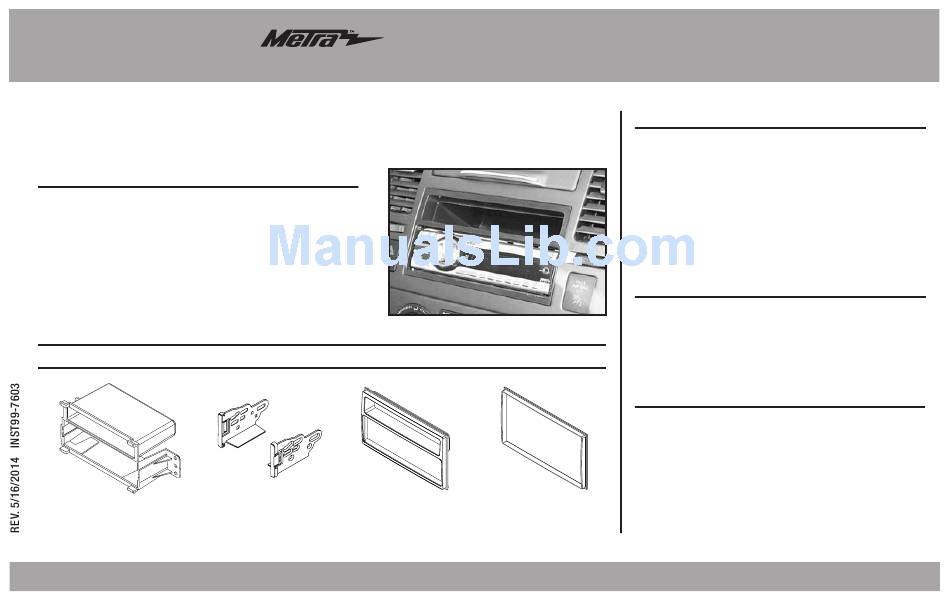

KIT COMPONENTS

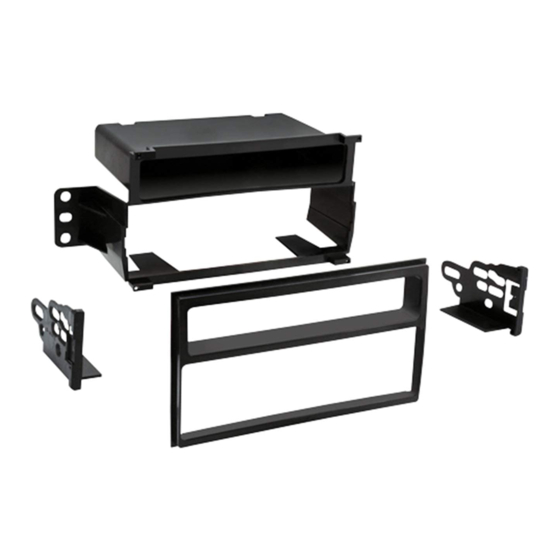

• A) Radio housing • B) ISO brackets • C) Single DIN trim plate • D) Double DIN trim plate
A
B
METRA. The World's best kits.
APPLICATIONS
99-7603
C
™
1-800-221-0932
WIRING & ANTENNA CONNECTIONS (sold separately)
Wiring Harness:
• 70-7552 - Nissan wiring harness power/
4 speaker 2007-up
• 70-7553 - Nissan amplifier integration
harness 2007-up
Antenna Adapter:
• 40-NI12 - Aftermarket radio to Nissan 2007-up
TOOLS REQUIRED
• Small flat blade screwdriver • Panel removal tool
• Phillips screwdriver
D
CAUTION: Metra recommends disconnecting the
negative battery terminal before beginning any
installation. All accessories, switches, and especially
air bag indicator lights must be plugged in before
reconnecting the battery or cycling the ignition.
NOTE: Refer to the instructions included with the
aftermarket radio.
metraonline.com
© COPYRIGHT 2004-2013 METRA ELECTRONICS CORPORATION
