Ford, Lincoln, Mercury 2004-2010
(see inside front cover for applications)
KIT FEATURES
• DIN radio provision with pocket
• ISO DIN radio provision with pocket
• ISO DDIN radio provision
KIT COMPONENTS
• A) Radio housing (a) • B) Radio housing (b) • C) ISO DDIN brackets • D) ISO brackets • E) ISO trim plate
A
B
METRA. The World's best kits.

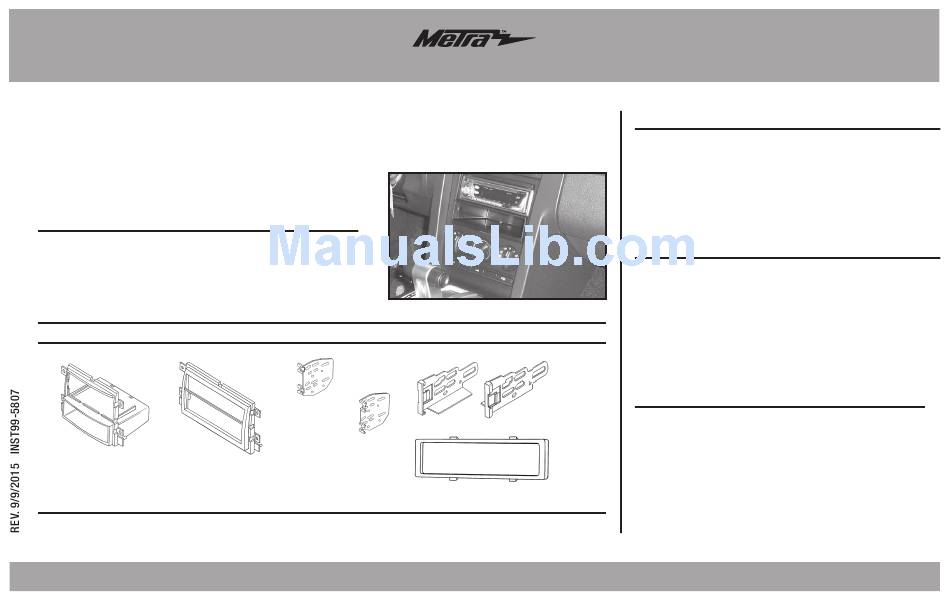

Installation instructions for part 99-5807
99-5807
C
D
E
APPLICATIONS
See inside front cover
metraonline.com
™
WIRING & ANTENNA CONNECTIONS (sold separately)
Wiring Harness:
• Please visit metraonline.com for more information
Antenna Adapter:
• 40-CR10
TOOLS REQUIRED
• Cutting tool • Phillips screwdriver • Socket set
CAUTION!
Metra recommends disconnecting the negative bat -
tery terminal before beginning any installation, unless the vehicle
manufacturer recommends against so. Please check with your local
Dealership for more information. All accessories, switches, climate
controls panels, and especially air bag indicator lights must be con -
nected before reconnecting the battery or cycling the ignition. Also,
do not remove the factory radio with the key in the on position, or the
vehicle running. It would be best to remove the key from the ignition
and then wait a few seconds before removing the factory radio.
