INSTALLATION INSTRUCTIONS FOR PART 99-7009

Mitsubishi Endeavor

99-7009

KIT FEATURES

DIN Head Unit Provisions

ISO DIN Head Unit Provisions

KIT COMPONENTS

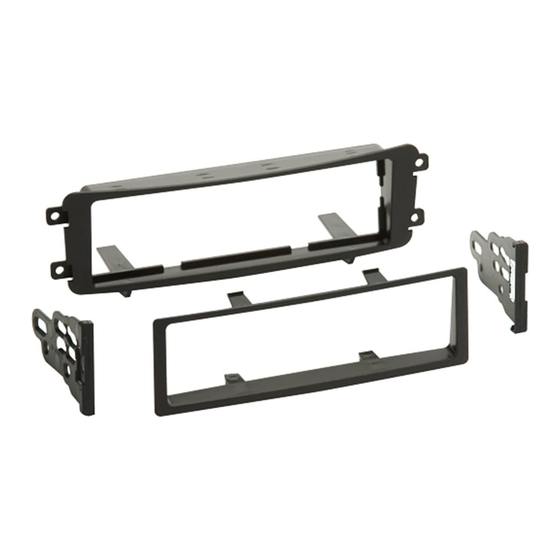

A) Radio Housing

B) ISO Brackets

WIRING AND ANTENNA CONNECTIONS (Sold Separately)

Harness:

Antenna Adapter:

1-800-221-0932

APPLICATIONS

2004-2010

C) Trim Plate

T OOLS REQUIRED:

Phillips Screwdriver

Socket Wrench

www.metraonline.com

Need help?

Do you have a question about the 99-7009 and is the answer not in the manual?

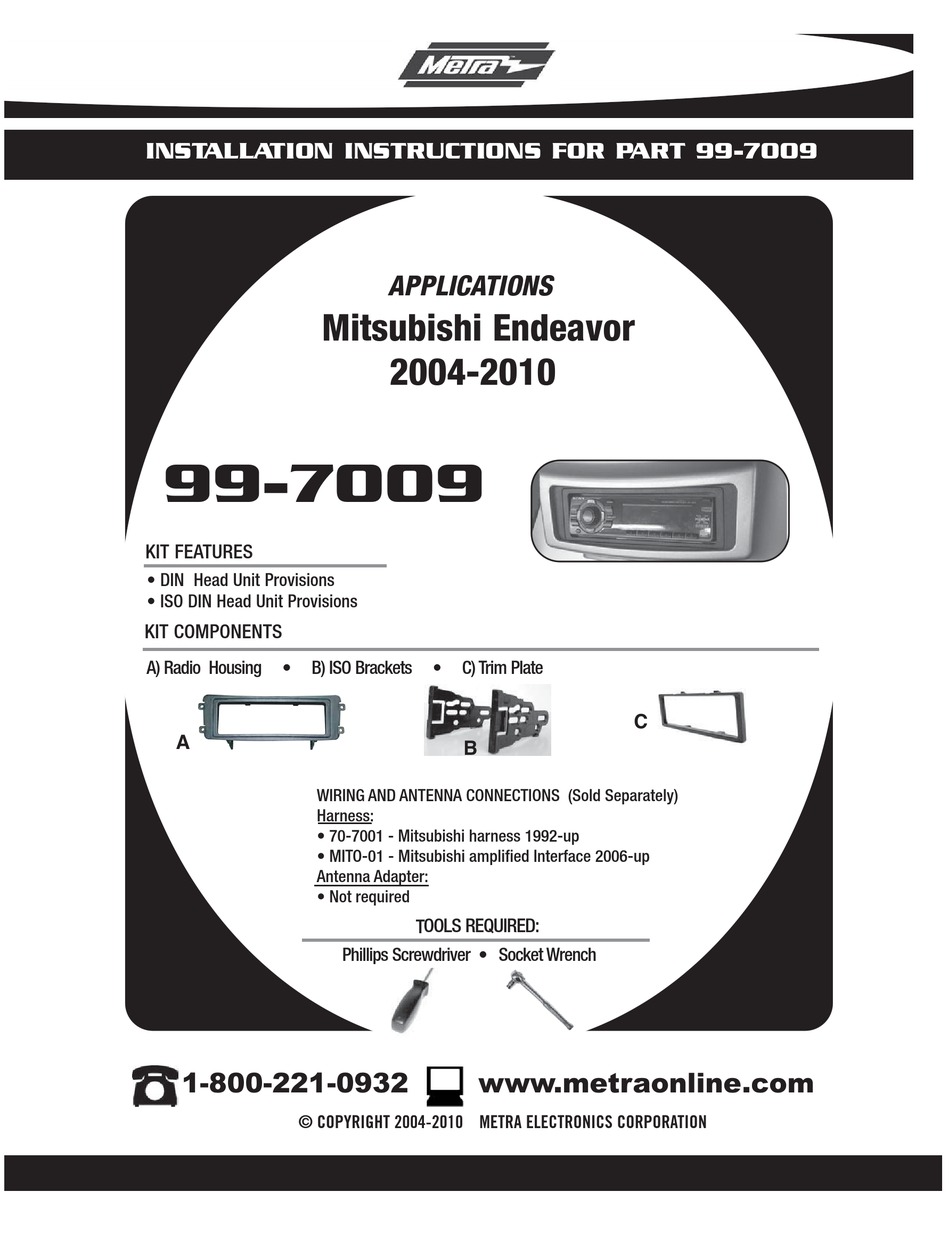

Page 1 INSTALLATION INSTRUCTIONS FOR PART 99-7009 APPLICATIONS Mitsubishi Endeavor 2004-2010 99-7009 KIT FEATURES DIN Head Unit Provisions ISO DIN Head Unit Provisions KIT COMPONENTS A) Radio Housing B) ISO Brackets WIRING AND ANTENNA CONNECTIONS (Sold Separately) Harness: Antenna Adapter: Phillips Screwdriver 1-800-221-0932 ©...
Page 2: Final Assembly
99-7009 Dash - Mitsubishi - ISO Head Unit Provision with Pocket ---------------------------- - DIN Head Unit Provision with Pocket ---------------------------- Final Assembly ------------------------------------------------------ Notes ---------------------------------------------------------------- NOWLEDGE IS nhance your installation and fabrication skills by enrolling in the most recognized and respected mobile electronics school in our industry.
Page 3 Remove (3) Phillips screws to remove factory radio chassis (Figure C) Remove (4) Phillips screws from the pock- et at the bottom of the radio and A/C panel and remove the pocket. (This is where the 99-7009 will be mounted.) (Figure D) 99-7009...
