Metra Electronics 99-7320 Installation Instructions Manual

Hyundai sonata 2006-2008

INSTALLATION INSTRUCTIONS FOR PART 99-7320

APPLICATIONS

Hyundai Sonata

2006-2008

99-7320

KIT FEATURES

• DIN head unit provision

KIT COMPONENTS

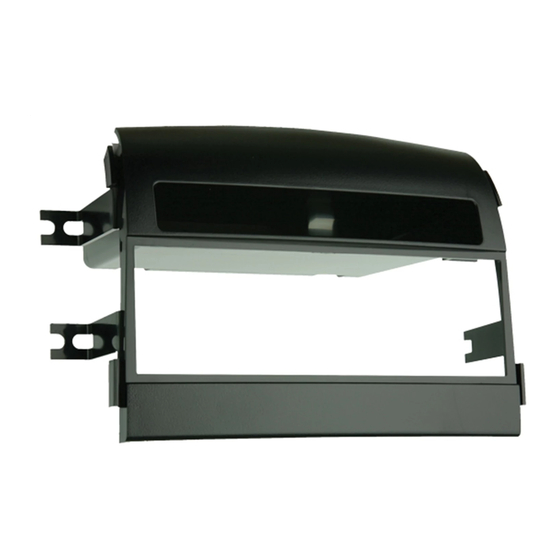

A) Radio Housing

WIRING AND ANTENNA CONNECTIONS

(Sold Separately)

Harness:

• 70-5520 - Ford harness 2003-up

Antenna Adapter:

• Not required

TOOLS REQUIRED:

Phillips Screwdriver • Small Flat Blade Screwdriver

1-800-221-0932

www.metraonline.com

Table of Contents

Do you have a question about the 99-7320 and is the answer not in the manual?

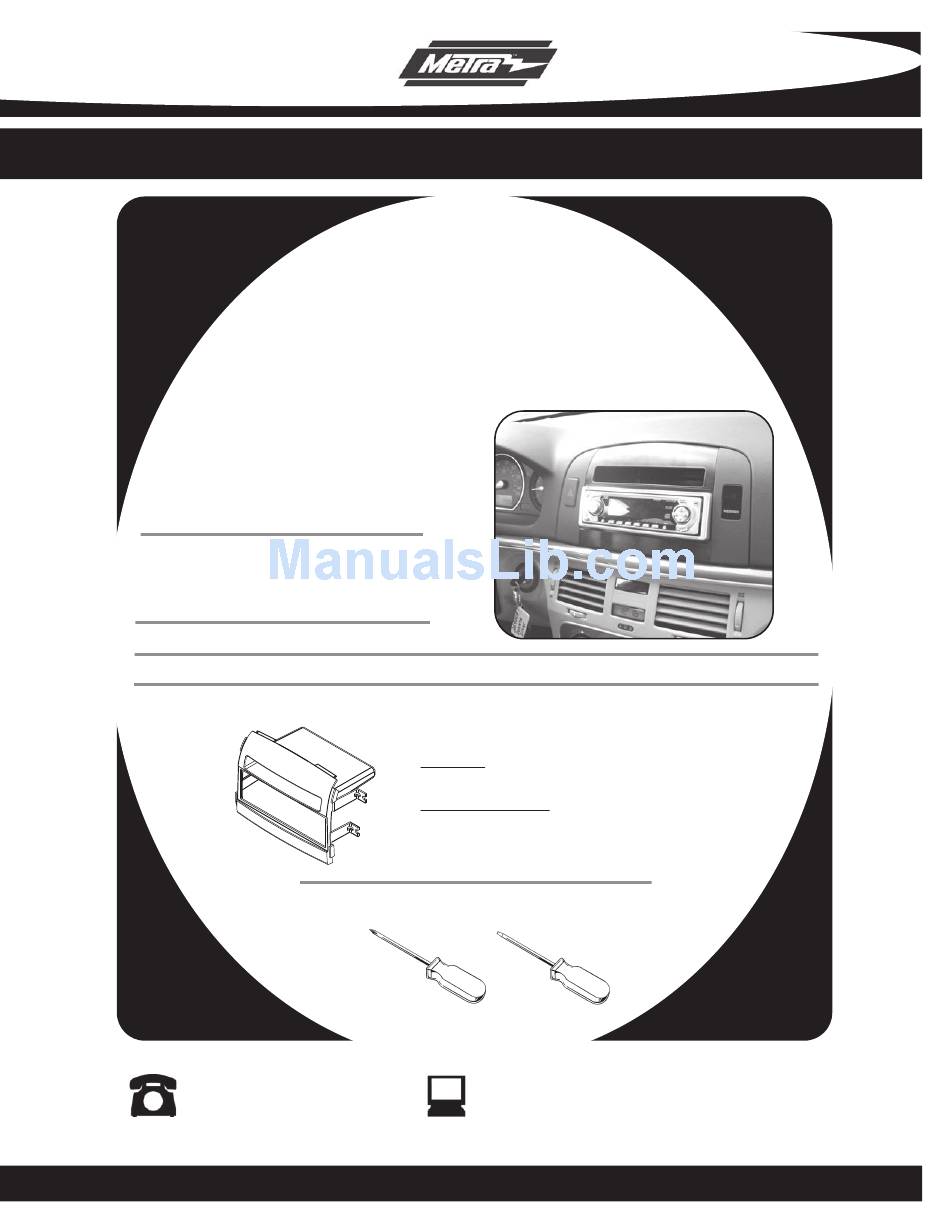

Page 1 INSTALLATION INSTRUCTIONS FOR PART 99-7320 APPLICATIONS Hyundai Sonata 2006-2008 99-7320 KIT FEATURES • DIN head unit provision KIT COMPONENTS A) Radio Housing WIRING AND ANTENNA CONNECTIONS (Sold Separately) Harness: • 70-5520 - Ford harness 2003-up Antenna Adapter: • Not required TOOLS REQUIRED: Phillips Screwdriver •...
Page 2 99-7320 T ABLE OF CONTENTS Dash Disassembly ........1 Kit Assembly .
Page 3 99-7320 DASH DISASSEMBL Y HYUNDAI SONA T A 2006-2008 Disconnect the negative battery terminal to prevent an accidental short circuit. Open glove box and remove (2) Phillips screws from top edge of glove box opening and bottom edge of wood trim below radio. (Figure A) Unclip and remove wood trim from below radio and above glove box.
Page 4 99-7320 KIT ASSEMBL Y DIN HEAD UNIT PROVISION Slide the DIN cage into the Radio Housing and secure by bending the metal locking tabs down. (Figure A) Slide the aftermarket head unit into the cage and secure. (Figure B)
