Note: After changing all kind of IP parameters please always restart the receiver unit.
For this exit the menu, then F3 (UTIL) / F3 (RESET) / F3 (RESET).
F3 (TIME)
Date and time setting (function without password), details in User Manual.
F4 (BACK)
Navigation back with one menu level in receiver menu.

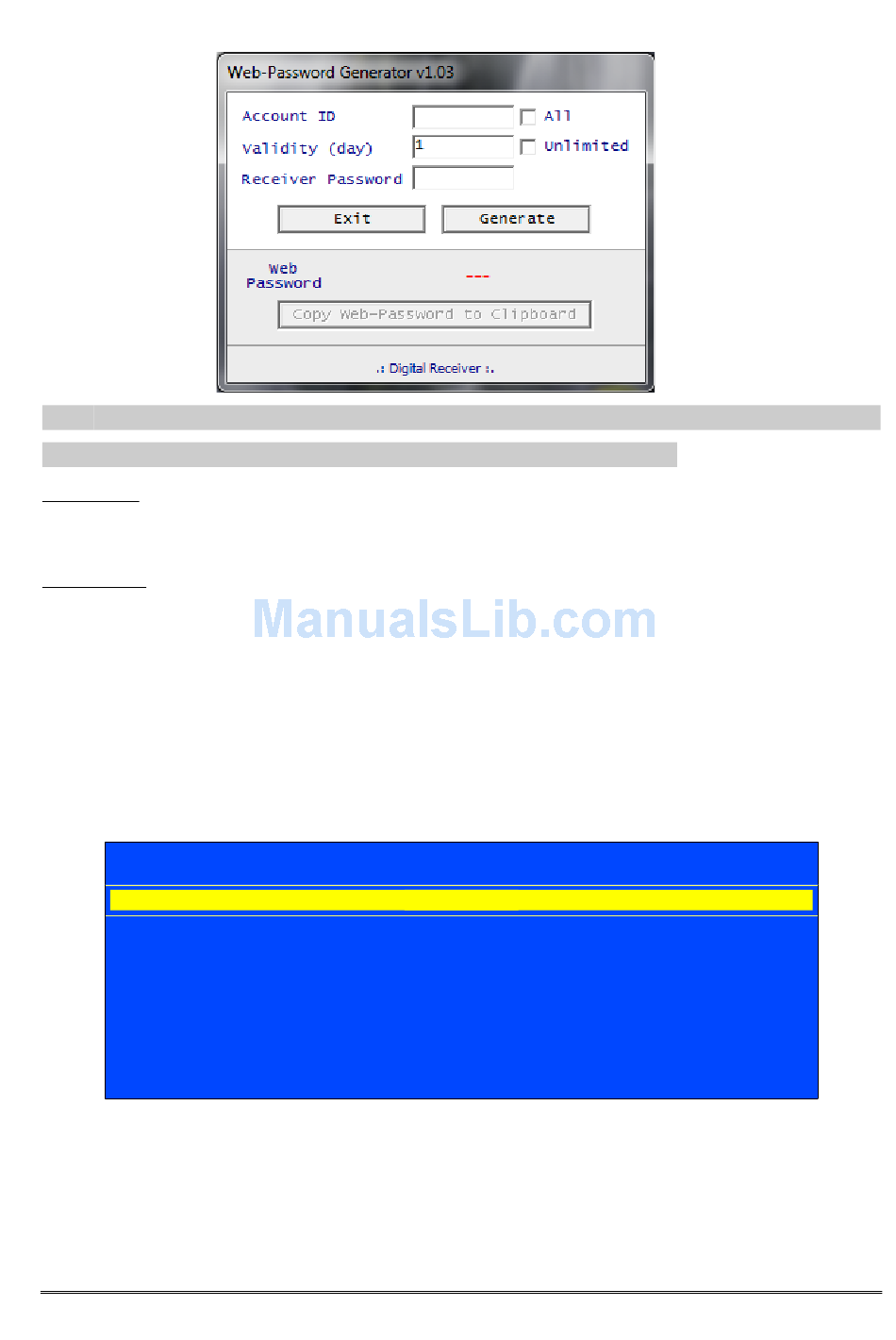

3.3 IP communication status menu

From event list display it is possible to switch to IP communication status menu with
long DISPLAY button push (3 seconds). Lots of IP communication related function can
be checked here. During menu access DISPLAY LED is flashing.
CONSOLE
IP : ON
SCK : 001/255
TCM : 004/255
––––––––––––––––––––––––––––––––––––––––––––––––––––––––––
5451 UPDATE 00005 14AA . .
5451 UPDATE 00005 16A2 x .
The following data can be seen: Receiver LAN IP address – Receive port; Netmask –
Remote programming port; Gateway – Web browser access port; Public IP – WAN
monitoring status. SCK = Opened sockets number, TCM = IP monitored device number.
In appearing events first digits are the client account (5451), then the IP monitoring
period (00005), and at the end there is the event code (14AA).
CPM STATUS
(FC4) 192 . 168 . 000 . 240
255 . 255 . 255 . 000
192 . 168 . 000 . 001
081 . 182 . 170 . 247
VER: CPM2.60.BC06
09999
00023
00080
OK
