Wall-Mount Position - 3Com VCX V7000 Telephone Manual

Attaching and Adjusting the Fixed Support Bracket 123

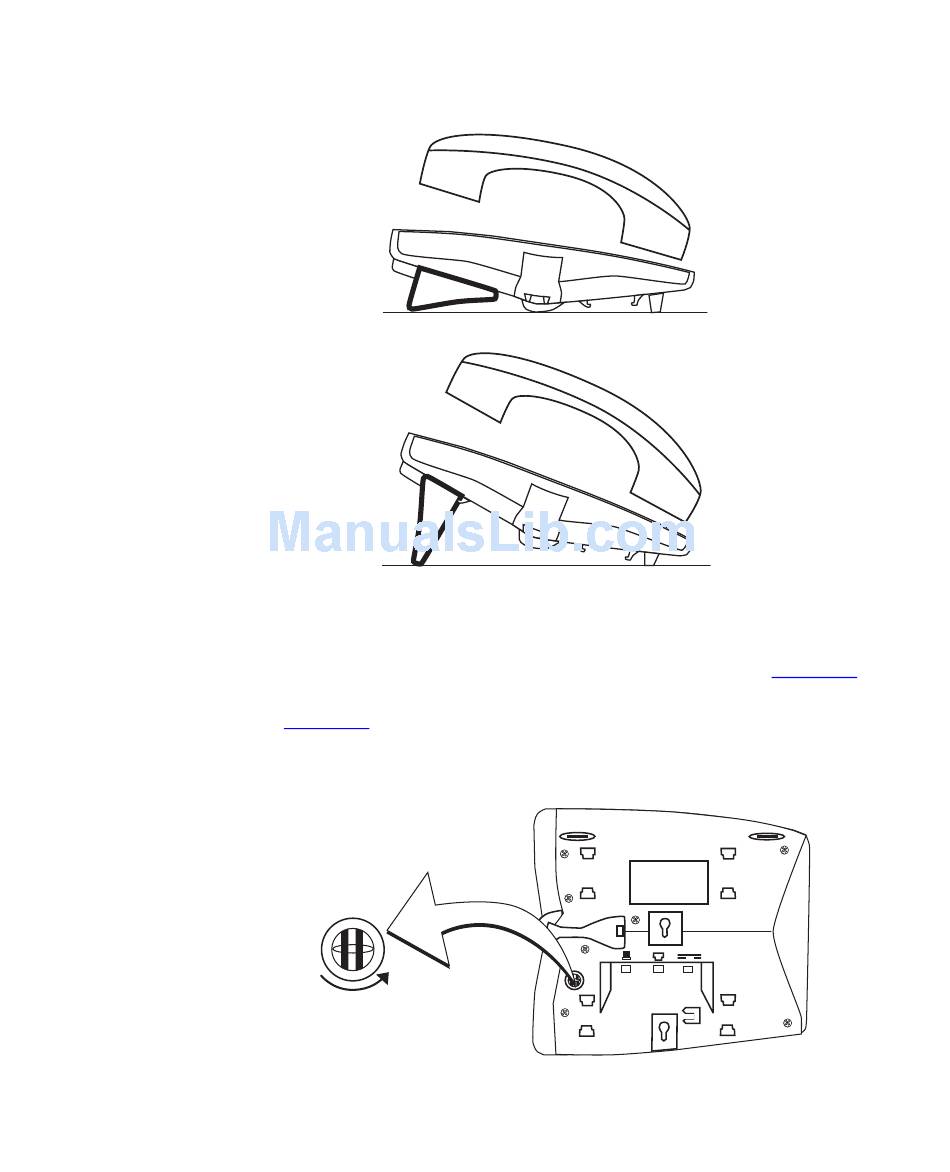

Figure 12 Low-Profile and High-Profile Desktop Positions

Wall-Mount Position

To mount an VCX 2102 telephone on a wall, put the bracket on the
opposite end of the telephone in the low-profile position. Pull and twist
the knob on the underside of the phone 90 degrees (Figure 13) so that
the spring- loaded peg projects out on the top of the phone (Item 1 in
Figure 14).
Figure 13 Knob for the Handset Support Peg
