Attaching and
Adjusting the Fixed
Support Bracket
Low-Profile and
High-Profile Positions
I M
NSTALLATION AND AINTENANCE

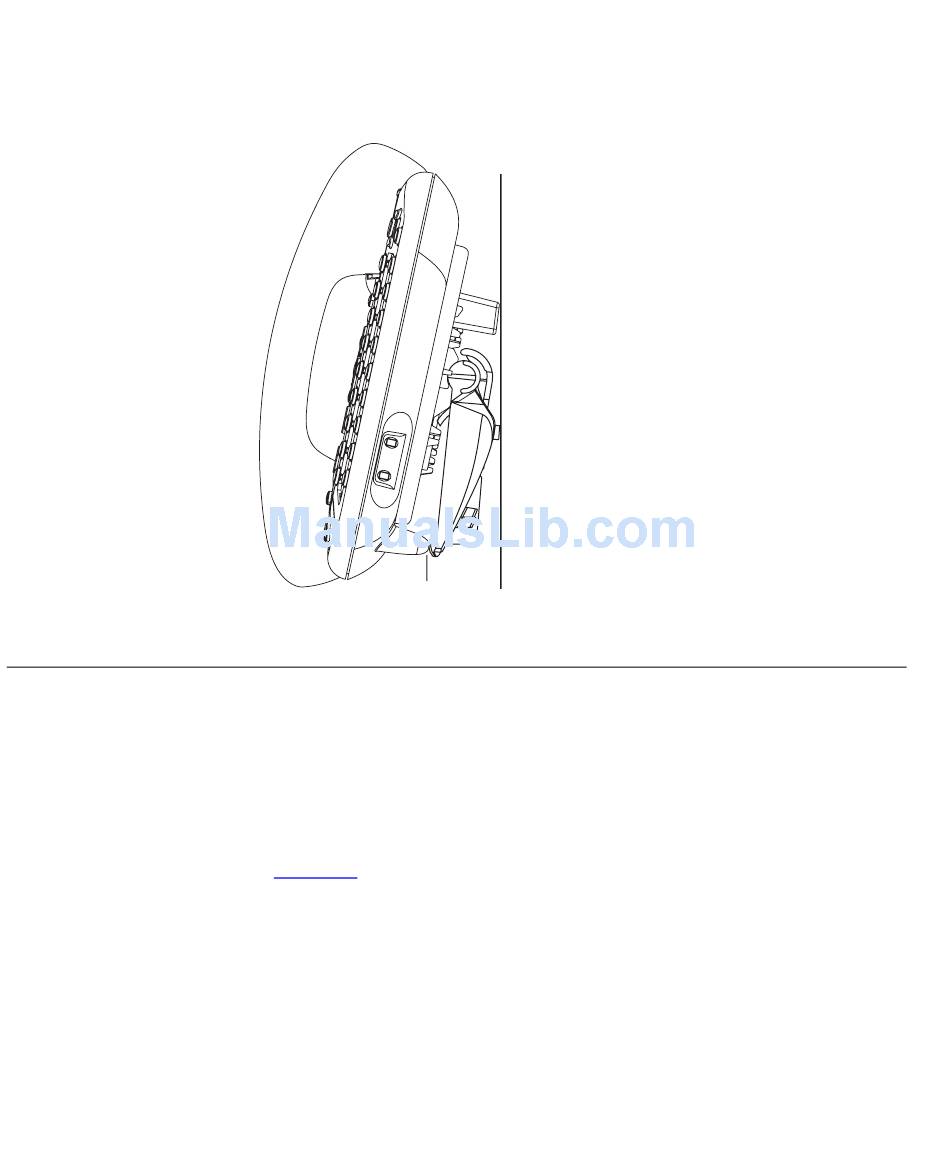

Figure 11 Wall Mounting a 3102 Telephone
1
The fixed support bracket is supplied with the Model 2102 Business
Telephone.
The fixed support bracket can be attached in low profile, high profile, or
wall mount positions. Tabs on the underside of the telephone slip into
slots on the bracket, and the opposite mounting points snap into place.
In Figure 12, the support bracket is outlined to show you how to install
the VCX Telephone in the low-profile and high-profile desktop positions.
When you mount a 3101, 3101SP, 3102,
or 3103 telephone on a wall, attach the
support bracket and adjust it so that the
bottom of the support bracket rests
against the bottom supports on the
telephone, 1.
Safe wall mounting requires 3/4-inch
drywall and 1.5-inch drywall screws.
