AD7091R User Guide
1
1. MENU BAR.
2. CONTROL BUTTONS.
3. DATA CAPTURE DISPLAY.

DESCRIPTION OF MAIN SOFTWARE WINDOW

The following tools allow user control of the different chart
displays. When the software is launched, the main software
window opens (see Figure 13).
The user software panel as shown in Figure 13 has the following
features:
•
Menu bar
•
Control buttons
•
Data capture display
Menu Bar
The menu bar consists of the File and Help menus.
File Menu
Open (Sample Data). Loads previously captured data in TSV
(tab separated values) format for analysis.
Save (Sample Data). Saves captured data in TSV (tab separated
values) format for future analysis.
Print Front Panel Picture. Prints the software window
displayed.

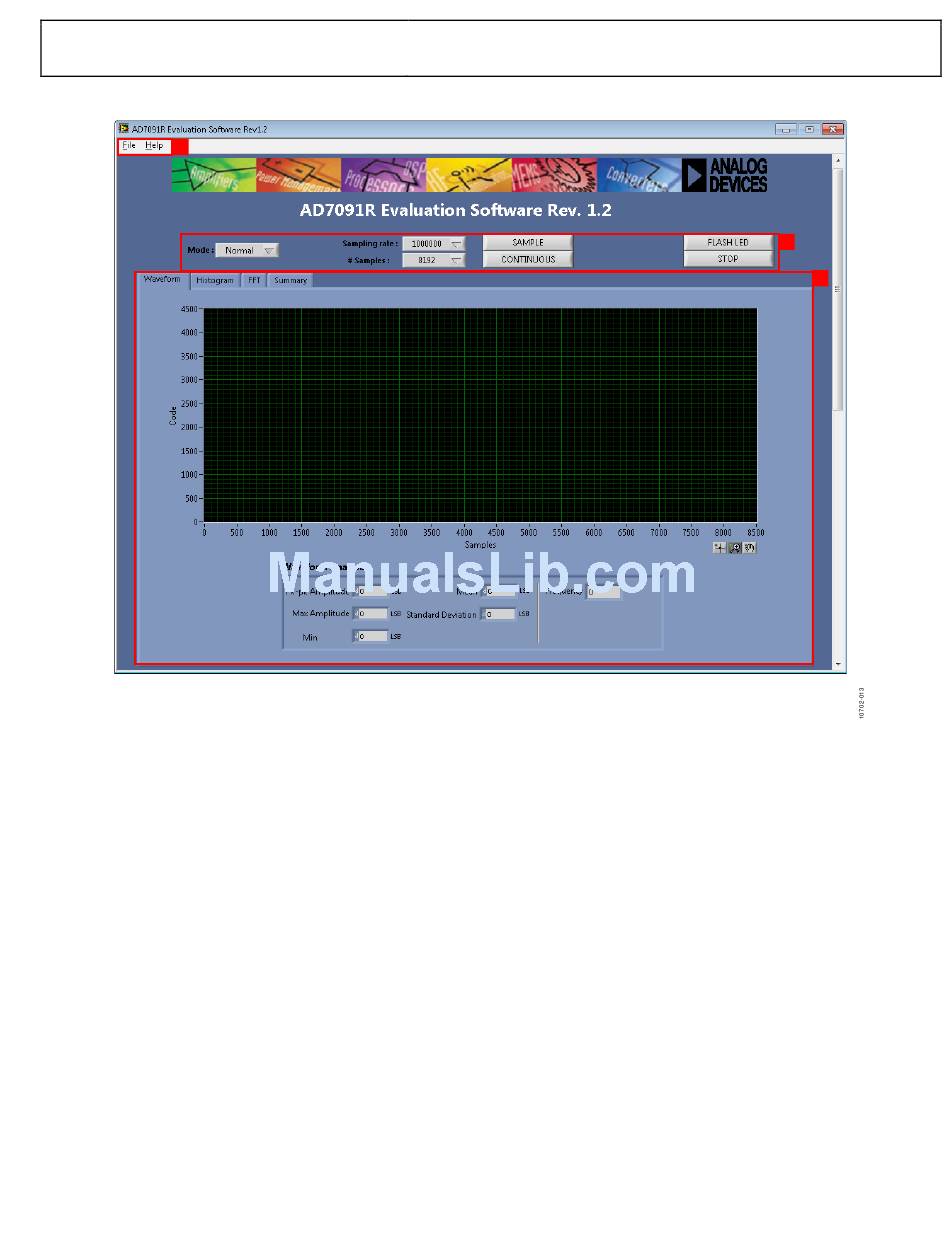

Figure 13. Evaluation Software Main Window
Save As Picture. Saves the front panel as a JPEG file.
Exit. Exits the program.
Help Menu
Open analog.com. Opens www.analog.com.
Control Buttons
The
control buttons, drop-down boxes, and indicators.
Mode. Selects the operating mode of the AD7091R. In Normal
mode, the ADC is ready to acquire samples. In Sleep mode, the
device enters power-down mode when the SAMPLE button is
clicked.
Sampling rate. Selects the sampling rate of the data acquisition.
# Samples. Selects the number of samples to be completed in a
single acquisition.
SAMPLE. Initiates the sampling and readback of the defined
number of measurements.
CONTINUOUS. Performs a continuous capture from the
ADC. Click a second time to stop sampling.
Rev. 0 | Page 9 of 20
EVAL-AD7091RSDZ software includes the following
UG-409
2
3
