SUMMARY TAB

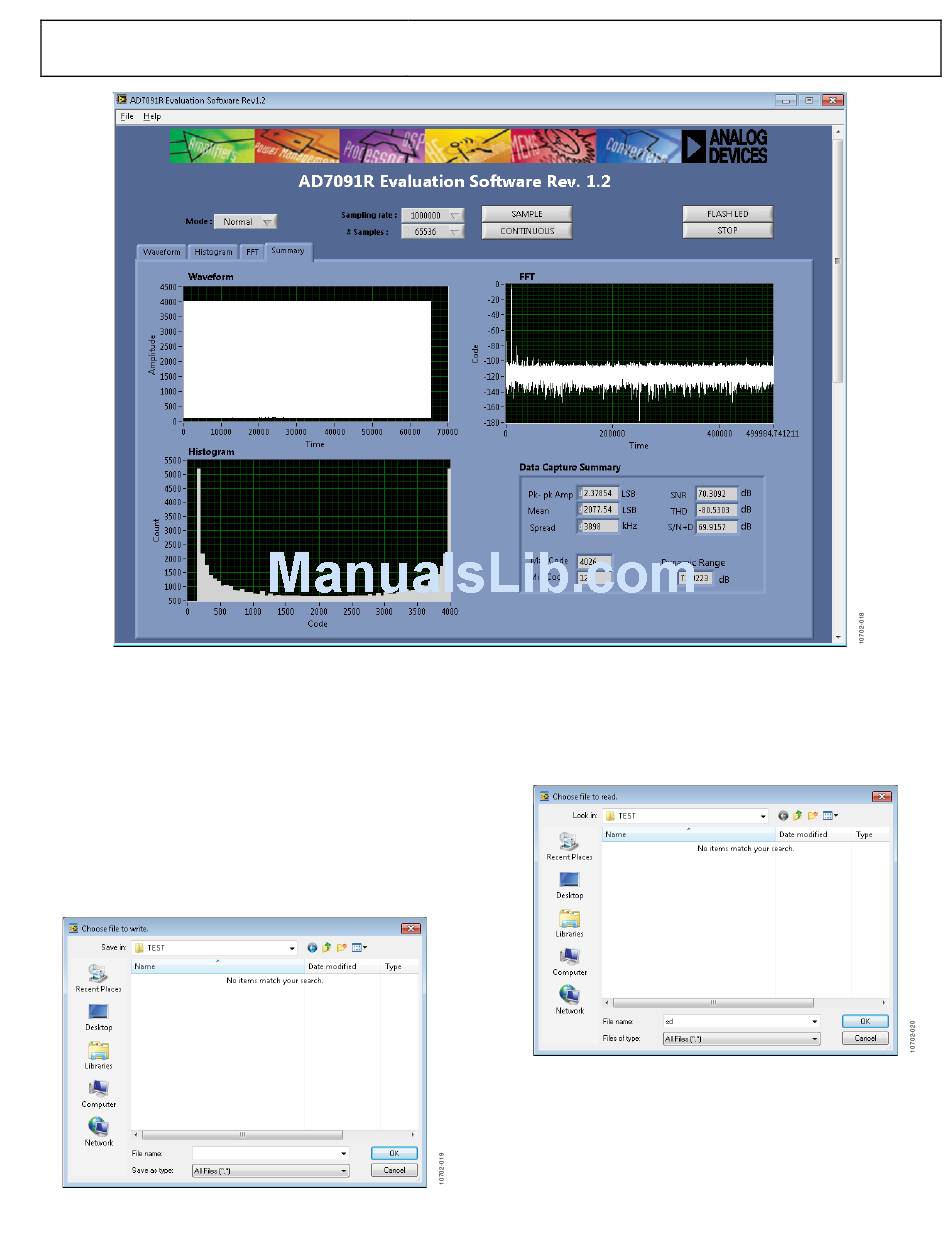

Figure 18 shows the summary tab. The summary tab captures
all the display information and provides them in one panel with
a synopsis of the information, including key performance
parameters such as SNR and THD.

SAVE FILE

The software can save the current captured data for future
analysis.
Go to the File menu, and click Save (Sample Data). The save
dialog box opens. Save to an appropriate folder location.
Figure 19. Save File dialog Box
Figure 18. Summary Tab

OPEN FILE

The software can load captured data for analysis.
Go to the File menu, and click Open (Sample Data). The open
file dialog box opens. Load an appropriate file.
Rev. 0 | Page 13 of 20
Figure 20. Open File Dialog Box
