UG-409
FLASH LED. Causes the orange LED1A on the SDP board to
flash, which can be a useful debugging tool.
STOP. Stops the program.
Data Capture Display
There are four tabs that display the conversion data in different
formats: Waveform, Histogram, FFT, and Summary.
The tools shown in Figure 14 allow user control of the different
chart displays.
1. WAVEFORM ANALYSIS.

WAVEFORM CAPTURE

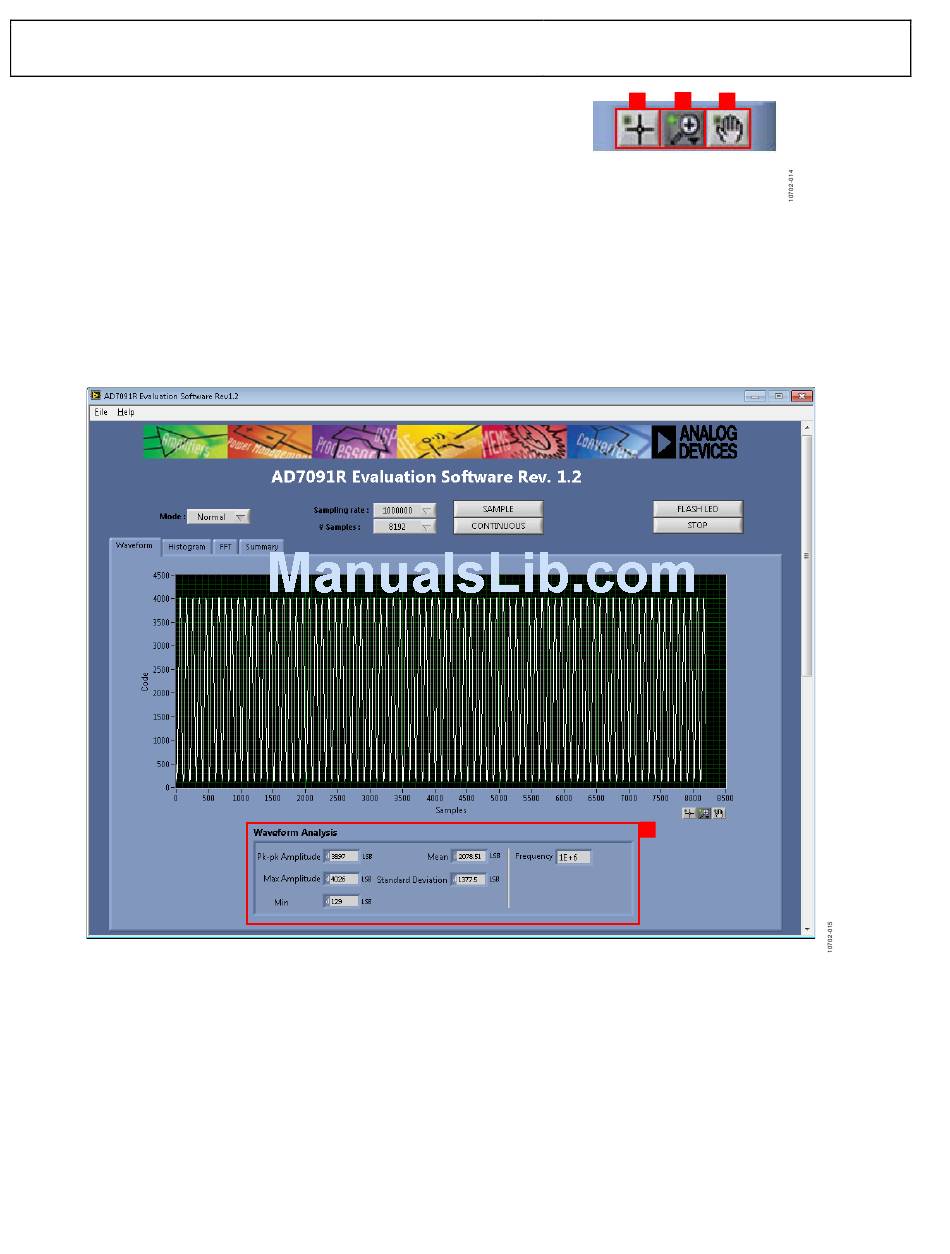

Figure 15 illustrates the waveform capture tab.
The waveform analysis reports the amplitudes recorded
from the captured signal in addition to the frequency of
the signal tone.
Figure 15. Waveform Capture Tab
Rev. 0 | Page 10 of 20
AD7091R User Guide
1 2 3
1. USED FOR CONTROLLING THE
CURSOR IF PRESENT.
2. USED FOR ZOOMING IN AND OUT.
3. USED FOR PLANNING.
Figure 14. Chart Tools
